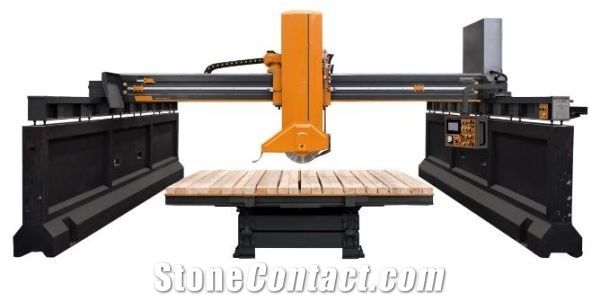

Bridge Granite and Marble Cutting Machine

Name: Bridge Granite and Marble Cutting Machine
Brand: HARBIN QIAN FAN XI FENG MACHINERY CO.LTD
SKU: 1109
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

Usage: Granite, Marble

Supplier

HARBIN QIAN FAN XI FENG MACHINERY CO.LTD

WAMIT

China

Eatablished :Jul 25,2012

Main Product:

Water Jet Cutting Machine, Water Jet Cutting Spare Parts, Laser Machines, CNC Router, Water Jet Cutting Spare Parts, Stone/Marble Mosaic Machines|

Contact supplier

Start Order

You may also like

K 725 5 Axis CNC Bridge Saw with tilting head and 5 interpolated axes

FULL-AUTOMATIC CUTTING AND MILLING MACHINE(350-6)

CNC 5 Axis Stone Cutting And Milling Machine Bridge Saw For Marble

4 Axis CNC Bridge Saw 4+1 Granite And Marble Stone Cutting Machine

Infrared 4 Axis CNC Marble And Granite Bridge Saw Machine

Product Detail
Company Profile

Overview
Components

Machinery Function Features

WAMAI-450/600/700 (Sliding Plate Type) uses PLC system and human-machine Interface, combined with Ultra-high precision rotary encoder to locate and infrared device,uses inverter to control left-right feeding, adjusts the speed according to the stone material.It uses hydraulic lifting system,main spare parts adopt imported good-quality materials.Thus the whole machine is featured as high cutting effciency,high cutting precision, high stability,easy-operating to suit granite and marble with high value and big size.

Technical Data

Parameters	Unit	WAMAI-450	WAMAI-600	WAMAI-700
Max. lifting sroke	mm	220	220	220
Disc diameter	mm	Φ450	Φ600	Φ700
Dimensions of the work table(L×W)	mm	3200×2000	3200×2000	3200×2000
Installed electrical power	kW	21	24	24
Machine height	mm	3100	3300	3300
Worktable rotation range(optional)	°	0°- 90°/0°- 360° (Set up by each 45 degree)	0°- 90°/0°- 360° (Set up by each 45 degree)	0°- 90°/0°- 360° (Set up by each 45 degree)
Machine width	mm	4800	4800	4800
Max. cutting depth	mm	100	100	100
Approximate weight without table	kg	5400	5600	5800
Power of main motor	kW	15	18.5	18.5
Machine length	mm	6000	6000	6000
Worktable turn-over degree	°	0°- 85°	0°- 85°	0°- 85°
Cooling water requirement(1.5 bar min. pressure)	l/min	50	50	50

Components

SLIDE LIFTING SYSTEM
CONTROL PANEL
