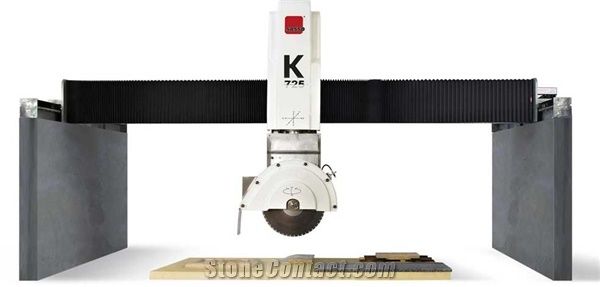

K 725 5 Axis CNC Bridge Saw with tilting head and 5 interpolated axes
FOB Price:
Parameters |
Unit |
K 725 |
Disc diameter |
mm |
400 - 725 |
Disc motor power |
kw |
18 - 56 (s6) |
Max. revolutions of the spindle unit |
r/min |
800 - 6000 |
Bridge transversal stroke(Y axis travel) |
mm |
2500<4300 |
Air consumption |
NL/min |
5 (6bar) |
Approximate weight |
Kg |
4500 |
Head raising/lowering stroke(Z axis travel) |
mm |
500 |
Tools holder head inclination(A axis blade rotation) |
° |
0 - 90 |
Dimensions of the work table(L×W) |
mm |
3500x2000 |
Max number of interpolated axes |
nr |
5 |
Horizontal stroke(X axis travel) |
mm |
3700 |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
50 |
The FSTCAM.Marble Software
