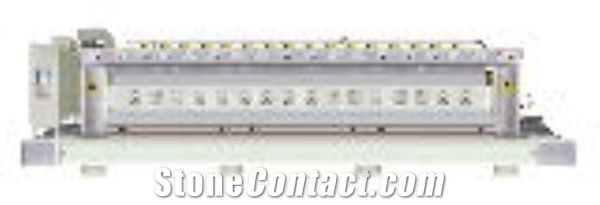

polishing line for granite 16/20 heads

FOB Price:$43500-46500

Type: Stone Factory MachinesStone Surface Processing Machines Slab Polishing Line Machine
Usage: Granite
After-Sale
Lead Time: 45days
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade

Supplier

Eatablished :Dec 24,2010

Main Product:

Bridge Cutting Machine , Profiling Stone Line Machine , Wire Saw Machine , Edge Cutting Machine|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features
The stone continuous grinding and polishing machine is a processing equipment specially used for grinding stone slabs with coarse grinding, medium grinding, fine grinding and polishing grinding head. Because the sheet feeding adopts continuous conveying method, it is called continuous grinding machine, with different Abrasives can be processed into different plates. According to different grinding and polishing materials, they are divided into other materials such as marble, granite and artificial stone. At the same time, due to different processing techniques, there are oscillating grinding heads and fixed grinding discs. High-efficiency grinding and polishing equipment.
Technical Data
Parameters
Unit
JCP-16/20
Total installed electrical power
kW
205
Machine overall width
mm
2200
Slabs max. processable length
mm
3000
Slab polishing speed
m/min
0.8/30
Slabs max. processable thickness
mm
50
Number of polishing heads/honing units
nr
16/20/25
Conveyor belt width
mm
1000
Slabs min. processable thickness
mm
15
Machine overall height
mm
2200
Approx. Weight
Kg
12000
Polishing heads/honing units motor power
kW
7.5
Machine overall length
mm
11000
Slabs max. processable width
mm
1100
Processed Stone Photos
  • Processed Stone Photos

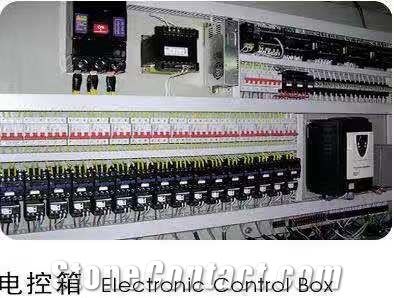

Components
Consumables
