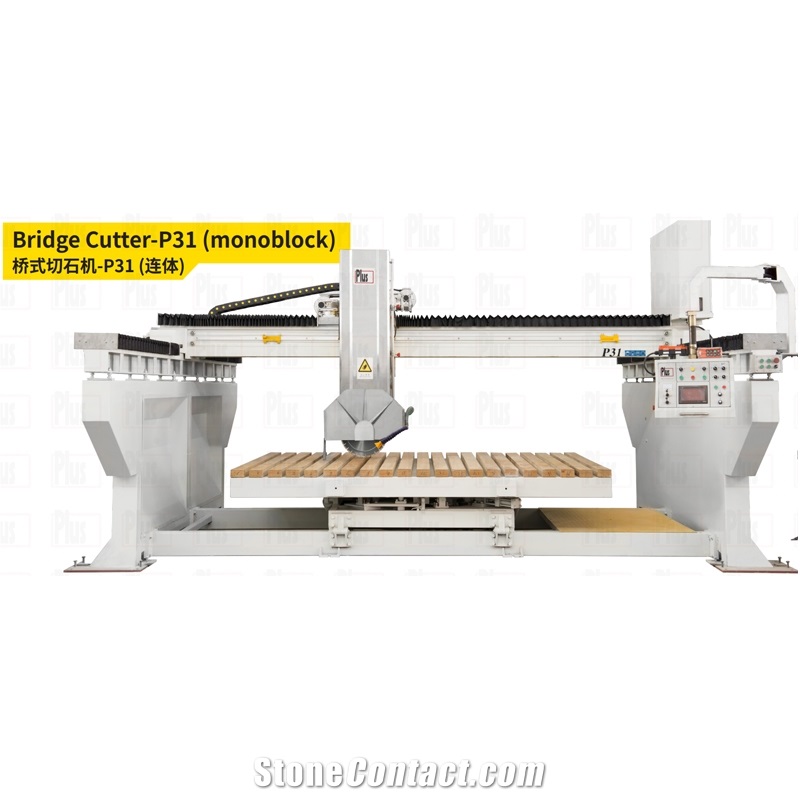

Bridge Cutter-P31 (Monoblock)

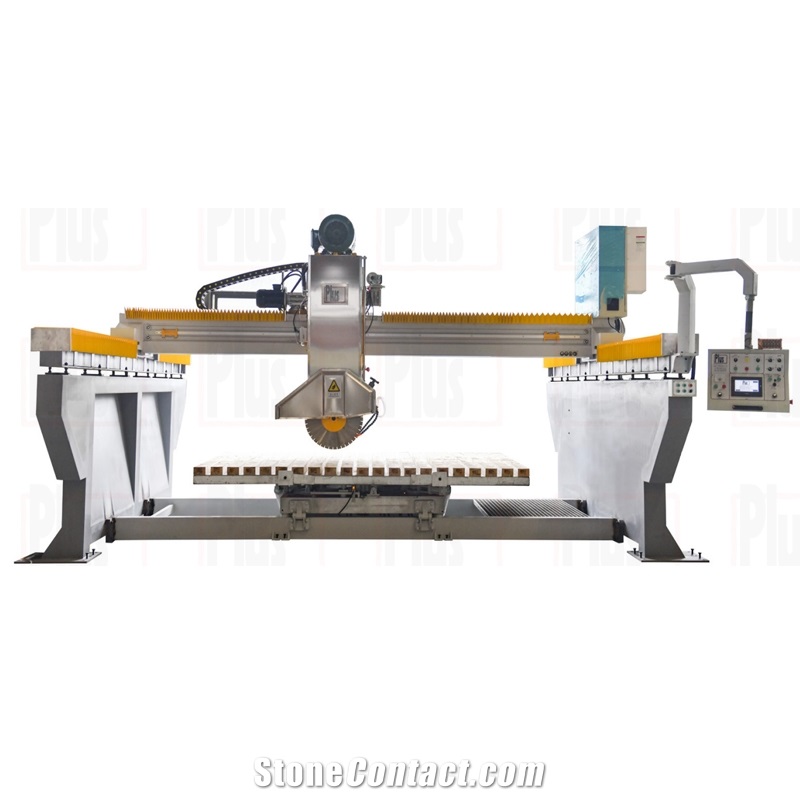

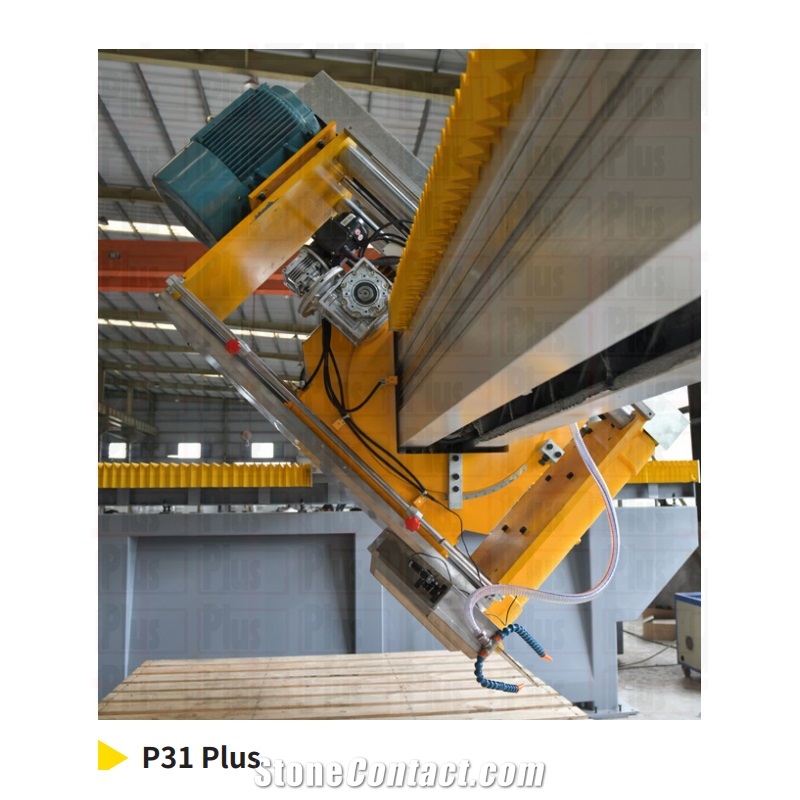

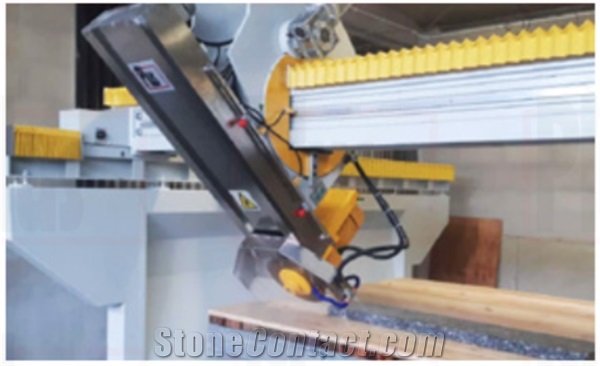

Bridge Cutter – P31 (monoblock) The P31 is one of the top-quality Bridge cutters made in China. Designed specifcally for the stone counter top fabricator, the machine has a 45° tilting blade and 360° rotating table. Blade rpm controlled by an inverter, P31 is able to cut granite, marble, quartz and other types of stones. Also it is excellent at energy saving. Automatic cutting program. Upgraded PLC software and 7'' touch screen ofer easy operation and fast cutting. Pages shown include axis positions and destinations, cutting programs, and alarm diagnostics with every function and push buttons displayed state. The cutting is controlled by an inverter and measured by magnetic railing ruler which gives great accuracy. Automatic hydraulic tilting and rotating table. Tilts up to 85°. The rotation stops at every 45°. It also locks at all position 0-360° while the angle shown on the screen. All the motors are protected by thermal relay or inverter to prevent overload. A mobile switchboard helps to move the blade manually. All the machine parts and components are well manufactured and organized to guarantee the stable performance. On request, the side rails support steel legs can be supplied by Stoneplus. On request, technical support for machines via internet connection is available.
