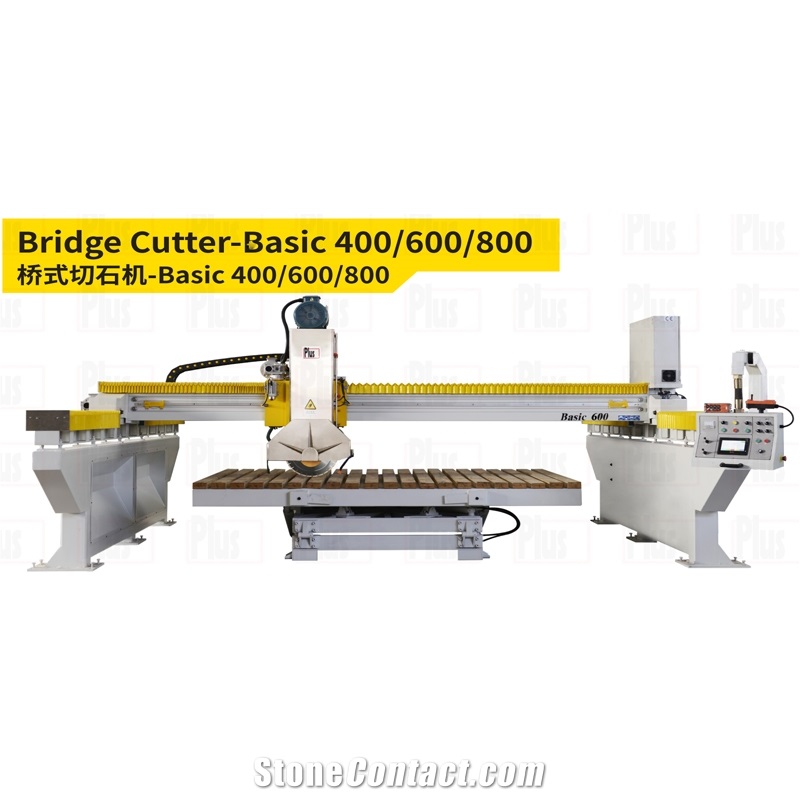

Bridge Cutter-Basic 400/600/800

FOB Price:$13000-18000

Type: Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time: 3 weeks
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Eatablished :Aug 15,2007

Main Product:

Bridge Cutter, Multi Head Polishing Line, Mitre Saw, Block Cutter, CNC Working Center, Waterjet Cutter|

Contact supplier

Start Order

  • Overview
  • Components
Machinery Function Features

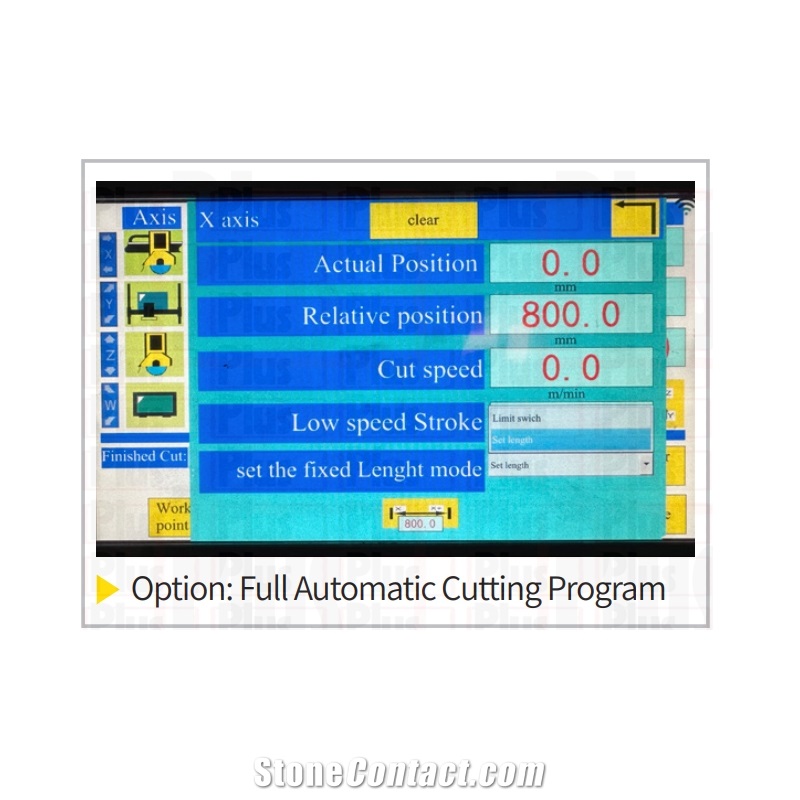

Bridge Cutter – Basic 400/600/800 The Basic is an ideal machine for cut-to-size. Comparing with most of other Chinese machines it has higher quality because of the manufacturing and electric control system. Upgraded PLC software and 7'' touch screen offer easy operation and fast cutting. The electric components are from international brand companies. The cutting is controlled by inverter and measured by magnetic railing ruler which gives great accuracy. Motors are protected by thermal relay to prevent overload. A mobile switchboard helps to move the blade manually. All the machine parts are well manufactured and organized. On request, the Remote Assistance Module can be applied in order to offer online after services in any countries. On request, the side steel legs can be supplied by Stoneplus.

Technical Data
Parameters
Unit
Basic 400
Basic 600
Basic 800
Total power
KW
22
22
25
Diameter of blade
mm
350-400
350-600
600-800
Table dimensions
mm
3200x2000
3200x2000
3200x2000
Table tilting degree
°
0-85
0-85
0-85
Power of disc motor
KW
15
15
18.5
Table rotating degree
°
90
90
90
Machine dimensions
mm
5800/4700/2700 H
5800/4700/2800 H
5800/4700/2900 H
Max cutting size
mm
3300x2000x80
3300x2000x150
3300x2000x260

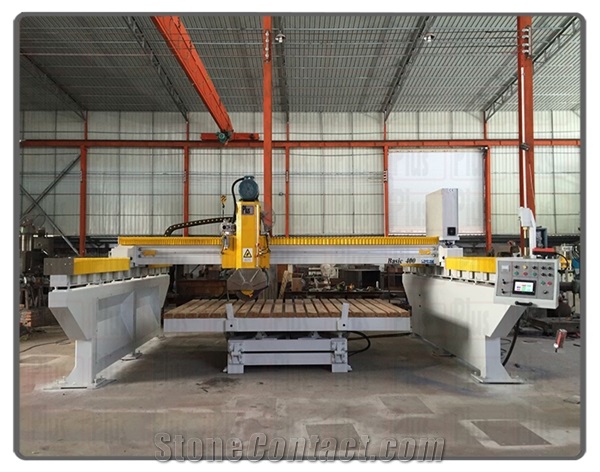

Processed Stone Photos
  • Processed Stone Photos

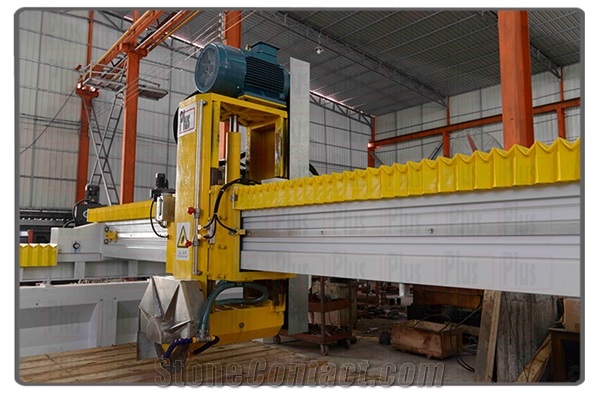

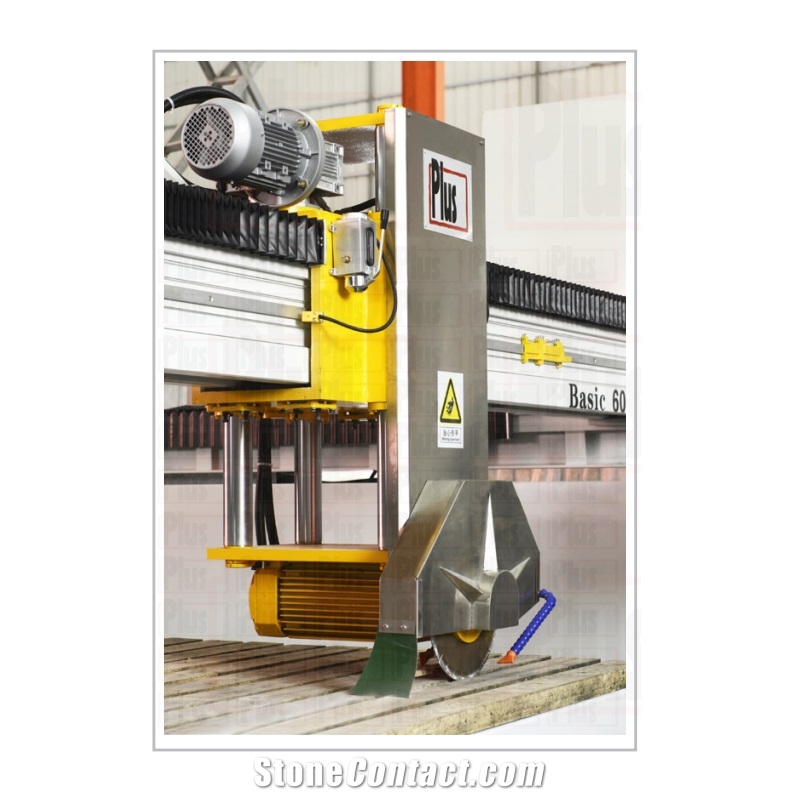

Components
