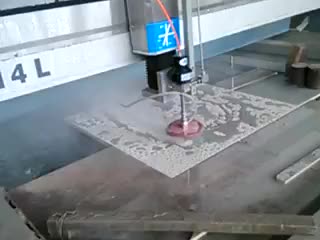

waterjet cutting machine 3axle /5axle
FOB Price:$47000-48000
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble
After-Sale
Lead Time:
30days
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Supplier
Eatablished :Dec 24,2010
Main Product:
Bridge Cutting Machine , Profiling Stone Line Machine , Wire Saw Machine , Edge Cutting Machine|

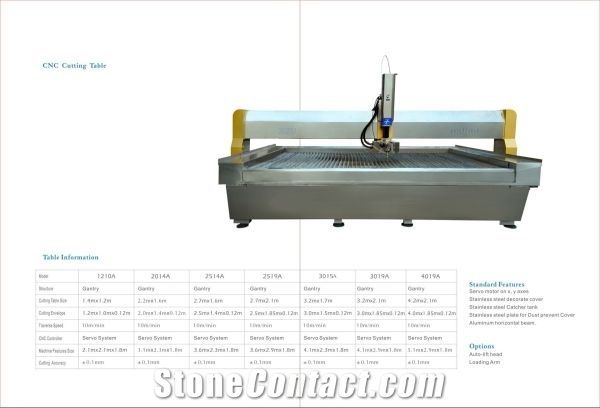

Machinery Function Features
It consists of ultra-high pressure pump, PC controlled CNC machine tool, CNC computer cabinet and so on. Can be used to cut a variety of materials, such as glass, ceramics, stainless steel, aluminum, stone, leather and other soft and hard materials. It has the advantages of fast cutting speed, high precision, narrow slit, smooth cut, no heat deformation, environmental protection and dust-free, and can directly punch and cut the knife at any position.
Technical Data
Parameters |
Unit |
4000C - 1210A |
Standard voltage |
Volt |
380 |
Max. working width |
mm |
1200 |
Y axis stroke |
mm |
1000 |
Machine overall width |
mm |
2100 |
Sound pressure level |
dbA |
400 |
Water requirement |
l/min |
3.7 |
Max. working length |
mm |
1400 |
Number of axes |
nr |
3 |
Shaping Tool max. diameter |
mm |
0.33 |
X axis stroke |
mm |
1200 |
Z axis stroke |
mm |
120 |
Machine overall height |
mm |
1800 |
Max. working thickness |
mm |
120 |
Dimensions of the work table (length x width) |
mm |
1400X1200 |
Machine overall length |
mm |
2100 |
Total Power required |
kW |
37 |
X axis rapid speed |
m/min |
10 |
Processed Stone Photos

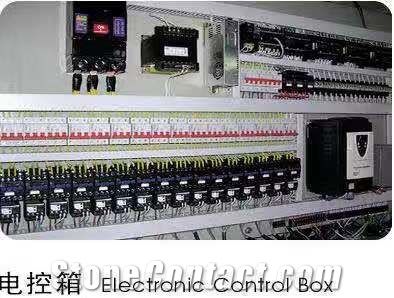

Components
Consumables
