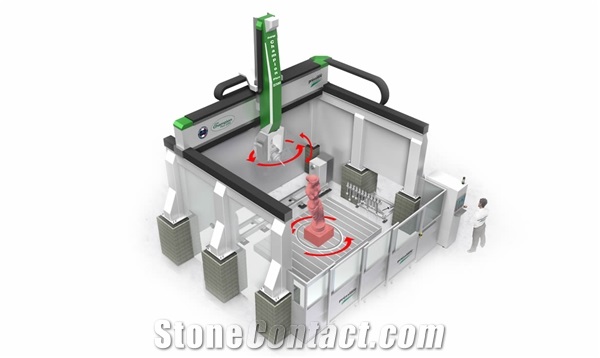

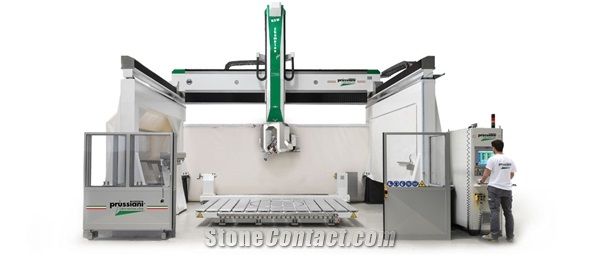

New Champion Plus 2200 CNC Carving, Cutting, Milling Machines
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:3 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Supplier
Eatablished :Dec 28,1991
Main Product:
Stone Machinery, CNC Waterjet Machine, Polishing Machine, CNC Bridge Saw, 5 Axes Milling Machines, CNC Working Centers|
Machinery Function Features
automatic centralized greased lubrication. In case of anomalies the machine stops;
watertight IP 55 electric cabinet with safety thermostat;
sound power level: 80 ÷ 90 dB(A).
Technical Data
Parameters |
Unit |
New Champion Plus 2200 |
Tool-holder spindle motor torque |
N·m |
251 |
X axis rapid speed |
m/min |
65 |
Machine overall height |
mm |
7250 |
Tool-holder spindle rotation speed |
r/min |
0 ÷ 8.000 |
Machine overall length |
mm |
8200 |
Max. diameter of the blade |
mm |
1450 |
Z axis rapid speed |
m/min |
11,4 |
Tool-holder spindle motor power |
kw |
44,1 |
A axis rotating (degrees) |
° |
-185° + 185° (370°) |
Total Power required |
kw |
52 |
Approx. Weight |
Kg |
13000 |
Sound pressure level |
dB |
80 ÷ 90 |
Y axis stroke |
mm |
3500 |
Y axis rapid speed |
m/min |
65 |
C axis inclination (degrees) |
° |
-120° ÷ 120° |
Z axis stroke |
mm |
2200 |
Machine overall width |
mm |
6300 |
X axis stroke |
mm |
4000 |
