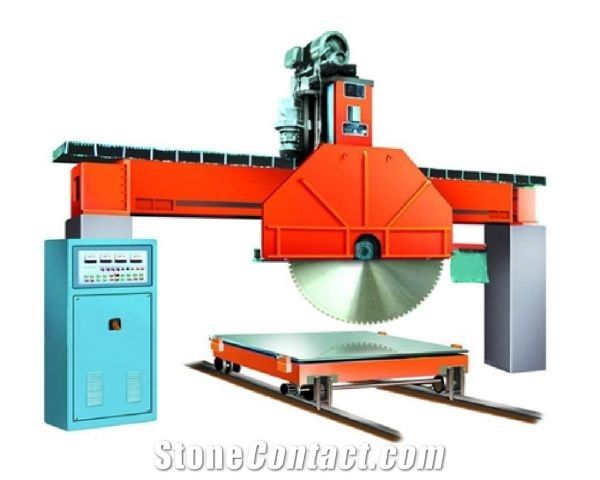

MODEL QJ-1800/2200/2500 BRIDGE DISC SAW
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage:
Granite, Marble
Supplier
Eatablished :May 19,2012
Main Product:
Block Cutter, Stone Slab Cutting Machine, Stone Slab Grinding, Polishing Machine, Profile Cutting Machine With Computer|
You may also like
Machinery Function Features
This machine, fitted with diamond blade and high-speed cutting technology, is suitable for cutting marble and granite. It is suitable for cutting granite or marble slabs over 10mm in thickness.
Technical Data
Parameters |
Unit |
QJ1800 |
QJ2200 |
QJ2500 |
Rotation speed of main shaft |
rpm |
316 (Φ1600mm) |
239(Ф2200mm) |
209(Ф2500mm) |
Disc cutting speed ( X axis) |
mt/min |
0～2 |
0～2 |
0～2 |
Maximum block height |
mm |
1500 |
1500 |
1500 |
Installed power |
kW |
33 |
40 |
40 |
Disc diameter |
mm |
Φ2000 |
Φ2200 |
Φ2500 |
Machine length ( front ) |
mm |
7300 |
7800 |
7800 |
Maximum block length |
mm |
3000 |
3300 |
3300 |
Cooling water (1.5 bar pressure) |
lt/min |
100 |
100 |
100 |
Machine height |
mm |
5400 |
5410 |
6030 |
Maximum block width |
mm |
1600 |
1600 |
1600 |
Approximate Weight |
kg |
7000 |
7200 |
7400 |
Disch vertical stroke ( Z axis) |
mm |
1050 |
1050 |
1300 |
Machine width |
mm |
5160 |
5150 |
5230 |
Bridge transversal stroke (Y axis) |
mm |
3200 |
3500 |
3500 |
Dimensions of block conveying truck (L×W) |
mm |
1720×1720 |
1720×1720 |
1720×1720 |
