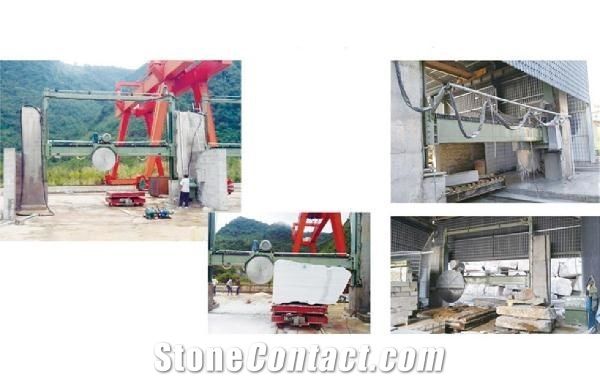

Model LMJ2200 Gantry Large Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Block Cutting MachinesGiant Disc Bridge Saw Machine
Usage:
Marble
Supplier
Eatablished :May 19,2012
Main Product:
Block Cutter, Stone Slab Cutting Machine, Stone Slab Grinding, Polishing Machine, Profile Cutting Machine With Computer|
You may also like
Machinery Function Features
It is fitted with diamond cutters and high-speed grinding technology,is suitable for cutting marble block.
Technical Data
Parameters |
Unit |
LMJ2200 |
Approximate Weight |
kg |
9000 |
Machine height |
mm |
6030 |
Disc diameter |
mm |
Ф2200 |
Disc motor power |
kW |
55 |
Blade elevation stroke |
mm |
2500 |
Machine length ( front ) |
mm |
9290 |
Installed power |
kW |
66 |
Machine width |
mm |
7000 |
Feeding motor power |
kW |
3 |
Elevation motor power |
kW |
3 |
Maximum block height |
mm |
2800 |
Maximum block width |
mm |
2500 |
Maximum block length |
mm |
3500 |
Disc cutting speed ( X axis) |
mt/min |
0~2 |
Cooling water (1.5 bar pressure) |
lt/min |
>100 |
Blade longitudinal stroke |
mm |
3500 |
