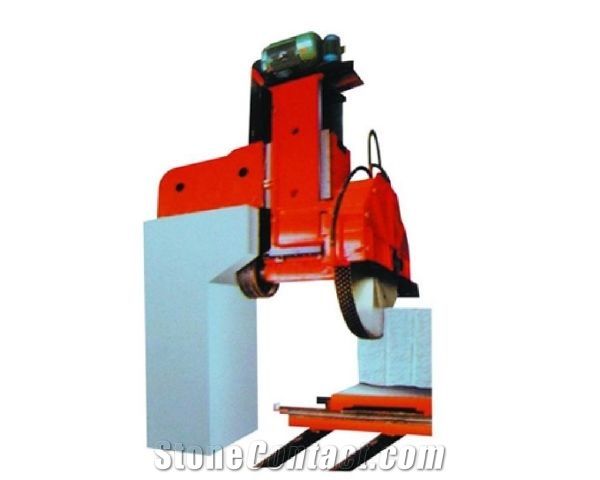

MODEL DZJ-1600/2200 SINGLE-ARM BUILT-UP SAW

Name: MODEL DZJ-1600/2200 SINGLE-ARM BUILT-UP SAW
Brand: Laizhou Shanfa Stone Machinery Co.,Ltd
SKU: 1158
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Block Cutting MachinesSingle Arm Block Cutting Machine

Usage: Granite, Marble

Supplier

Laizhou Shanfa Stone Machinery Co.,Ltd

Mountain tigher

China

Eatablished :May 19,2012

Main Product:

Block Cutter, Stone Slab Cutting Machine, Stone Slab Grinding, Polishing Machine, Profile Cutting Machine With Computer|

Contact supplier

Start Order

You may also like

Single Arm Four Pillars Hydraulic Block Cutter - DFD-D12/16/18/22

Single Arm Multi-Blades Stone Cutting Machine

Stone Block Cutting Machine

Hydraulic Four-Cylinder Multi-Blades Stone Cutter-Single Arm Block Cutting Machine

Fully Automatic Stone Cutting Machine

Product Detail
Company Profile

Overview

Machinery Function Features

This machine, fitted with diamond cutters and high-speed grinding technology, is suitable for cutting marble and granite.It is suitable for cutting granite slabs over 10mm in thickness.

Technical Data

Parameters	Unit	DZJ1600	DZJ2200
Machine overall width	mm	4860	4860
Total Weight	Kg	8600	9400
Worktable size	mm	1800×1300	1800×1300
Max. vertical stroke-lifting stroke	mm	1000	1200
Max. No. of blades	pcs	10	6
Maximal transverse stroke for truck	mm	1400	1400
Water consumption	m3/h	27	27
Gross power	kW	49.4	49.4
Maximal longitudinal stroke for truck	mm	4000	4000
Machine overall length	mm	6800	6800
Max. diameter of blade	mm	Ф1600	Ф2200
Block max. length-processing size	mm	3500	3500
Block max. height-processing size	mm	1350	1350
Machine overall height	mm	6000	6200
Block max. Width-processing size	mm	1400	1400
