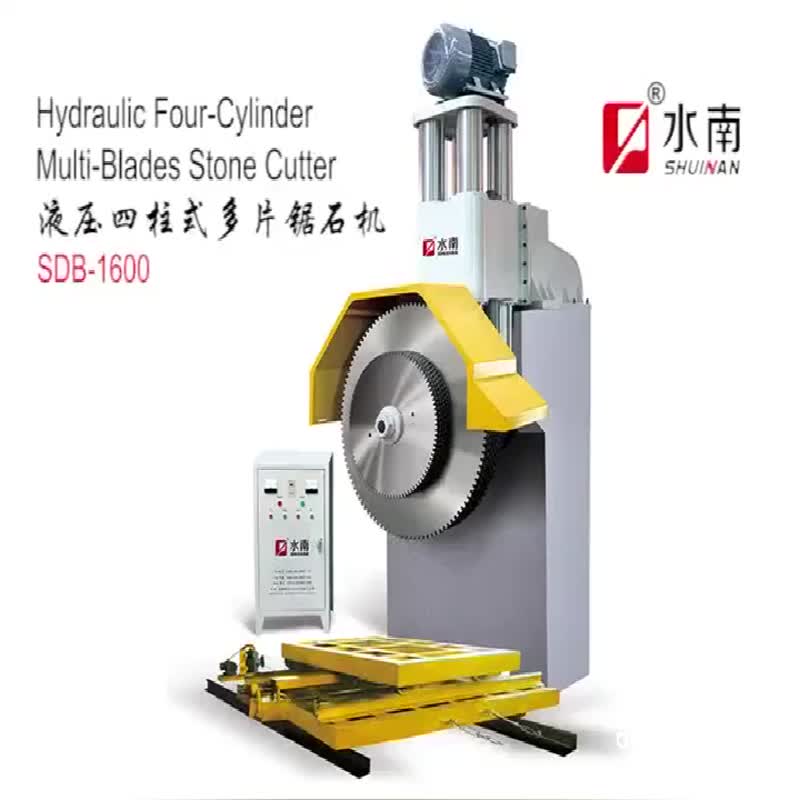

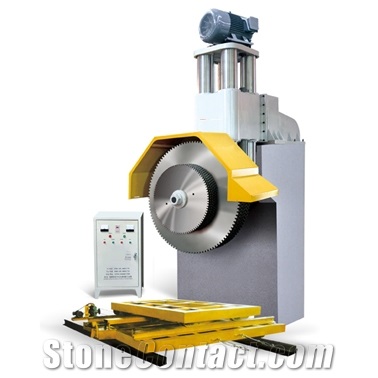

Hydraulic Four-Cylinder Multi-Blades Stone Cutter-Single Arm Block Cutting Machine

Name: Hydraulic Four-Cylinder Multi-Blades Stone Cutter-Single Arm Block Cutting Machine
Brand: Xiamen Asian Stone Imp.& Exp. Co.,Ltd.
SKU: 5120
Price: 12000 USD
Availability: InStock

FOB Price:$12000-17000

Type: Stone Factory MachinesStone Block Cutting MachinesSingle Arm Block Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 30 DAYS

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Trade Terms

Delivery Details: FOB,CFR,CIF,DDP,DDU

Payment :

Supplier

Xiamen Asian Stone Imp.& Exp. Co.,Ltd.

ASIAN STONE

China level 14YR

Eatablished :Jun 17,2006

Main Product:

Countertops, Benchtops, Worktops, Slabs, Tiles, Tombstones|

Contact supplier

Start Order

You may also like

SDB Hydraulic Four-Cylinder Multi-Blades Stone Cutter

Single Arm Four Pillars Hydraulic Block Cutter - DFD-D12/16/18/22

Stone Block Cutting Machine

Multi-Blade Hydraulic Stone Block Cutter

Fully Automatic Stone Cutting Machine

Product Detail
Company Profile

Overview
Components
Video
Trade Terms
Customer Case

Machinery Function Features

1. Fully sealed four-cylinder guide rail is used for rising and falling system, which makes the whole structure more stable. 2. Traditional screw lift is replaced by hydraulic lift, which reduces mechanical wear, maintenance costs and time and lowers production costs, and keeps the machine in the best working stable for a long time. 3. Cylinder Trolley to solve all the problems of traditional reducer traction, which leads to stable and reliable operation and long service life, needn 't regular maintenance. 4. It can be equipped with electric split trolleys according to actual needs

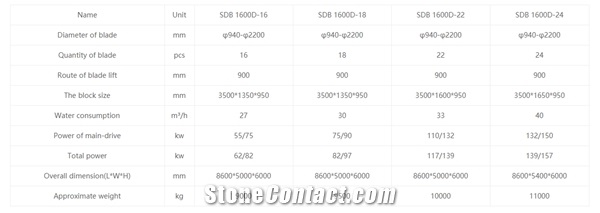

Technical Data

Parameters	Unit	SDB 1600D-16	SDB 1600D-18	SDB 1600D-22	SDB 1600D-24
the block size	mm	35001350950	35001350950	35001600950	35001600950
Water consumption	M3/H	27	30	33	40
Overall dimension(LWH)	mm	860050006000	860050006000	860050006000	860050006000
Total power	kw	62/82	82/97	117/139	139/157
Power of main-drive	kw	55/75	75/90	110/132	132/150
Quantity of blade	pcs	16	18	22	24
Diameter of blade	mm	940-2200	940-2200	940-2200	940-2200
Route of blade lift	mm	900	900	900	900
Approximate weight	kg	9500	9500	10000	10000

Software

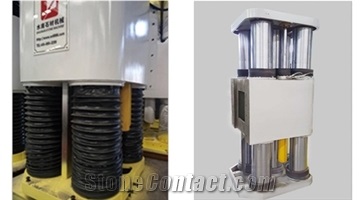

1. Fully sealed four-cylinder guide rail is used for rising and falling system, which makes the whole structure more stable.
2. Traditional screw lift is replaced by hydraulic lift, which reduces mechanical wear, maintenance costs and time and lowers production costs, and keeps the machine in the best working stable for a long time.
3. Cylinder Trolley to solve all the problems of traditional reducer traction, which leads to stable and reliable operation and long service life, needn 't regular maintenance.
4. It can be equipped with electric split trolleys according to actual needs

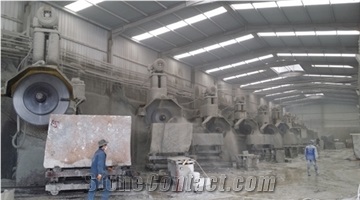

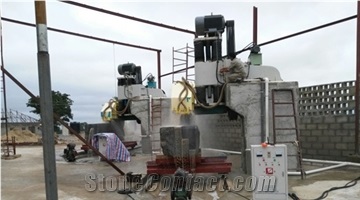

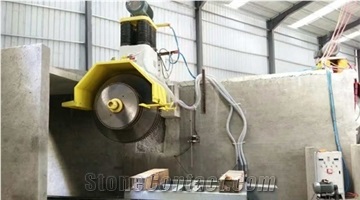

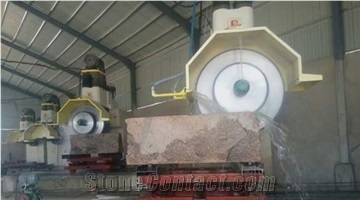

Work Example

1. Fully sealed four-cylinder guide rail is used for rising and falling system, which makes the whole structure more stable.
2. Traditional screw lift is replaced by hydraulic lift, which reduces mechanical wear, maintenance costs and time and lowers production costs, and keeps the machine in the best working stable for a long time.
3. Cylinder Trolley to solve all the problems of traditional reducer traction, which leads to stable and reliable operation and long service life, needn 't regular maintenance.
4. It can be equipped with electric split trolleys according to actual needs

Processed Stone Photos
