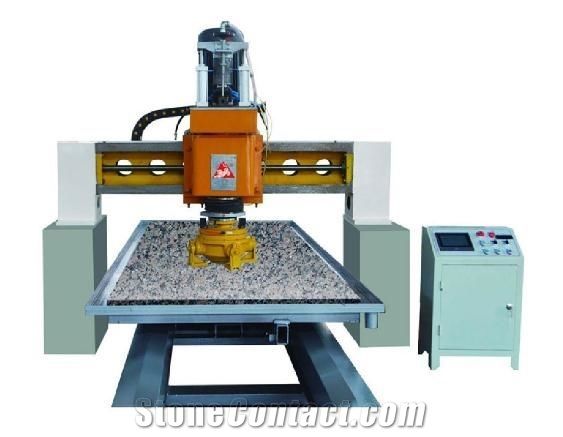

BRIDGE TYPE SINGLE-HEAD GRINDING AND POLISHING MACHINE
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Single Head Polishing Machine
Usage:
Granite, Marble
Supplier
Eatablished :May 19,2012
Main Product:
Block Cutter, Stone Slab Cutting Machine, Stone Slab Grinding, Polishing Machine, Profile Cutting Machine With Computer|
Machinery Function Features
This machine is mainly applied to grind and polish marble and granite slabs. It is equipped with the most advanced pendulum grinding head, whose elevation is pneumatically controlled. Lateral and longitudinal movement of grinding head is accomplished by reducer of motor. Controlled automatically by PC programmer, this machine features reliable performance, stable, operation and high cut off efficiency.
Technical Data
Parameters |
Unit |
QM300X110 |
QM300X130 |
Machine overall width |
mm |
2025 |
2225 |
Slabs max. processable width |
mm |
1100 |
1300 |
Slabs max. processable thickness |
mm |
80 |
80 |
Approx. Weight |
Kg |
3000 |
3200 |
Machine overall height |
mm |
2100 |
2100 |
Number of polishing head |
nr |
1 |
1 |
Installed total power |
kW |
12.5 |
12.5 |
Slabs max. processable length |
mm |
3000 |
3000 |
Compressed air requirement |
NL/min |
100 |
100 |
Machine overall length |
mm |
5000 |
5000 |
