DTQ-450/600/700/800 infrared bridge cutting machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble
After-Sale
Warranty:6 Months
Supplier
Eatablished :Mar 24,2003
Main Product:
Multiple Blades Brige Stone Cutting Machine, 3D CNC Stone Cutting Machiine, Infra Red Stone Cutting Machine, Stone Coping Machine, Multiple Autoo Slab Polishing Machine|
Machinery Function Features
The DTQ-450/600/700/800 bridge type infrared stone cutter is operated by computer so that it can work automatically. The parts and accessories of which are made of high quality steel. The lifting moving driving by four lead pillars. The electronic controlling cabinet comprise of imported, advanced and precisely assembled electrical components.
Technical Data
Parameters |
Unit |
DTQ-450 |
DTQ-600 |
DTQ-700 |
DTQ-800 |
Main motor power |
kW |
15 |
18.5 |
18.5 |
18.5 |
Working table rotating angle |
° |
0-90/0-360 |
0-90/0-360 |
0-90/0-360 |
0-90/0-360 |
Blade diameter |
mm |
300-450 |
400-600 |
400-700 |
400-800 |
Machine height |
mm |
2600 |
2800 |
3150 |
3300 |
Cooling water requirement(1.5 bar min. pressure) |
l/min |
58.3 |
58.3 |
58.3 |
58.3 |
Working table tilting angle |
° |
0-85 |
0-85 |
0-85 |
0-85 |
Approximate weight without table |
kg |
8674 |
9161 |
10151 |
10650 |
Machine length |
mm |
6000 |
6000 |
6000 |
6000 |
Working table dimensions(L×W) |
mm |
3200*2000 |
3200*2000 |
3200*2000 |
3200*2000 |
Machine width |
mm |
4800 |
4800 |
4800 |
4800 |
Max. working dimensions(L×W×H) |
mm |
3200*2000*100 |
3200*2000*175 |
3200*2000*225 |
3200*2000*275 |

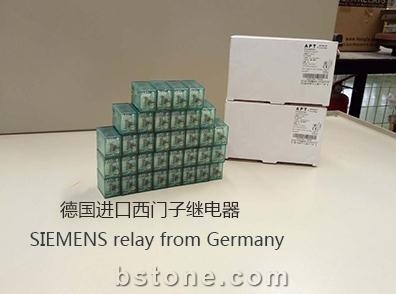

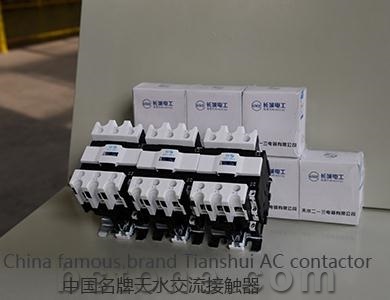

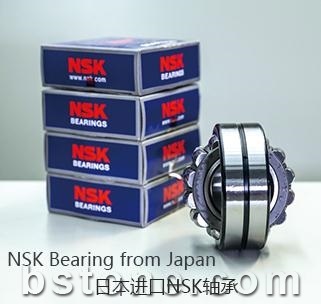

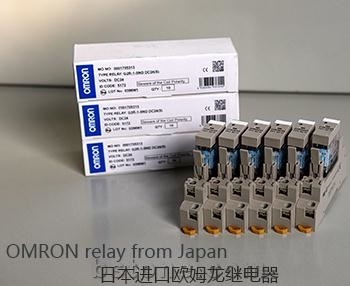

Components
