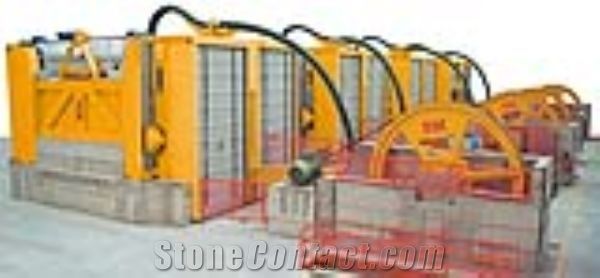

Grizzly Super multiblade gang saw for granite blocks

Name: Grizzly Super multiblade gang saw for granite blocks
Brand: BM Officine Meccaniche S.r.l.
SKU: 1190
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Block Cutting MachinesMulti Blade Gang Saw

Usage: Granite, Basalt, Quartzite

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Online software upgrade, Regular guidance & maintenance

Supplier

BM Officine Meccaniche S.r.l.

Italy

Eatablished :Dec 30,1966

Main Product:

Gang Saws, Gang Saws For Sawing Marble, Wire Saw Machines|

Contact supplier

Start Order

You may also like

Multi Blade Gang Saw Machine For Marble

Ultra Thin Wire Saw Machine-Roller Grooving Machine

Multi Blade-Diamon Gang Saw Block Cutting Machine

Battle-Proven Multi Blade Gang Saw For Marble Block Cutting

TJBM Marble Multi Blade Gang Saw

Product Detail
Company Profile

Overview

Machinery Function Features

Grizzly Super multiblade gang saw for granite blocks Traditional multiblade gang saw for granite blocks cutting, using steel blades and abrasive steel shots. The cutting speed is automatically controlled by the PLC, which determines the component percentages in the mix (slag, water, lime, granite dust) and keeps them constant

Technical Data

Parameters	Unit	Grizzly Super1	Grizzly Super2	Grizzly Super3	Grizzly Super4	Grizzly Super5	Grizzly Super6	Grizzly Super7	Grizzly Super8

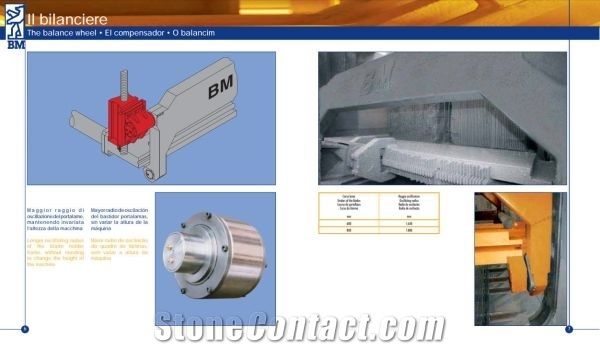

Oscillating radius	mm	1650	1650	1650	1650	1650	1650	1650	1650
Flywheel Weight	Kg	9200	9200	9200	9200	9200	9200	9200	9200
Minimum slab thickness	mm	10	10	10	10	10	10	10	10
Dimension of trolley	mm	3500x4000	3500x4300	3500x4600	3500x4800	3500x5000	3500x5300	3500x5600	3500x6000
Max. block width	mm	4000	4300	4600	4800	5000	5300	5600	6000
Max vertical discs /blade no	No	160	170	180	180	180	180	180	210
Strokes of the blades	mm	600	600	600	600	600	600	600	600
Block max. length	mm	3500	3500	3500	3500	3500	3500	3500	3500
Machine overall height	mm	5500	5500	5500	5500	5500	5500	5500	5500
Flywheel diameter	mm	4000	4000	4000	4000	4000	4000	4000	4000
Machine overall width	mm	6700	7000	7300	7500	7700	8000	8300	8700
Installed power	kW	75	90	112	135	135	135	135	135
Block max. height	mm	2200	2200	2200	2200	2200	2200	2200	2200
Auxiliary motor power	kW	7.5	7.5	7.5	7.5	9	9	9	9
Approx. Weight	Kg	77000	80000	83000	85000	88000	91000	94000	98000
Machine overall length	mm	17.689	17.689	17.689	17.689	17.689	17.689	17.689	17.689
Cycles per minute	rpm	65	65	65	65	65	65	65	65
