TRIMWIRE Mobile single wire saw for squaring and cutting thick slabs of marble and granite

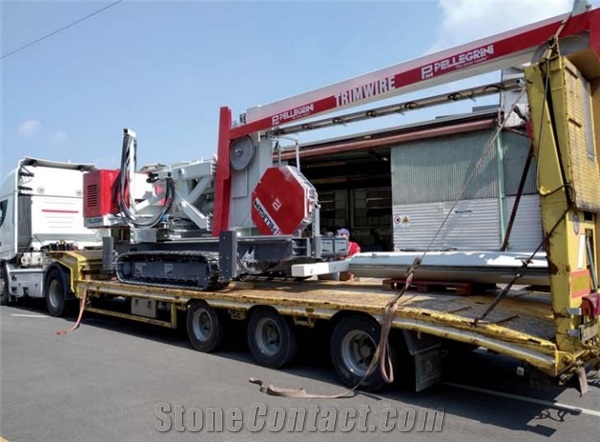

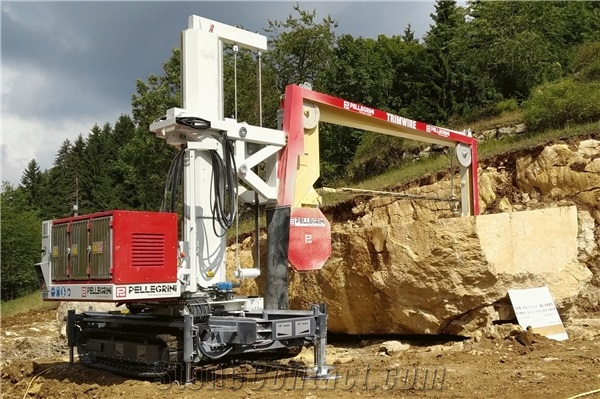

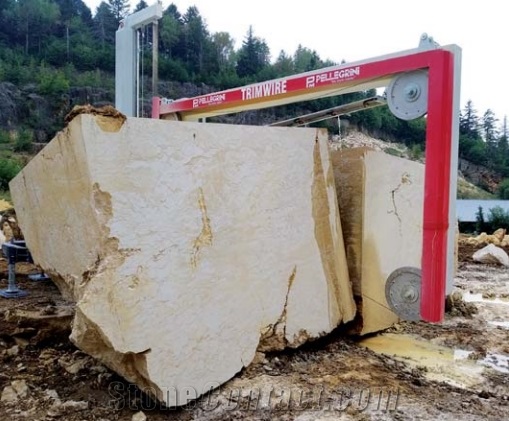

TRIMWIRE harmonizes the advantages of a stationary machine with a mobile quarry machine. Very unique, it is composed of a single wire structure installed on a tracks vehicle equipped with a diesel engine that makes the system independent from any external energy source. The machine is designed to be easily configured for transport from quarry to quarry on trailer. Once the machine has been stabilized on the side of the block by 4 hydraulic stabilizers, the cutting arch is brought to the desired height and opened to align the wire to the face of the block to be cut. The cut is performed vertically thanks to the movement of the arch structure along the column. The wire is driven by a motor flywheel 1000 mm diameter and guided by 600 mm diameter wheels. The entire cutting structure can also move along the rails (4 meters) placed on the top of the vehicle to allow the realization of different thicknesses with a single positioning of the vehicle. All the drives are hydraulic and the main controls are operated by radio control device.
