TELEDIAM 80 TD 80 Diamond wire saw for cutting large benches
FOB Price:
Type:
Stone Quarry MachinesQuarry Wire Saw Machine
Usage:
Marble, Limestone, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Supplier
Eatablished :Dec 31,1959
Main Product:
Automatic Loading Table, Slabs, Marble, Brushing Machine, Aging Machine, Continuous Flaming Machine|
Machinery Function Features

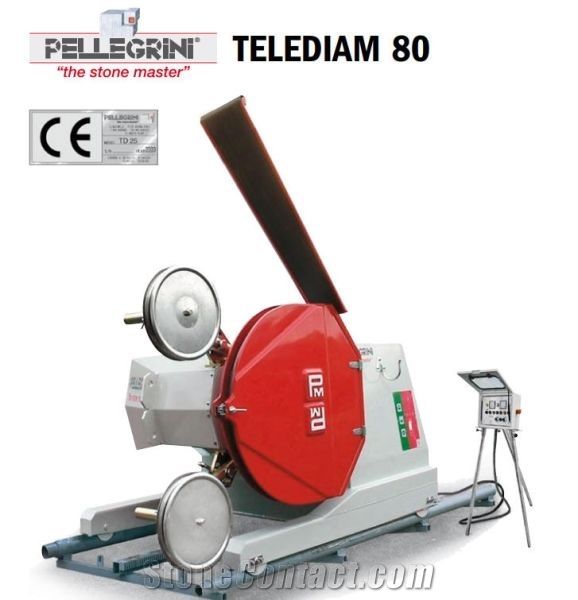

TELEDIAM 80 TD 80 (-100) Diamond wire saw for cutting large benches
Machine for large cuts in massive rock. The main electric motor (56
kW, 8 poles) is started by a star-delta system, and the motor shaft
carries the 102 cm aluminium flywheel. Two reducer assemblies
with electric drive allow 360° rotation and lateral shift of the flywheel
so that two parallel cuts can be made. OPTIONAL: inverter for
variable wire speed (0-30 m/s).
Technical Data
Parameters |
Unit |
TD 80 SUPER |
Water requirement |
L/min |
30-50 |
Wire Saw Speed |
m/s |
0-40 |
Motor Flywheel Unit Rotation |
° |
360 |
Dimension LxWxH |
mm |
2000x1450x1500 |
Main Motor Power |
kw |
56 |
Main Flywheel Diameter |
mm |
1000 |
Power Supply |
V/Hz |
75 CV |
Total Weight |
Kg |
2400 |
Guide Pulley Diameter |
mm |
380 |
