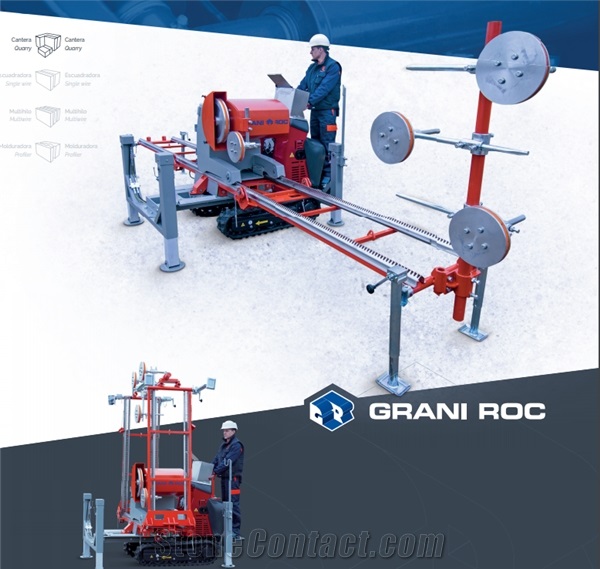

EBC Quarry Wire Saw Machine
FOB Price:
Type:
Stone Quarry MachinesQuarry Wire Saw Machine
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:3 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance
Supplier
Eatablished :Dec 31,2000
Main Product:
Diamond Tools, Saw Blades, Polishing Abrasives, Wire Saw Beads, Wire Saw Machines, Quarry Machines|
Machinery Function Features
* The machine is built with electro-welded machined steel that garantees precision, toughness and durability.
* Electric direct motor with smooth start of the main wheel through inverter allowing to increase progressively the wire speed and to tune the lineal speed of the wire.
* Motorized rotation of the main wheel head 180º
* Security system that stops the machine in case of problems (wire breakage, overload on the main motor, etc.).
* Wheel drive Ø400 mm that guarantees a good transmission of the power to the wire.
* Automatic electronic tuning of the tension of the diamond wire in order to get the maximum performance at any time of the cutting process
Technical Data
Parameters |
Unit |
EBC |
Main Flywheel Diameter |
mm |
400 |

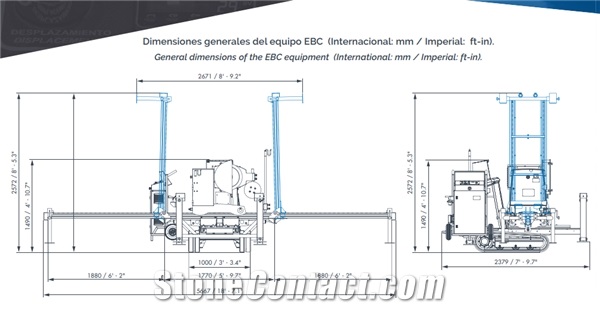

Dimension LxWxH |
mm |
5667x685x885 |
Power of Hydraulic Unit Motor |
kw |
0.12 |
Motor Flywheel Unit Rotation |
° |
>180º |
Voltage in the panel board |
V |
24 |
Power Supply |
V/Hz |
3 x 380 V + T / 3 x 480 V + E |
Guide Pulley Diameter |
mm |
250 |
Lateral displacement (only when supplied with carriage) |
mm |
400 |
Total installed power |
kW |
16 |
Total Weight |
Kg |
450 (without undercarriage)/1200 (with undercarriage) |
Wire Saw Speed |
m/s |
0 - 40 |
Main Motor Power |
kw |
15 |
