Diamond Wire Machine For Stone Quarry
FOB Price:$12625-26517
Type:
Stone Quarry MachinesQuarry Wire Saw Machine
Usage:
Granite, Marble, Limestone, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
shenzhen- China
Delivery Details: FOB,CFR,CIF,EXW,FCA
Payment :
More
Supplier
Eatablished :Sep 15,2022
Main Product:
Multi Wire Saw Machine, Block Dressing Machine, Quarry Machine, Dth Bit, Diamond Wire Saw, Dth Hammer|
Machinery Function Features
Diamond Wire Machine For Stone Quarry
Technical Data
Parameters |
Unit |
WS37B(H) |
WS45B(H) |
WS55B(H) |
WS75B(H) |
Dimension LxWxH |
mm |
2113x1361x1410 |
2113x1361x1410 |
2336x1535x1670 |
2336x1535x1670 |
Guide Pulley Diameter |
mm |
2x380 dia. |
2x380 dia. |
2x380 dia. |
2x380 dia. |
Total Weight |
Kg |
2200 |
2300 |
3300 |
3500 |
Adjustment Distance |
mm |
450 |
450 |
500 |
500 |
Max. Wire Length |
m |
60 |
80 |
100 |
120 |
Main Motor Power |
kw |
37 |
45 |
55 |
75 |
Walking speed |
m/h |
0~50 |
0~50 |
0~85 |
0~85 |
Wire Saw Speed |
m/s |
0~40 |
0~40 |
0~40 |
0~40 |
Cutting Distance |
mm |
1750 |
1750 |
2023 |
2023 |
Motor Flywheel Unit Rotation |
° |
360 |
360 |
360 |
360 |
Main Flywheel Diameter |
mm |
Marble: 800 dia. /Granite: 600 dia. |
Marble: 800 dia. /Granite: 600 |
Marble: 900 dia. /Granite: 800 |
Marble: 900 dia. /Granite: 800 |
Feed Motors Power |
kw |
0.75 |
0.75 |
0.75 |
0.75 |
Processed Stone Photos

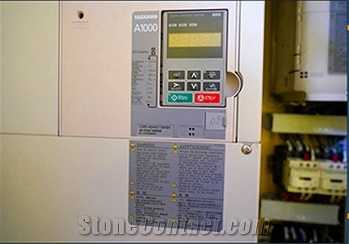

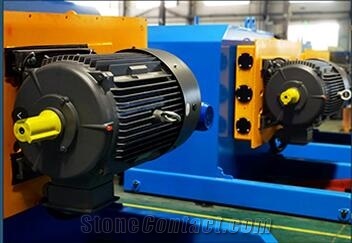

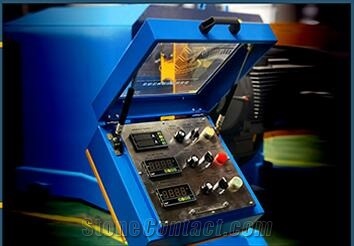

Components
Consumables
-

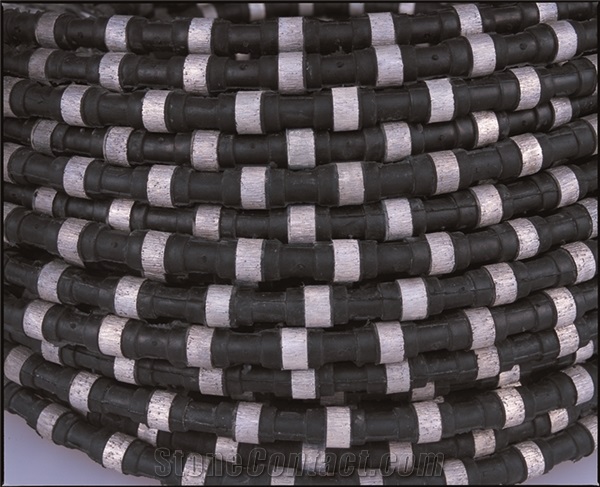

diamond wire saw
Video
Operation Video
