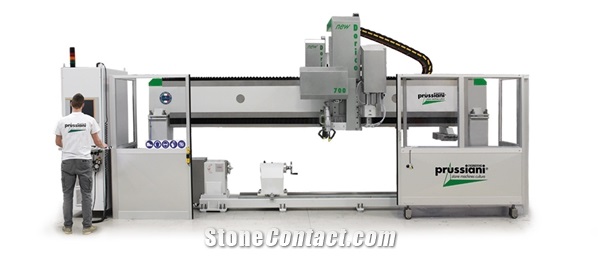

Prussiani NEW Dorico 700 CNC Lathes
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesColumn, Balustrade Lathe Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
Machinery Function Features
Prussiani LATHES, are designed and built for processing of marble, granite, engineered quartz, ceramic and natural stones.
Powered by a numerical control interfaced with CAD/CAM systems, they are able to produce:
columns with round, square, polygonal, oval or helicoidal section;
balustrades, vases, detailed capitals, statues and different design elements.

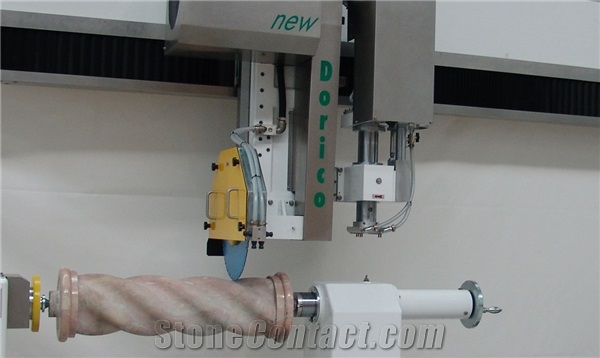

DORICO, with 3 interpolated axis, has been the world first lathe designed to make spiral columns.
Easy to manage
Machine easy to use intuitive CAD/CAM software
Easy and lowered maintenance planning controlled and guided by CNC
No risk of oil stains on the material lubrication with EP1 density grease
Attention to people safety machines compliant with the most recent safety standards
automatic centralized greased lubrication. In case of anomalies the machine stops;
watertight IP 55 electric cabinet with safety thermostat;
sound power level: 84 ÷ 90 dB(A).
Technical Data
Parameters |
Unit |
Dorico 700 |
Tool-holder spindle motor torque |
Nm |
66 |
Machine overall width |
mm |
1.900 |
Max total absorbed power |
kW |
28 |
Spindle speed |
r/min |
0-3.500 |
U axis (workpiece rotation) |
- |
continuous |
Disk-holder spindle motor torque |
Nm |
170 |
Machine overall length |
mm |
6.700 |
Approx. Weight |
Kg |
5.000 |
Blade diameter |
mm |
525 |
Control system |
CAD/CAM |
|
X axis rapid speed |
m/min |
8,5 |
Processing axis type(Vertical/Horizontal) |
Vertical |
|
Machine overall height |
mm |
3.000 |
Spindle motor power |
kw |
26 |
X axis stroke |
mm |
500 |
Max. processing length |
mm |
2.600 |
Tool-holder spindle motor power |
kW |
12,5 |
Maximum loading weight |
Kg |
900 |
Z axis stroke |
mm |
3.850 |
Tool-holder spindle rotation speed |
rpm |
0-10.000 |
Sound pressure level |
dB |
84 ÷ 90 |
U axis speed |
rpm |
100 |
3 axes interpolated numerical control X-Z-U |
- |
8070 |
Max. workable diameter |
mm |
700 |
Z axis rapid speed |
m/min |
65 |
Spindle tool holder |
- |
ISO 40 |
Software
Machine easy to use intuitive CAD/CAM software
