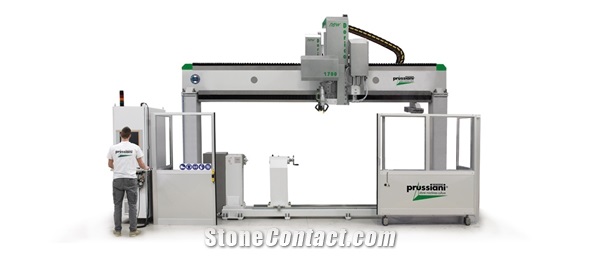

Prussiani NEW Dorico 1700 CNC Lathe Machine for Column, Balustrades
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesColumn, Balustrade Lathe Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Online software upgrade, Regular guidance & maintenance
You may also like
Machinery Function Features
Prussiani LATHES, are designed and built for processing of marble, granite, engineered quartz, ceramic and natural stones.
Powered by a numerical control interfaced with CAD/CAM systems, they are able to produce:
columns with round, square, polygonal, oval or helicoidal section;
balustrades, vases, detailed capitals, statues and different design elements.

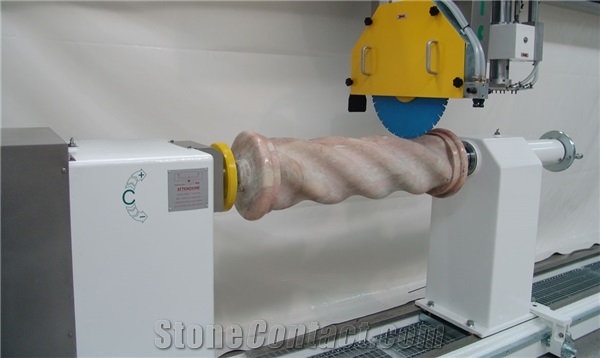

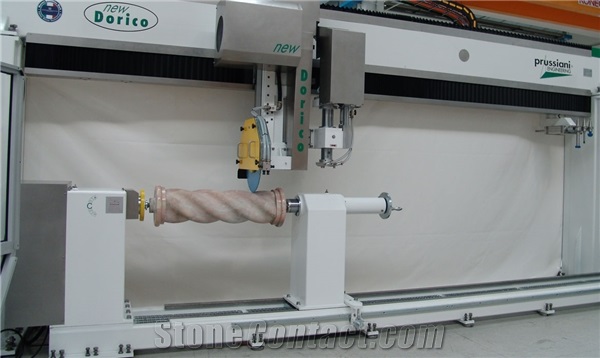

DORICO, with 3 interpolated axis, has been the world first lathe designed to make spiral columns.
Easy to manage
Machine easy to use intuitive CAD/CAM software
Easy and lowered maintenance planning controlled and guided by CNC
No risk of oil stains on the material lubrication with EP1 density grease
Attention to people safety machines compliant with the most recent safety standards
automatic centralized greased lubrication. In case of anomalies the machine stops;
watertight IP 55 electric cabinet with safety thermostat;
sound power level: 84 ÷ 90 dB(A).
Technical Data
Parameters |
Unit |
Dorico 1700 |
Processing axis type(Vertical/Horizontal) |
Vertical |
|
Max. workable diameter |
mm |
1.700 |
Machine overall height |
mm |
4.400 |
Disk-holder spindle motor torque |
Nm |
200 |
Control system |
CAD/CAM |
|
U axis speed |
rpm |
50 |
Machine overall width |
mm |
2.400 |
Max total absorbed power |
kW |
42 |
Machine overall length |
mm |
7.500 |
3 axes interpolated numerical control X-Z-U |
- |
8070 |
X axis stroke |
mm |
850 |
Tool-holder spindle rotation speed |
rpm |
0-10.000 |
Spindle speed |
r/min |
0-3.500 |
Tool-holder spindle motor power |
kW |
12,5 |
Tool-holder spindle motor torque |
Nm |
66 |
Spindle motor power |
kw |
30,8 |
Blade diameter |
mm |
650 |
Spindle tool holder |
- |
ISO 40 |
X axis rapid speed |
m/min |
6 |
Sound pressure level |
dB |
84 ÷ 90 |
Max. processing length |
mm |
5.000 |
Approx. Weight |
Kg |
6.750 |
Z axis stroke |
mm |
4.200 |
Z axis rapid speed |
m/min |
65 |
U axis (workpiece rotation) |
- |
continuous |
Maximum loading weight |
Kg |
20.000 |
Software
Machine easy to use intuitive CAD/CAM software
