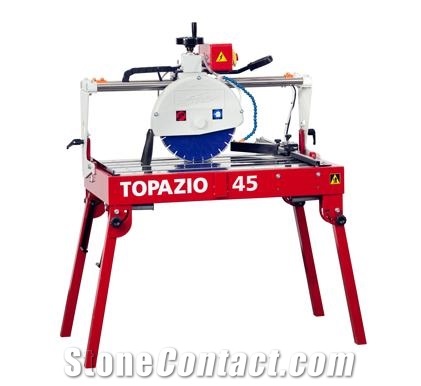

TOPAZIO 45 - D250 MANUAL CUTTING MACHINE FOR CERAMICS INDUSTRY AND BUILDING SECTOR
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesMitre Saw, Edge Cutting Machine
Usage:
Granite, Marble, Artificial Stone
After-Sale
Warranty:12 Months
Supplier
Eatablished :Dec 31,2000
Main Product:
CNC-Numerical Control Machining Centres- Floor Honing Machines- Water-Jet Cutting Machines -Block Cutting Machines-Cutters|
Machinery Function Features
Light-weighted, versatile and easy-to-handle cutting machines suitable for materials like ceramics, marble, granite and different kinds of bricks.

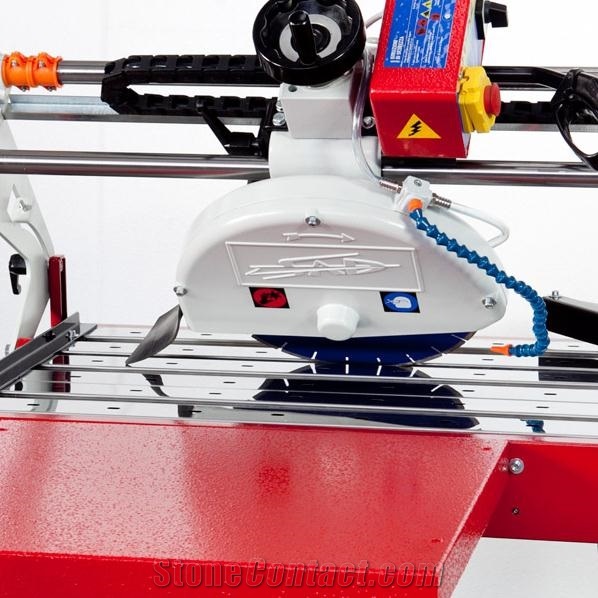

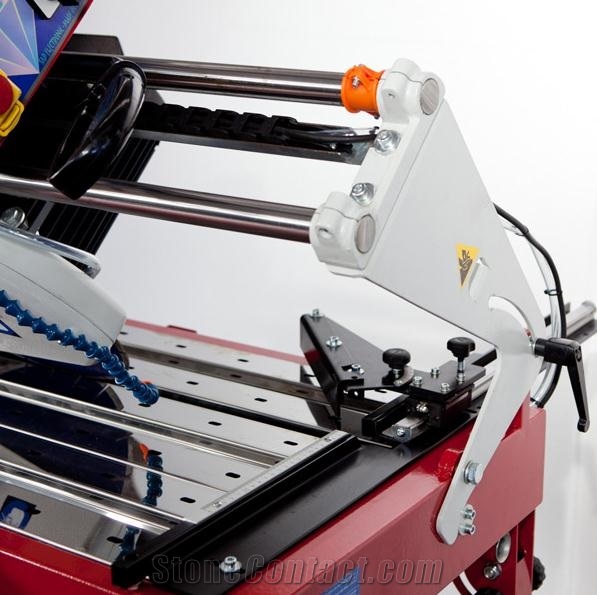

The machine's structure was designed in such a way that only one operator is needed to move it around. The aluminium working unit slides on chromed steel bars with ball bearings and oil seals. The machine's head can easily be tilted for 45° cuts and includes vertical adjustments system with handwheel.
Standard equipments: side extension table, cable-holder chain, stainless steel working bench, water tank + pump
Technical Data
Parameters |
Unit |
TOPAZIO 45 - D250 |
Machine width (W) |
mm |
560 |
Main motor rotation speed |
r/min |
2800 |
Standard voltage |
V |
230 (mono-phase) |
Approximate weight |
Kg |
53 |
Max. cutting length |
mm |
450 |
Blade bore size |
mm |
25.4 |
Main motor power |
kw |
1.5 |
Max stone thickness |
mm |
70 |
Machine height (H) |
mm |
710 |
Machine length (L) |
mm |
890 |
Diamond blade diameter |
mm |
250 |
