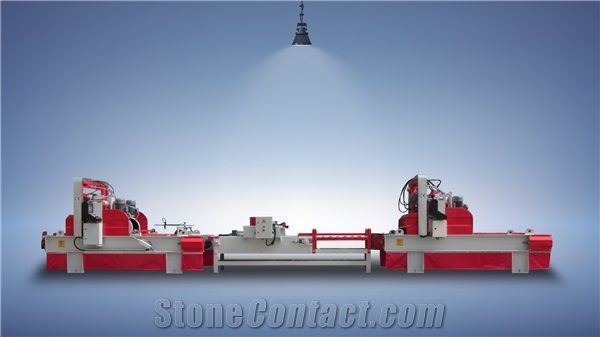

Trimming Line (With Turning Robot) Tile Cutting Machine
FOB Price:$18500-50000
Type:
Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
45 days
Warranty:24 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Trade Terms
Port:
Mersin Port- Turkey
Delivery Details: FOB,CFR,CIF,EXW
Payment :
Supplier
Eatablished :Jan 01,1998
Main Product:
Polishing Machines, Granite Machines, Block Cutting Machines|
Machinery Function Features
Cutting capacity of the machine is between 200 mm and between 1200 mm
Working capacity of the one day 300 - 600 m2 / 8 h
Saw's engine power 5,5 kW
Technical Data
Parameters |
Unit |
2 Heads Belt Cutting Machine |
Full Auto Trimming Line |
Disc diameter |
mm |
350 |
350 |
Max. distance between the blades |
mm |
650-1200 |
650-1200 |
Approximate weight |
Kg |
2500 |
6000 |
Disc-holder head motor pover |
kw |
5,5 |
5,5 |
Installed electrical power |
kw |
13 |
27 |
Conveyor system motor power |
kw |
0,75 |
1,5 |
Cutting angles |
° |
90 |
90 |
Conveyor belt width |
mm |
750-1300 |
750-1300 |
Machine length complete with roller bench |
mm |
3200 |
8000 |
Machine height (H) |
mm |
1600 |
1600 |
Conveyor system forward speed |
m/min |
2 |
2 |
Machine width (W) |
mm |
1400-2000 |
1400-2000 |
Maximum strip width |
mm |
650-1200 |
650-1200 |
Number of disc-holder heads |
pcs |
2 |
4 |
Machinable width |
mm |
650-1300 |
650-1300 |
Cooling water requirement |
L/min |
8 |
16 |
Min. distance between the blades |
mm |
200 |
200 |
Minimum strip width |
mm |
200 |
200 |
Maximum thickness |
mm |
60 |
60 |
Spindle advancement motor power |
kw |
5,5 |
5,5 |
Software
The machine can adjust the cutting width automatically on the screen.
You enter the target width of the stone on the screen than the machine goes the target size automatically.
You can work with automatic mode and manuel mode.

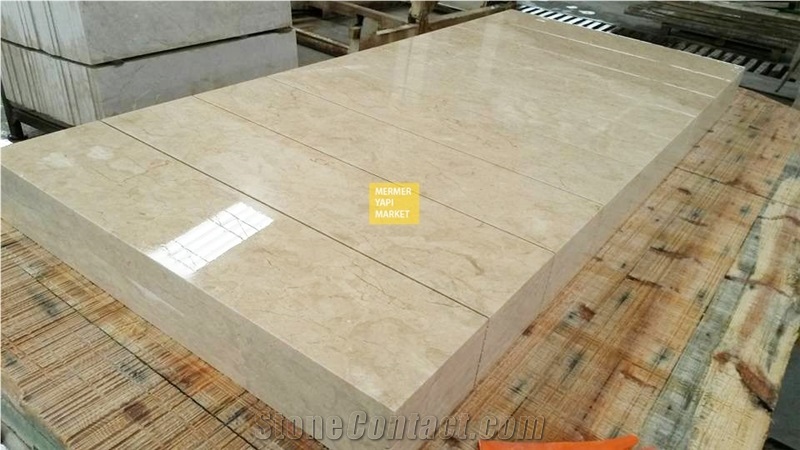

Processed Stone Photos
Components

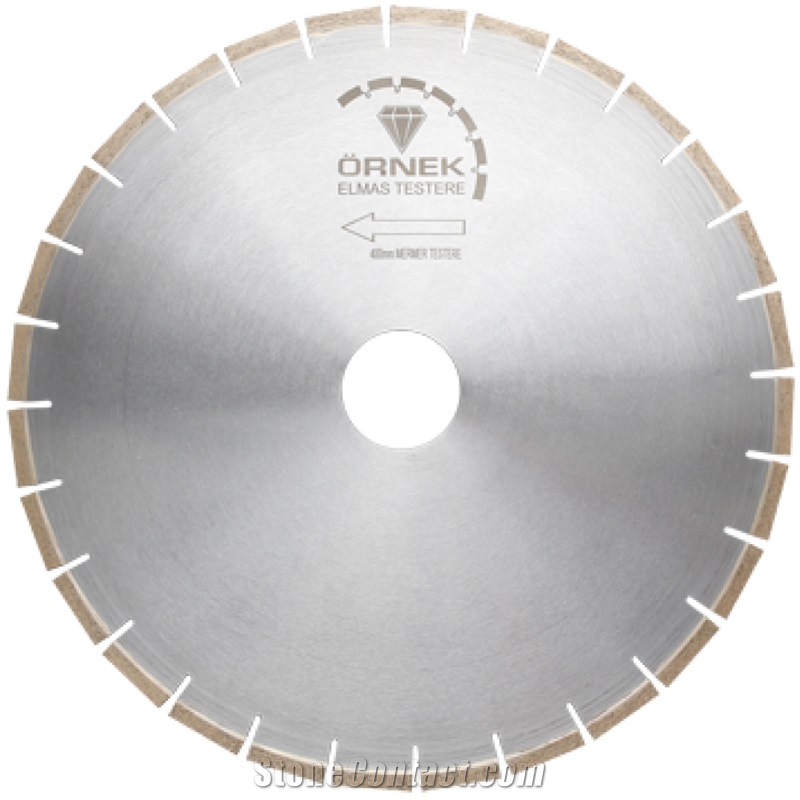

Consumables
Video

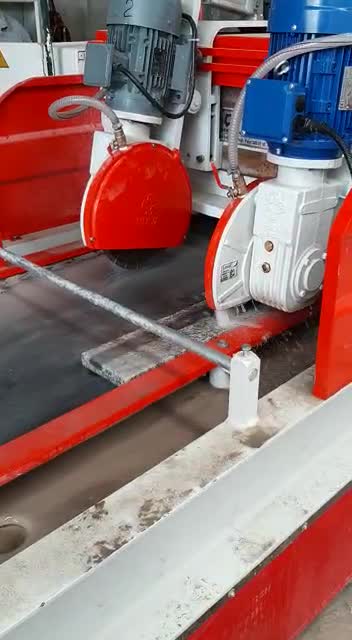

Operation Video
