Horizontal Splitting Machines

Name: Horizontal Splitting Machines
Brand: Yuceler Marble Tile and Machine
SKU: 1892
Price: 85000 USD
Availability: InStock

FOB Price:$85000-90000

Type: Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine

Usage: Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Sandstone, Travertine

After-Sale

Lead Time: 30 DAYS

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation

Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting

Supplier

Yuceler Marble Tile and Machine

Yuceler Marble Tile and Machine

Turkey level 8YR

Eatablished :Aug 04,2004

Main Product:

Carrara Venato, Lilac Marble , Burdur Beige, Shellstone , Diana Royal, Limestone|

Contact supplier

Start Order

You may also like

Horizontal Composite Slab Bandsaw Splitting Machine

Automatic Horizontal Splitting -Strip Cutting Machine Mod. 6ML H. 300/630

Horizontal splitting machine 630x6

Stone Trimming Machine

4-Axis Bridge Type Strip Cutting Machine, Edge Trimming Machine

Product Detail
Company Profile

Overview
Components

Machinery Function Features

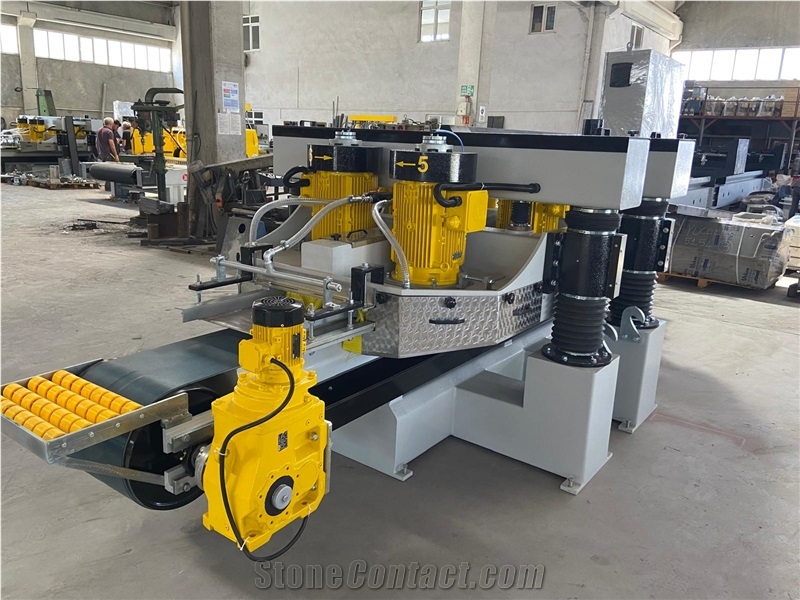

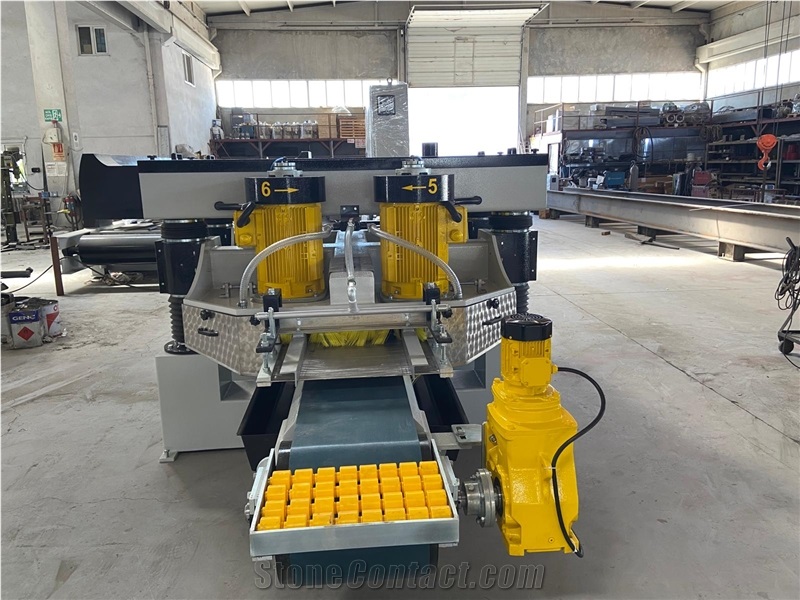

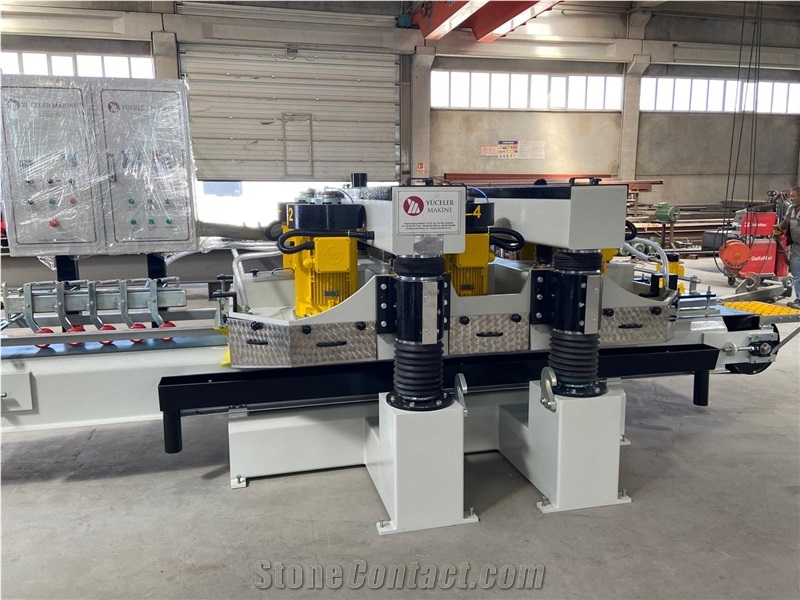

6 HEAD HORİZANTAL SPLITTING MACHINES

6 Kafa Yarma Makinesi / 6 Head Horizantal Splitting Machine
Teknik Özellikler Technical Specifications

YYYM06 Testere sayısı / Number of saw adet - pcs 6
Testere çapları Diameter of the saw blades mm 650-700-875
Çalışma genişliği Max. cutting width mm 630
Çalışma kalınlığı Max. cutting tickness mm 100
Konveyor motor gücü Conveyor motor power kw 0,75
Yukarı/aşağı hareket motor gücü Up and down movement motor power kw 0,75
Yarma motor gücü (giriş) Splitting motor power (enter) kw 22
Yarma motor gücü (orta) Splitting motor power (middle) kw 22
Yarma motor gücü (çıkış) Splitting motor power (out) kw 22
Toplam elektrik gücü Total electric power kw 133,5
Makine ağırlığı Machine weight kg 7100
Makine ebatları (en x boy x yükseklik) Machine dimensions (width x lenght x height) mm 2210*6100*2100
Otomatik sayım Automatic counting
Mevcut /Available

Technical Data

Parameters	Unit	YMMM6
Max. working height	4	100MM
Machine width (W)	mm	2.10CM
Voltage	67	380V
Max. Pressure	tons	7100KG
Machine height (H)	mm	2.20CM
Max. working width	4	630MM
Blade length	4	850
Machine length (L)	4	6.10CM
Main Motor Power	7	22KW
Approximate weight	Kg	7100KG

Processed Stone Photos

FRENCH PATTREN SET 12MM

Components

DIAMOND

Consumables

DIAMOND

850MM
