Flotter Edge Polishing Maschine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesEdge Profiling, Polishing Machine
Usage:
Granite, Marble, Limestone, Onyx, Basalt, Quartzite, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Remote guidance installation, Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Dec 30,1983
Main Product:
Machines For Granite Marble, Edge Polishing Machine, Used Machines, Polishing Machine, Edge Profiling In Line, #V-Groove|
You may also like
Machinery Function Features
support bar with manual adjustment to support slabs with different dimensions;
1 meter roller tables to support the pieces being processed;
Kw. 4 universal cutter for upper, lower and inclined cutting with various tilting degrees;
Kw. 4 calibrator with vertical and horizontal adjustment;

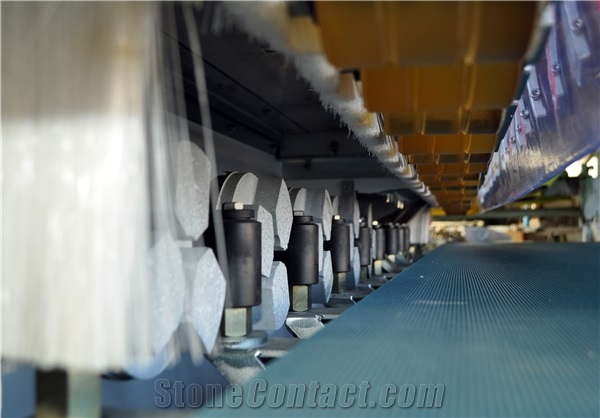

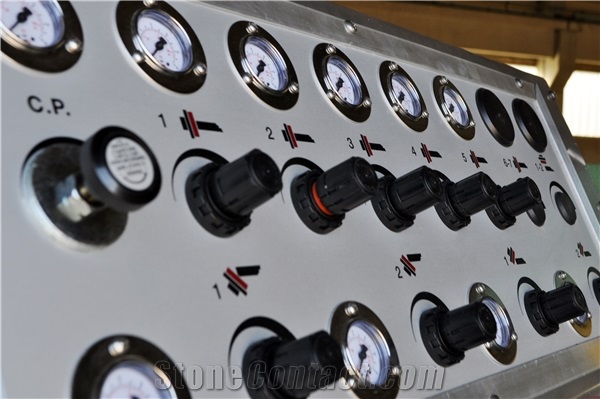

5 frontal polishing heads with an independent regulation of the air pressure;
protection carter and cover in stainless steel;
the conveyor belt runs on cold drawn flat stainless steel bars of 12 mm.
Technical Data
Parameters |
Unit |
FLOTTER 520 |
FLOTTER 540 |
FLOTTER 540 PLUS |
Max. processing thickness |
mm |
60 |
60 |
60 |
Sound pressure level |
dB |
80-90 |
80-90 |
80-90 |
Approx. Weight |
Kg |
2700 |
2900 |
3000 |
Machine overall width |
mm |
1800 |
1800 |
1800 |
Number of Bevelling/chamfering spindles |
nr |
1+1 |
2+2 |
2+2 |
Water consumption |
L/min |
60 |
70 |
80 |
Number of dressing/polishing spindles |
nr |
5 |
5 |
5 |
Machine overall length |
mm |
3750 |
3750 |
4000 |
Machine overall height |
mm |
1800 |
1800 |
|
Belt advancement speed |
mm/min |
10 / 2300 |
10 / 2300 |
10 / 2300 |
Total power |
kw |
20 |
19 |
22 |
Standard diameter of polishing wheels |
mm |
130 / 150 |
130 / 150 |
130 / 150 |
Min. processing thickness |
mm |
15 |
15 |
15 |
Max. diameter of shaping wheel |
mm |
300 |
300 |
300 |
Max. diameter of calibrating wheel |
mm |
200 |
- |
200 |
