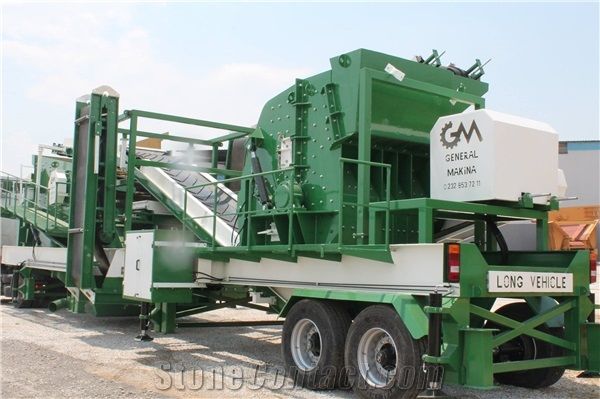

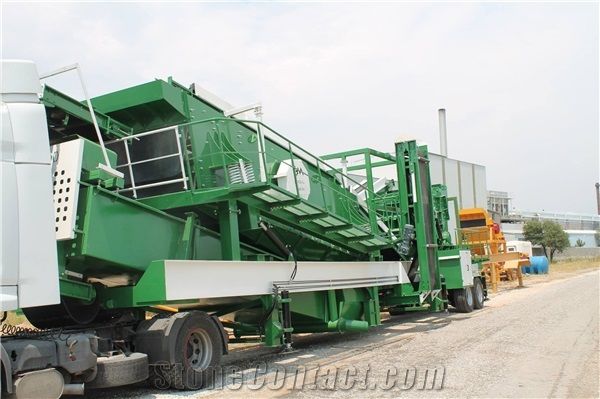

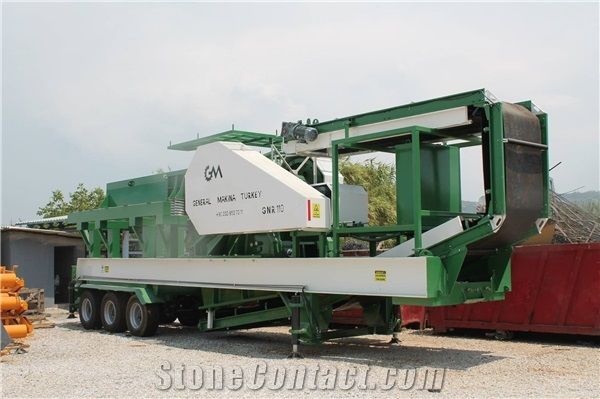

Mobile Crusher Plant Gnr-Mc110 (2 Chassis)

GNR - MC110 Mobile jaw crusher is designed to crush hard materials such as basalt, granite. The GNR - MC110 mobile crusher is the ideal solution for companies who prefer a mobile crusher. 1. VIBRATING FEEDER 1.1. Bunker - Capacity : 35 m³ Side Bunker sheets are supported from the outside with a "U" profiles to prevent erosion during truck feeding. 1.2. Vibrating Feeder - Model : GNR110 - Size : 1100x4750 mm - Drive : 2x11 kW 1000 r/m vibro motor. 1.3. Jaw Crusher Maintenance Platform and Cabinet 2. JAW CRUSHER - Model : GNRK-110 - Size : 1100x850 mm - Drive : 132 kW 1000 r/m - electric motor - Jaws … : % 16-18 Mn. 2.2 Cr Steel Casting - Pitman : Special production subject to normalization - Flywheels : GG22 gray cast iron. Shaft flywheel connection - Body : 50 mm DIN 17100 material, welded and bolted construction. - Bearings : Heavy duty, Spherical roller bearing, Spherical roller bearing - Eccentric shaft : Cr.Ni.Mo. alloy steel. - Flywheel speed : 228 rpm. - Hydraulic jaw opening adjustment mechanism. - Bolt system for easy maintenance of belt and flywheel housing. 3.PRIMARY IMPACT CRUSHER - Model : GNR-PDK 01 - Rotor Diameter : 1400 mm - Rotor Width : 1500 mm - Drive : 160 KW X 2 Electric motors – 1450 rpm - Max. Feed Size : 1200 mm - Pallets : GX120 Mn 12 (16-18% Manganese) steel casting - Rotor Shaft : Ch 4140 alloy steel. - Body sheet thickness : 25 mm, St37 - Body Backing : Manganese casting with a thickness of 30 mm. - Bearings : Heavy duty type, Spherical roller bearing, Spherical roller bearing - Crusher For easy maintenance and repair, crusher hydraulic system to open and close the upper body hydraulically. 4. VIBRATING SCREEN - Model : GNR2060 - Dimension : 2000x6000 mm - Number of Deck : 3 Deck - Drive : Drive from center, 30 KW – 1500 rpm - The beds are liquid lubricated. - SKF or FAG brand bearings. - Adjustable eccentric weight for vibration control. - Screen body is one piece of sheet. - The screen will work on 8 springs in total. - A maintenance platform will be installed on 3 sides of the screen. - Heavy duty type - Sieves 6 mm, ERD 9435 lined. 5. DOUBLE SCREW CLASSIFIER 800X8000 mm DOUBLE 11 kW x 2 Pcs Motor 6.CONVEYOR BELTS 7. ELECTRIC PANEL AND REMOTE-CONTROL SYSTEM
