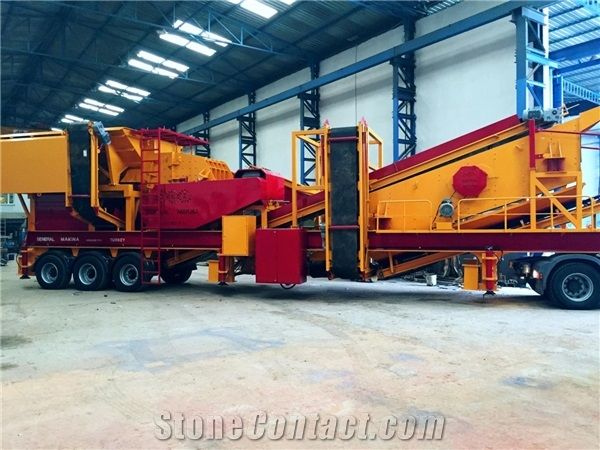

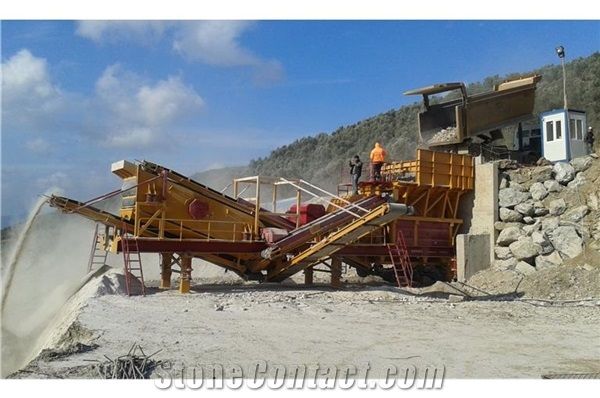

Mobile Crushing and Screening Plant General 02 for Sale

MOBILE FEEDER Size 1000x3750 mm TURBO CRUSHER GNR-02 Type GNR-02 Rotor Dimension: 1120x1250mm Engine: 200 Kw. 1500 rpm Max Feeding: 900x550 mm. Dimension: 1600 x5000 -3 floors Drive: 15 kW Bearings: Special vibration bearing Screen Body: ST Ereğli A1 quality 10mm Mobile Chassis System Mobile system with 3 axle shears. There are 6 hydraulic foot mechanisms in the hydraulic system. After these feet are locked, they are strengthened with 6 fixed feet. ** By-pass system (optional) ** Magnetic magnet (optional) ** Generator System (optional) ** Dust Removal System (optional) * Frequency Control System Used in place of soft starter (optional) ** MOTORS: GAMAK, EMTAS, ABANA BRAND. ** VIBRO-MOTORS: OMB, OLY BRAND. ** REDUCTERS POLAT BRAND. ** Hydraulic band opening system (optional) ** Hydraulic feeder additional hopper opening system (optional) ** All our products are European Union CE certified. ** Total Weight: 52,000 Kg ** Shipping Sizes: Width 4000 mm x Length 17000 mm x Height 4500 mm Mobile Crushing and Screening Plant GENERAL 02 Maximum feed size: 1000mm Ideal nutrition size: 0 - 800 mm Final size: 0 - 20 mm (0-5 mm, 5-12 mm, 12-20 mm or any other three types of materials and plus by-pass output production) Capacity (t / s): 200-300 t / s By-pass can be obtained from the By-pass system. The by-pass can be fed to the system if desired. In addition, the final product can be taken 3 type. Also the final product can taken 1 type. All our products has CE certificate.
