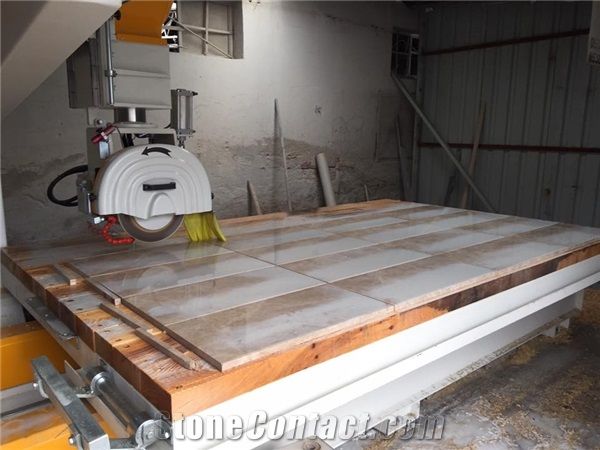

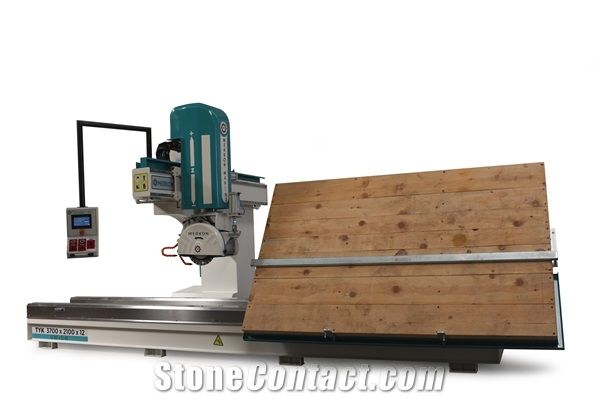

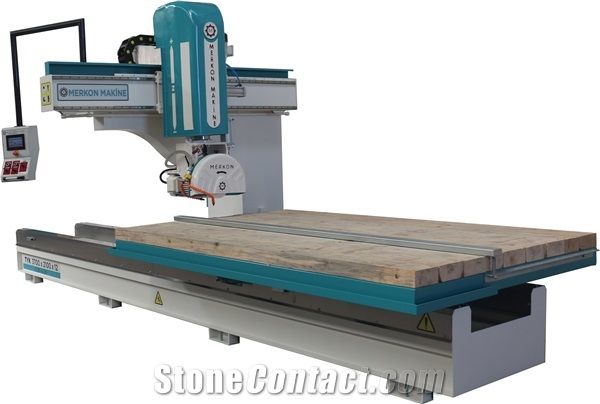

Automatic Side Cutting Machine
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesStrip Cutting,Edge Trimming Machine
Usage:
Granite, Marble, Limestone, Onyx, Sandstone
After-Sale
Warranty:12 Months
Supplier
Eatablished :Nov 11,2010
Main Product:
Block Cutting Machine, Polishing Machine, Bridge Cutting Machine, Chamfering Machine, Automatic Side Cutting Machine, Cnc Router|
Machinery Function Features
Multi-touch 7” display provides easy to use, allow to perform, sideways, The tilting head from 0 ° to 90 ° angea cutting, Pneumatic air system. The optional tilting work table with hydraulic pump promotes slab loading, speeding up the production process.
Technical Data
Parameters |
Unit |
Side |
Saw engine revolutions |
rpm |
1400 / 2800 |
Maximum thickness |
mm |
100 |
Cutting angles |
° |
0 - 90 |
Machinable length |
mm |
3500 |
Disc diameter |
mm |
300 - 500 |
Saw engine power |
kw |
11 / 15 |
Machinable width |
mm |
2000 |
Cooling water requirement |
L/min |
40 |
