2015 Biesse Rover A-1632 5-Axis Cnc Machining Center, 129" X 62" X 9.6
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center
Usage:
Granite, Marble
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Remote troubleshooting
Supplier
Eatablished :Dec 31,1964
Main Product:
New Used Machine Tools, Cutting Machines, Polishing Machines, Stone Machinery, Bridge Saw, CNC|
Machinery Function Features
FOR SALE - LOCATED IN BETHLEHEM, PA (USA)

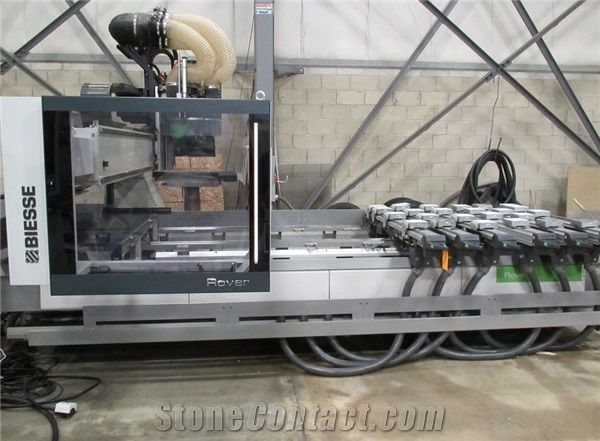

2015 BIESSE ROVER A-1632 5-AXIS CNC MACHINING CENTER, 129” X 62” X 9.6”

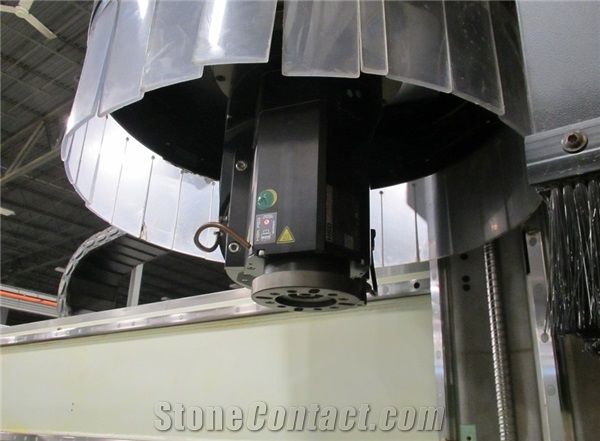

5-axis operating head, equipped with 17.4 HP HSD spindle and with 360° continuous rotation on the vertical and horizontal axes, enables the machining of complex-shaped pieces ensuring quality, precision and absolute long term reliability
WORKING FIELD
X-AXIS: 129”
Y-AXIS: 62”
Z-AXIS: 9.6”
LOADABLE PIECE: 74.8”
SPEEDS
X-AXIS: 262 FPM
Y-AXIS: 196 FPM
Z-AXIS: 65 FPM
VECTOR SPEED: 328 FPM
GENERAL
ELECTRICS: 460 VOLTS, 3 PH, 60 CYC
EQUIPPED WITH
PC NUMERICAL BASED CONTROL WITH WINDOWS 7
REMOTE CONTROL PANEL
17.4 HP OPERATING UNIT WITH 5 INTERPOLATING AXES, HSK-F63 ADAPTOR
BH24L BORING HEAD WITH SAW BLADE
WORK TABLE WITH 6 ATS PANEL SUPPORTS – 24 SLIDING BASES
16 POSITION REVOLVER TOOL CHANGER POSITIONED IN X-AXIS CARRIAGE
12 POSITION RACK TOOL CHANGER INSTALLED ON THE BASEMENT
MOTORIZED CONVEYOR BELT
ADJUSTABLE SUCTION HOOD
VACUUM SYSTEM
CENTRALIZED MANUAL LUBRICATION SYSTEM
AUTOMATIC LUBRICATION SYSTEM
BELT CONVEYOR FOR CHIPS & OFF-CUTS REMOVAL
PRESSURE SENSITIVE SAFETY MATS
22 OVERLAID LAYERS OF SIDE CURTAIN GUARDS
Technical Data
Parameters |
Unit |
Biesse Rover A-1632 |
Z axis rapid speed |
m/min |
65 FPM |
X axis rapid speed |
m/min |
262 FPM |
Y axis rapid speed |
m/min |
196 FPM |
Z axis stroke |
mm |
9.6” |
Y axis stroke |
mm |
62” |
X axis stroke |
mm |
129” |
