EM02 - Hydraulic Stone Crushing Press, Splitting Machine
FOB Price:
Type:
Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Basalt, Sandstone, Travertine
After-Sale
Lead Time:
Optional
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Regular guidance & maintenance
Supplier
Eatablished :Nov 29,1986
Main Product:
Makina, Ekizoglu, Marble Machines, Granite Machines, Basalt Machines, Ceramic Machines, Crushing Machines, Ekizoglu Makina|
Machinery Function Features

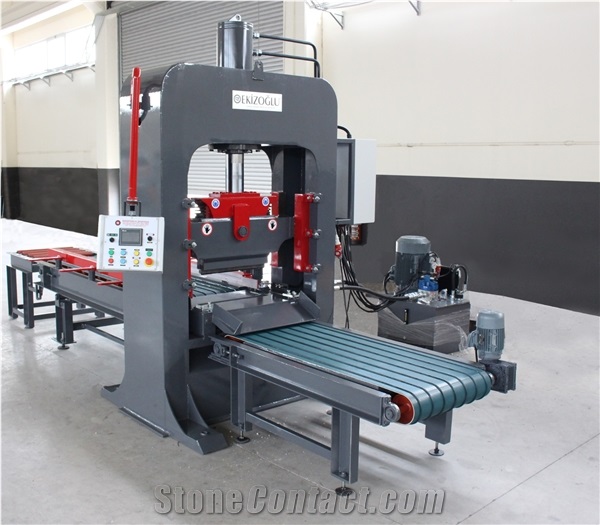

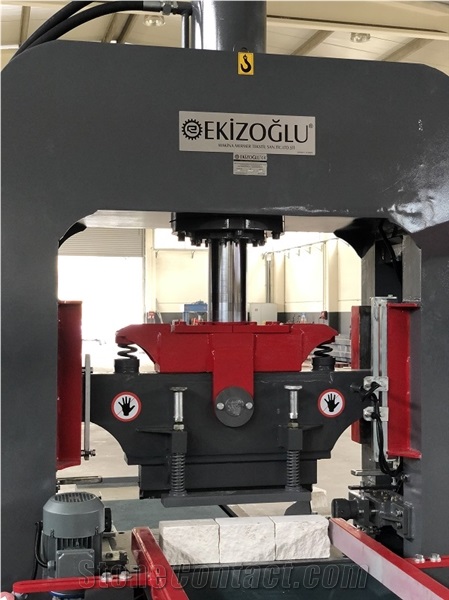

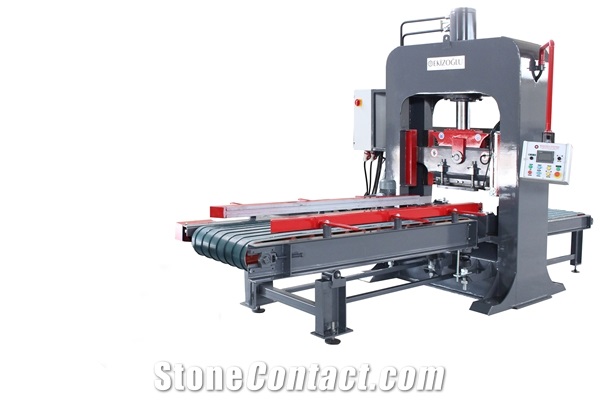

EM02 - Hydraulic Stone Crushing Press
• Working Width: 500 mm
• Working Height: 10 – 350 mm
• Blade Length: 500 mm
• Belt Width: 700 mm
• Feeding Conveyor Length: 2500 mm
• Output Conveyor Length: 1500 mm
• Belt Motor Power: 2×0,75 kW
• Hydraulic Motor Power: 30 kW
• Hydraulic Tank Capacity: 350 lt
• Working Pressure: 160 bar
• Machine Dimensions ( W / L / H ): 2200 / 6300 / 2840 mm
• Side Hydraulic Crusher Piston
• Conveyor Roller & Belt
• PLC Automatic Crushing Length Control
• Speed Control
• Forklift Loader Roller
https://ekizoglumakina.com/en/product/hydraulic-machine-for-breaking-stone
Technical Data
Parameters |
Unit |
EM02 |
Max. working width |
mm |
650 |
Machine length (L) |
mm |
6000 |
Flow rate |
L/min |
150 |
Strock lenght |
500 mm |
500 mm |
Blade length |
mm |
700 |
Oil tank capacity |
L |
450 |
Machine height (H) |
mm |
2840 |
Machine width (W) |
mm |
2100 |
Total motor power |
kw |
31 |
Voltage |
V |
Optional |
Electric current |
A |
Optional |
Max. Pressure |
tons |
50 |
Frequency |
Hz |
50 - 60 |
Working pressure |
bar |
100 |
Approximate weight |
Kg |
3950 |
Main Motor Power |
kw |
30 |
Max. working height |
mm |
400 |
Processed Stone Photos
-
Block Wall
Components
-

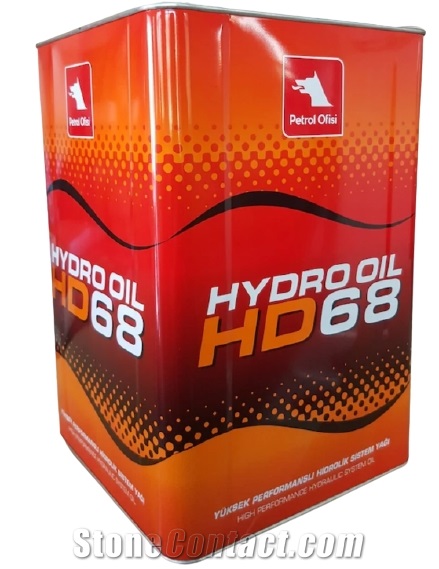

Hydraulic Oil N68
¥Payment Required
Consumables
-

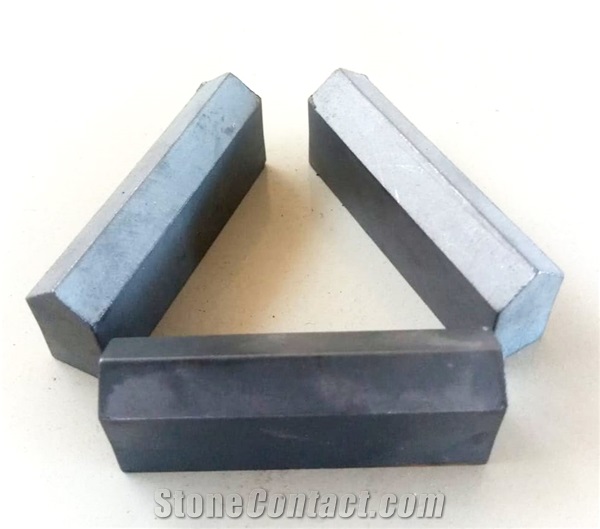

Blade
Blade Diamonds
Video

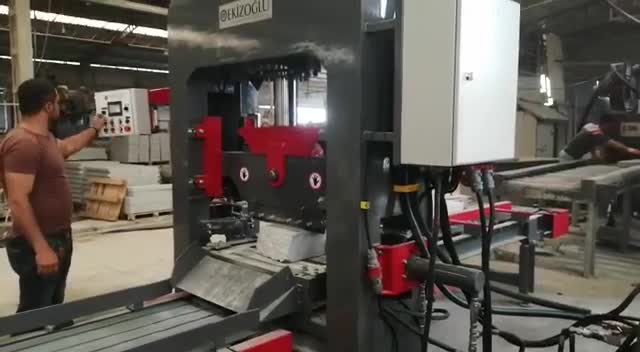

Operation Video
