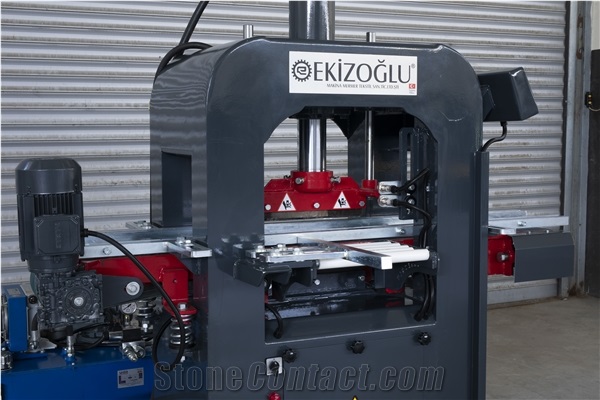

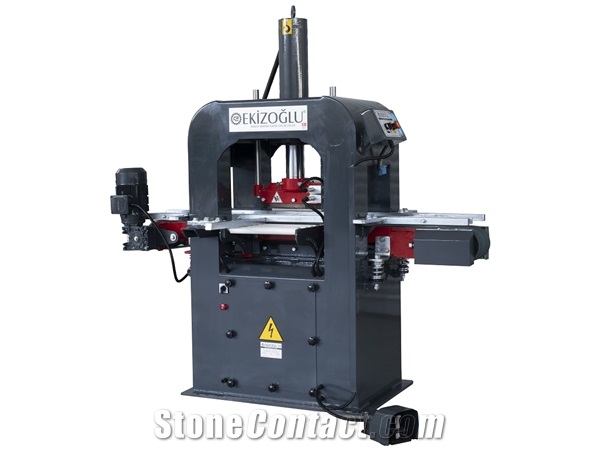

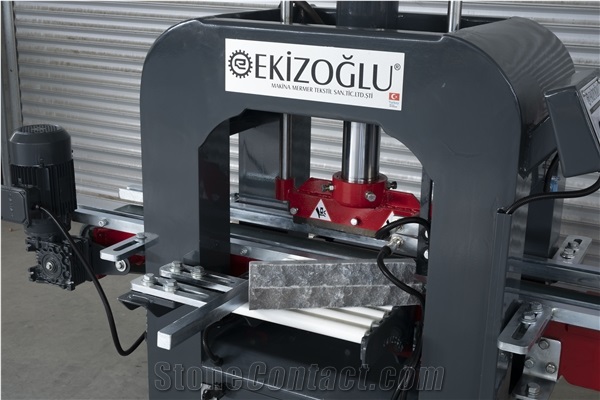

EM03 - Mini Hydraulic Stone Crushing / Splitting Machine

Name: EM03 - Mini Hydraulic Stone Crushing / Splitting Machine
Brand: Ekizoglu Makina
SKU: 5742
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: Optional

Warranty:12 Months

Install and Guarantee:Customer pay for installation

Maintenance:Regular guidance & maintenance

Supplier

Ekizoglu Makina

Ekizoglu

Turkey

Eatablished :Nov 29,1986

Main Product:

Makina, Ekizoglu, Marble Machines, Granite Machines, Basalt Machines, Ceramic Machines, Crushing Machines, Ekizoglu Makina|

Contact supplier

Start Order

You may also like

Hydraulic Cubes And Stone Slicing Splitting Machine

Stone Splitting Machine For Mushroom Face Cutting

Stone Splitting Machine KSD-95Y

Stone Splitting Stamping Machine

Cobble Stone Splitting Machine

Product Detail
Company Profile

Overview
Components

Machinery Function Features

EM03 - Mini Hydraulic Stone Crushing Machine • Working Height Range: 10 – 150 mm • Working Width Range: 10 – 300 mm • Working Length: Free Length • Roller Conveyor Motor Power: 0,55 kW • Hydraulic Tank Capacity: 90 lt • Hydraulic Motor Power: 5,5 kW • Max. Working Pressure: 180 bar • Machine Dimensions ( W / L / H ): 970 / 660 / 2000 mm • Automatic Sensor - Manual Pedal Crushing Control

Technical Data

Parameters	Unit	EM03
Max. Pressure	tons	110
Oil tank capacity	L	60
Machine length (L)	mm	1800
Main Motor Power	kw	5,5
Max. working width	mm	150
Approximate weight	Kg	750
Machine height (H)	mm	1800
Max. working height	mm	150
Machine width (W)	mm	1100
Blade length	mm	300
