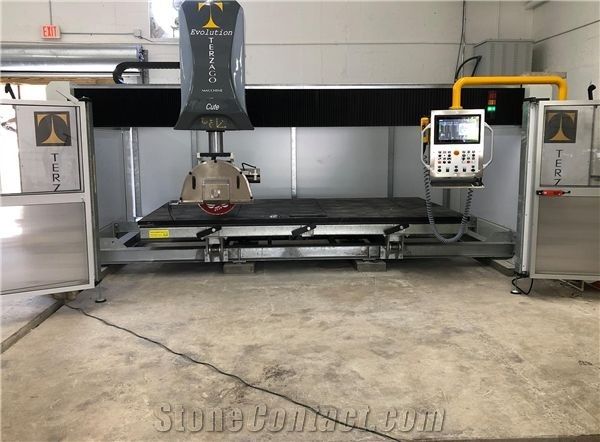

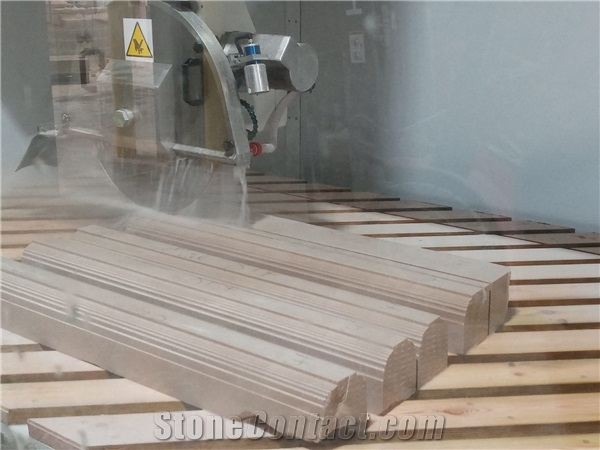

Terzago Cute Evolution 5 Axis CNC Machine Work Center

5 axes Cnc machine .Simple to be used . Slide of disc-holder slips on guides in hardened steel with recirculating balls pre-loaded for the elimination of the mechanical clearance. Positioning with pinion-helical rack system of precision and epicycle reducer with 0 clearance (Axis X). Sliding of the bridge on guides in hardened steel, cold-drawn, in class of precision H and sliding-block with recirculating balls pre-loaded. Positioning with 2 motors in electrical-axis with pinion- helical rack system of precision and epicycle reducers with 0 clearance (Axis Y). Sliding of head-holder on over-dimensioned chromed cylinder. Positioning with system screw-nut with recirculating balls pre-loaded and epicycle reducer with 0 clearance (Axis Z). Spin of the head ± 185° with reducer of high precision with eccentrics with 0 clearance (Axis C). Spin of the mandrel 0°-90° by manual wheel. Disc motor, power 15 kW, directly connected to the biade, electronic control of rotation speed by mean of INVERTER. Switchboard with isolation IP 55 at the right of the machine and outside of the foundation wall, with the general switch and block door. In the control panel are grouped the contactors with the relative thermal protections, the drives and the electronics controis, the complete PLC control while the Touch screen panel and the keyboard are positioned in a remote pendant box. Laser beam facilitates positioning of biade on cutting line. Water pressure switches stops machine, if cooling water insufficient. Tools are protected by an electronic ammeter to prevent use above preset values. Refrigeration pipes and electrical wiring protected in plastic cable trailer chain.
