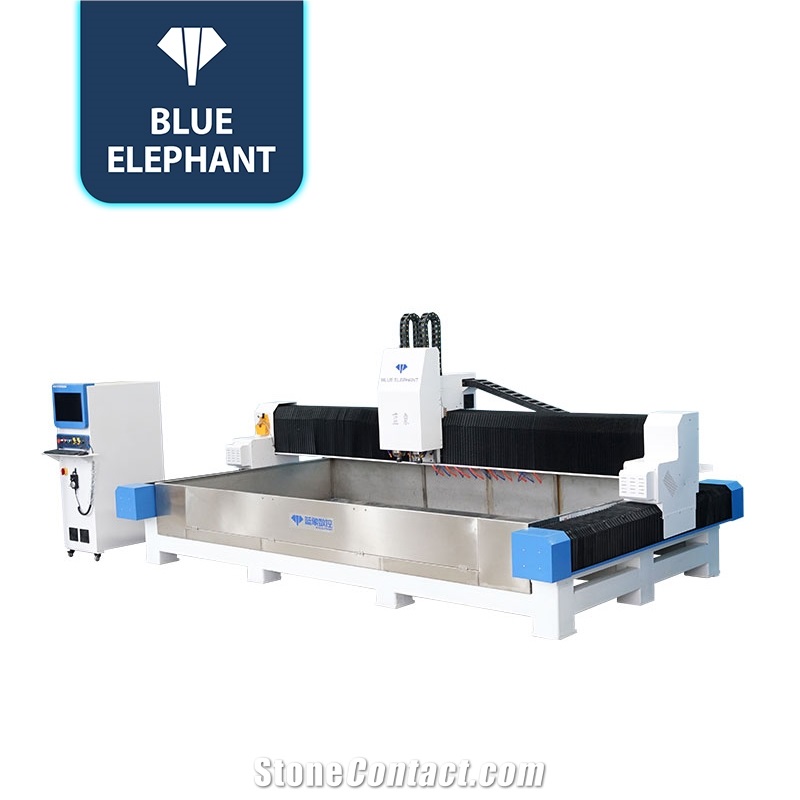

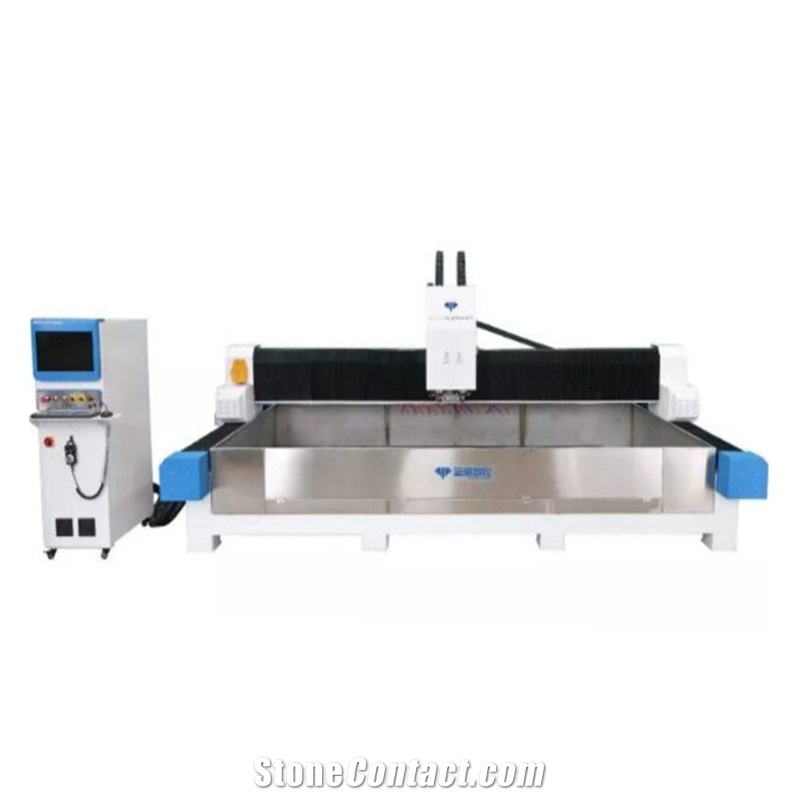

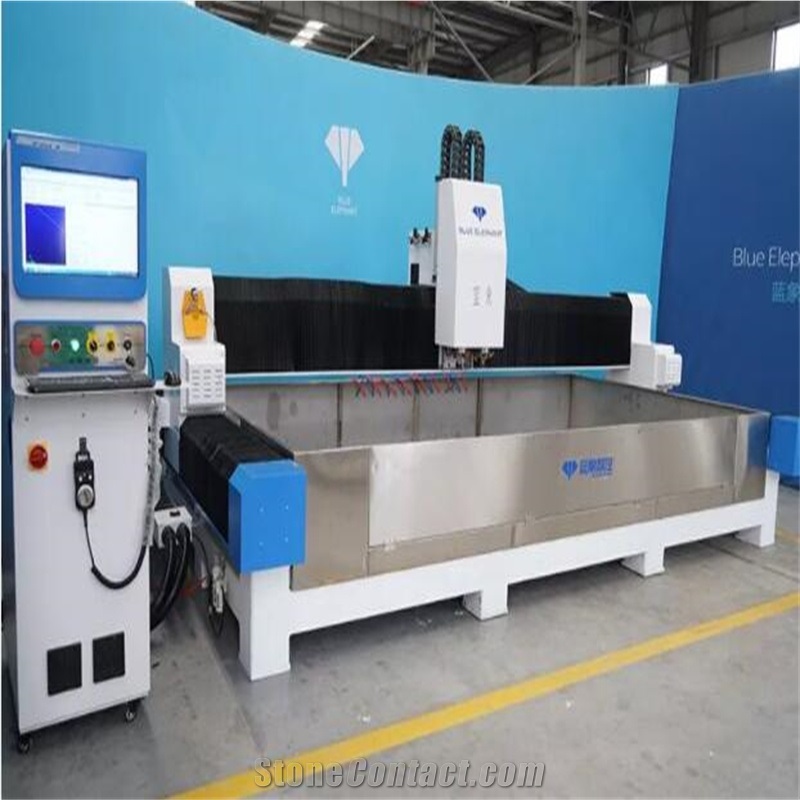

Two-Process Countertop CNC Stone Machining Center For Granite Cutting

Name: Two-Process Countertop CNC Stone Machining Center For Granite Cutting
Brand: Blue Elephant CNC Machinery
SKU: 5077
Price: 18000 USD
Availability: InStock

FOB Price:$18000-26000

Type: Stone Factory MachinesStone Finishing, Profiling MachinesCNC Working Center

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Lead Time: 30 working days

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting

Trade Terms

Port: Qingdao- China

Delivery Details: FOB,CIF,EXW,DDU

Payment :

Supplier

Blue Elephant CNC Machinery

Blue Elephant

China level 5YR

Eatablished :Apr 03,2013

Main Product:

4 Axis Bridge Saw, 5 Axis Bridge Saw, Stone Engraving Machine, CNC Machining Center, 6 Axis Robotic|

Contact supplier

Start Order

You may also like

3/4 Axis Countertop Sink Polish ATC Stone CNC Router Machining Center

CUT & JET 5 - CNC CUT & JET Combined Machine

Cutting, Carving And Grinding Machine Integrated CNC Work Center

3 Axis CNC Machining Center- CNC Working Center

Five Axis Machining Center - CNC Working Center

Product Detail
Company Profile

Overview
Components
Trade Terms

Machinery Function Features

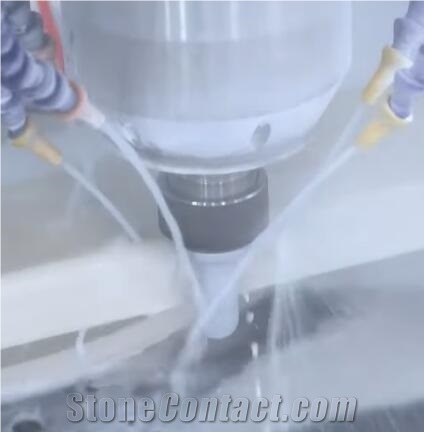

This two-process stone processing center has the advantages of small footprint, low investment cost, and high utilization of personnel and equipment. It can help users realize the processing functions of edging and engraving. It is suitable for users who have unsaturated workload of countertop process and a small amount of engraving needs. 1.It can help customers realize edging and engraving functions of the countertops. One machine has multiple functions and has a small footprint. 2.The edging function and engraving function of countertops can be switched in one-key operation, which is easy to operate. 3.This machine can realize fast tool change in 3 seconds, with more powerful functions and higher processing efficiency. 4.Two spindles can be automatically switched according to processing requirements. This reduces tool change time and wastes, and correspondingly improves processing efficiency.

Technical Data

Parameters	Unit	ELE-1530
Z axis rapid speed	m/min	60
Standard voltage	Volt	380V/50Hz/3P
X axis rapid speed	m/min	60
Max cutting depth	mm	200
Max. working length	mm	3000
Max. working thickness	mm	200
Max. working width	mm	1500
Z axis stroke	mm	200
Y axis rapid speed	m/min	60
Total Power required	kw	5.5

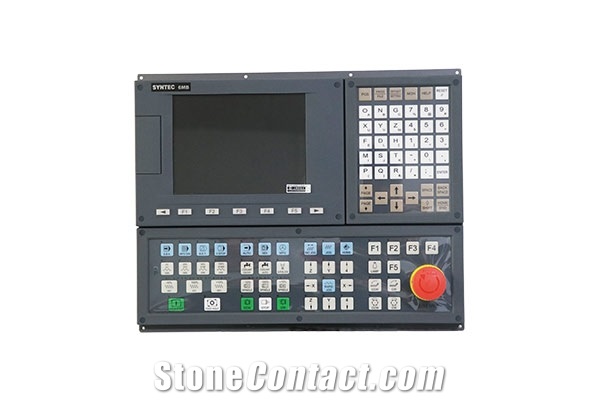

Software

This two-process stone processing center has many advantages. Such as small footprint, low investment cost, and high utilization of personnel and equipment. lt can help users realize the processing functions of edging and engraving. it is suitable for users who have a small amount of engraving needs.

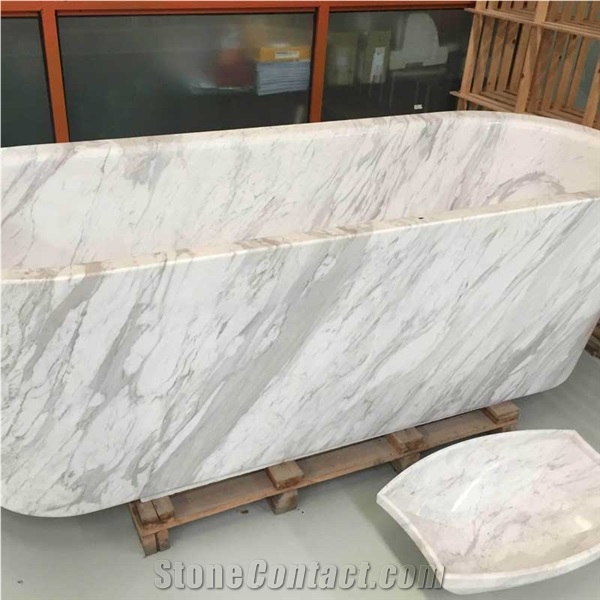

Work Example

Processing materials: The quartz countertop processing center is mainly used to process quartz stone, marble, granite, artificial stone slabs, etc.

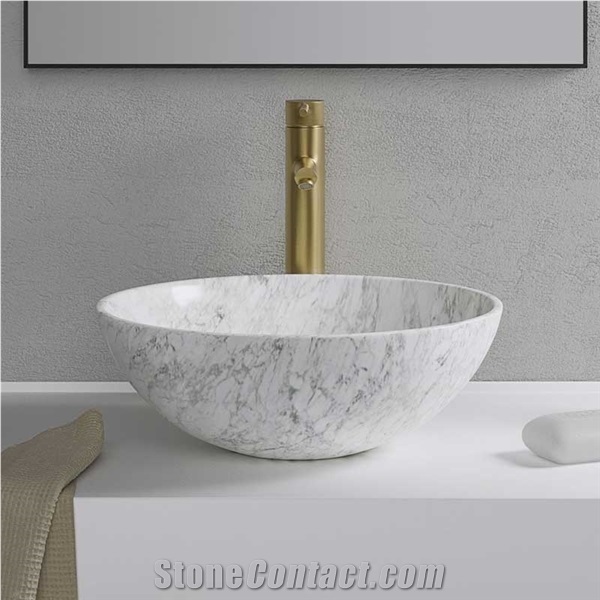

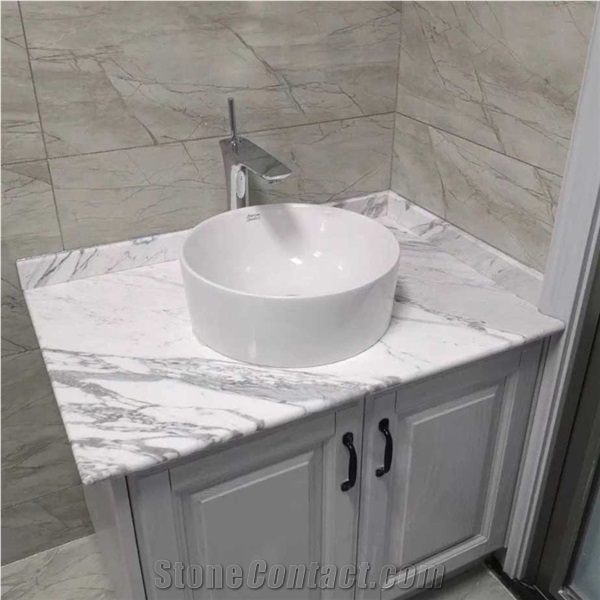

Applications: Kitchen cabinet countertops, stone coffee table tops, basin hole cutting, bar counters, bathroom countertops, background wall carvings, etc.
