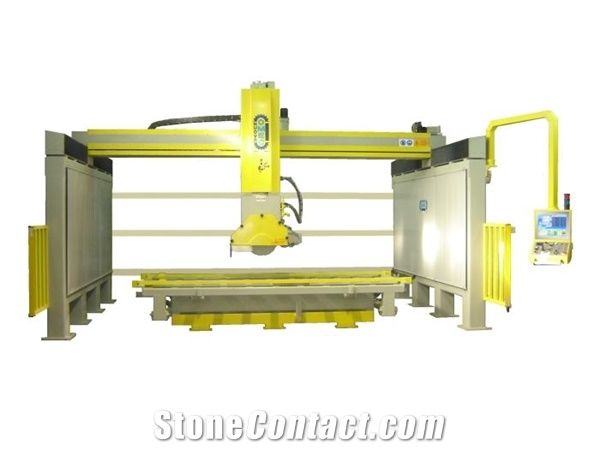

Bridge Type Milling Machine P1000 TG
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Onyx, Sandstone
After-Sale
Warranty:12 Months
Supplier
Main Product:
Special Machines For Marble, Granite, Stone|
You may also like
Technical Data
Parameters |
Unit |
P1000 TG |
Horizontal stroke speed(X axis displacement speed) |
m/min |
0-28 |
Dimensions of the work table(L×W) |
mm |
3500 x 1800 |
Transversal stroke speed (Y displacement speed) |
m/min |
0-28 |
Head raising/lowering stroke(Z axis travel) |
mm |
830 |
Total weight of the machine |
Kg |
8590 |
Flange diameter disc lock |
mm |
250 |
Voltage / frequency |
V / Hz |
380 / 50 |
Bridge transversal stroke(Y axis travel) |
mm |
2920 |
Machine length |
mm |
5850 |
C axis blade rotation |
° |
0 ° -185 ° +185 ° |
Max. revolutions of the spindle unit |
r/min |
800-6000 |
Tools holder head inclination(A axis blade rotation) |
° |
0 ° - 90 ° |
Disc diameter |
mm |
max. 1000 |
Vertical stroke speed (Z displacement speed) |
m/min |
0-6 |
Max. cutting depth |
mm |
400 |
Disc motor power |
kw |
22 |
Disk diameter |
mm |
60 |
Machine height |
mm |
3950 |
Horizontal stroke(X axis travel) |
mm |
4080 |
Machine width |
mm |
4000 |
