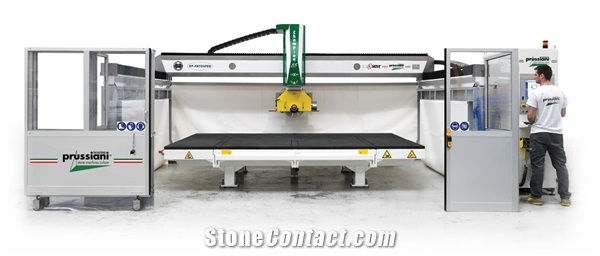

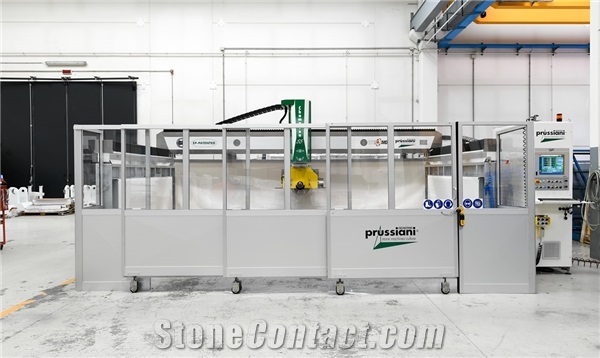

Prussiani CHAMPION 55 CNC BRIDGE SAWS

Name: Prussiani CHAMPION 55 CNC BRIDGE SAWS
Brand: Prussiani Engineering S.p.A.
SKU: 1292
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine

After-Sale

Warranty:3 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Online software upgrade, Regular guidance & maintenance

Supplier

Prussiani Engineering S.p.A.

Prussiani

Italy level 3YR

Eatablished :Dec 28,1991

Main Product:

Stone Machinery, CNC Waterjet Machine, Polishing Machine, CNC Bridge Saw, 5 Axes Milling Machines, CNC Working Centers|

Contact supplier

Start Order

You may also like

PLUG N CUT - Bridge Saw - Cutting Machine

High Efficiency CNC Multi Blade Stone Cutter

5 Axis CNC Cutter Bridge Saw Cutting Machine For Granite Marble

Pressure-Retaining Valve For Bridge Cutting Machines

Qicheng HQC450/600/700-4D Laser Bridge Cutting Machine(Guide Post)

Product Detail
Company Profile

Overview

Machinery Function Features

automatic centralized greased lubrication. In case of anomalies the machine stops; watertight IP 55 electric cabinet with safety thermostat; sound power level: 80 ÷ 90 dB(A).

Technical Data

Parameters	Unit	CHAMPION 55 / TFG - fixed table	CHAMPION 55 / TPG - partial tilting table	CHAMPION 55 / TLG - table with tilting levers	CHAMPION 55 / TCG - completely tilting table	CHAMPION 55 / CL - side loading	CHAMPION 55 / SHUTTLE - rotating tables
Tools holder head inclination(A axis blade rotation)	°	-185 ÷ 185 (370)	-185 ÷ 185 (370)	-185 ÷ 185 (370)	-185 ÷ 185 (370)	-185 ÷ 185 (370)	-185 ÷ 185 (370)
Monitor touch screen	TFT colour	17″	17″	17″	17″	17″	17″
Machine height	mm	2.900	2.900	2.900	2.900	2.900	2.900
Machine length	mm	6.600	6.600	6.600	6.600	11.400	8.400
Head raising/lowering stroke(Z axis travel)	mm	350	350	350	350	350	350
Minimum width for lifting- Optional	mm	120-50	120-50	120-50	120-50	120-50	120-50
Horizontal stroke speed(X axis displacement speed)	m/min	45
5 axes interpolated numerical control X-Y-Z-A-C	Fagor	8070	8070	8070	8070	8070	8070
Transversal stroke speed (Y displacement speed)	m/min	45

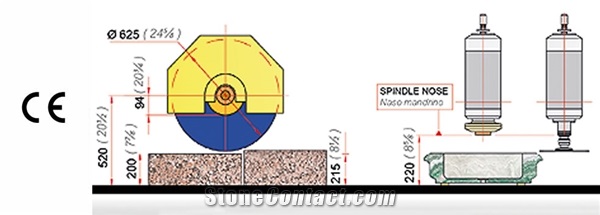

Max. cutting depth	mm	215	215	215	215	215	215

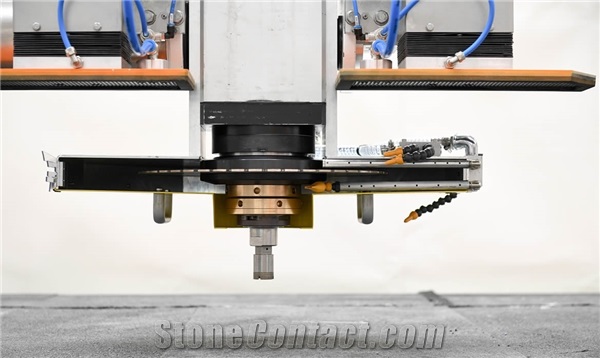

Electrospindle tool holder – Standard		1/2″ gas	1/2″ gas	1/2″ gas	1/2″ gas	1/2″ gas	1/2″ gas
C axis blade rotation	°	0°÷ 90°	0°÷ 90°	0°÷ 90°	0°÷ 90°	0°÷ 90°	0°÷ 90°
Max.width of the cut slab	mm	250	250	250	250	250	250

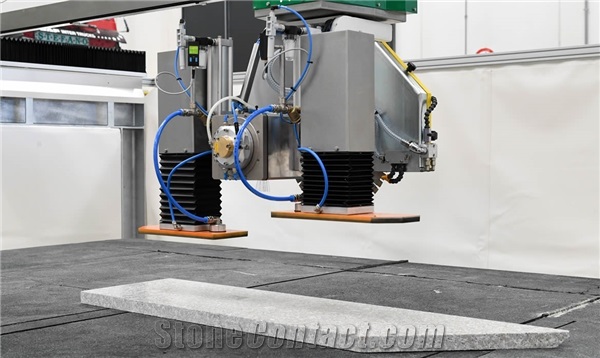

Max. liftable weight with all the vacuum cups activated	Kg	420	420
Disc motor power	kw	13,2	13,2	13,2	13,2	13,2	13,2
Height of camera support	mm	4.400	4.400	4.400	4.400	4.400	4.400
Installed electrical power	kw	18	18	18	18	20	18
Vertical stroke speed (Z displacement speed)	m/min	10
Max.length of the cut slab	mm	380	380	380	380	380	380
Machine width	mm	4.300	4.300	4.300	4.300	4.300	7.600
Horizontal stroke(X axis travel)	mm	3.800	3.800	3.800	3.800	3.800	3.800
Disc diameter	mm	625 max	625 max	625 max	625 max	625 max	625 max
Approximate weight without table	Kg	4.900	4.900	4.900	4.900	6.900	10.800
Average level of equivalent sound pressure	dB	80 ÷ 90 dB(A)	80 ÷ 90 dB(A)	80 ÷ 90 dB(A)	80 ÷ 90 dB(A)	80 ÷ 90 dB(A)	80 ÷ 90 dB(A)
Max. revolutions of the spindle unit	r/min	0 ÷ 6.000	0 ÷ 6.000	0 ÷ 6.000	0 ÷ 6.000	0 ÷ 6.000	0 ÷ 6.000
Axes motors for axis X-Y-Z-A-C with absolute encoder	Fagor	BRUSHLESS	BRUSHLESS	BRUSHLESS	BRUSHLESS	BRUSHLESS	BRUSHLESS
Bridge transversal stroke(Y axis travel)	mm	2.500	2.500	2.500	2.500	2.500	2.500
Max. workable thickness	mm	200	200	200	200	200	200
Main disk-holder electrospindle torque	Nm	72	72	72	72	72	72
