Bridge Saw-Gamma
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Sandstone, Travertine
After-Sale
Warranty:12 Months
Supplier
Eatablished :Sep 01,1985
Reusel
Main Product:
Bridge Saws Machinery, Masterline Series, Stone Honey Comb Production Line, Polishing Machinery, Edge Polishing Series|
Machinery Function Features

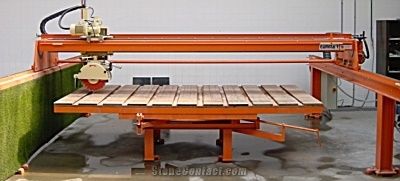

Bridge saw Gamma suited for processing sandstone, limestone, marble and granite.
Peripherical speed steplessly regulated by frequency regulator
Programmation:
For fully automatic sawing, PLC with operator panel which is suited for adjusting;
One strip width
The number of strips
The loss due to sawing
The saw head can be rotated in vertical plane (mitre) 0, 45 and 90 degrees and in horizontal plane 90 degrees.
There is also a possibility for profiling; with the use of a scan table a drawing is scanned. The profile of the drawing will automatically be transferred to the machine.
Technical Data
Parameters |
Unit |
Gamma |
Bridge length |
m |
4.5 |
Sawing reach |
mm |
3500 x 3500 |
Working table dimensions(L×W) |
mm |
3500 x 1800 |
Rise and fall |
mm |
450 |
Sawing depth |
mm |
90 - 265 |
Blade diameter |
mm |
400 – 800 |
Max load of turntable |
kg |
1750 |
