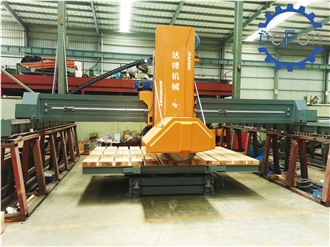

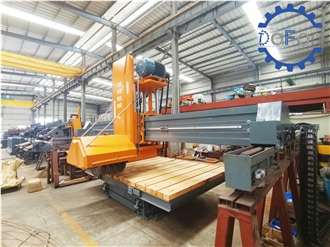

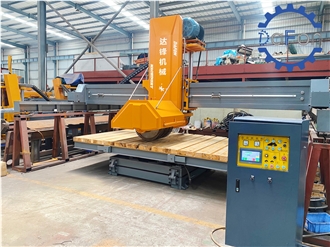

Multi-Blade Infrared Bridge Cutting Machine
FOB Price:$15000-18000
Type:
Stone Factory MachinesStone Slab Cutting MachinesInfrared Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
7 days after receiving deposit
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting, Field troubleshooting
Supplier
Eatablished :Feb 06,2023
Main Product:
Kerbstone Cutting Machine, Kerbstone Chamfering Machine, Granite Block Cutting Machine, Granite Slabs Cutting Machine, Marble Cutting Mahcine, Stone Slabs Polishing Machine|
Machinery Function Features
The multi-blade stone cutting machine is an improvement and upgrade based on the infrared bridge cutting machine. It uses PLC to control 7 saw blades to cut stone simultaneously. The host machine can hang up to 7 pieces of 800-diameter saw blades. The work trolley can be rotated 90° to save the cutting process. Greatly improve production efficiency. Heavy-duty beams and higher horsepower motors make multi-piece cutting more comfortable. It is ideal for cutting pavers, curbs, and dimension boards.
Technical Data
Parameters |
Unit |
DFQ-Q600-650/800-650 |
Up and down range |
mm |
550 |
Blade number |
pcs |
7 |
Worktable dimension |
mm |
3200×2000 |
Worktable tilting degree |
N° |
0-85° |
Overall dimension(LxWxH) |
mm |
6300×4700×3800 |
Max. cutting depth |
mm |
250 |
Water consumption |
m³/h |
5 |
Total motor |
kw |
44 |
Main motor |
kw |
37 |
max blade diameter |
mm |
Φ600-800 |
Worktable rotating degree |
N° |
0-90° |
Gross weight |
kg |
13500 |
Effective shaft length |
mm |
600 |

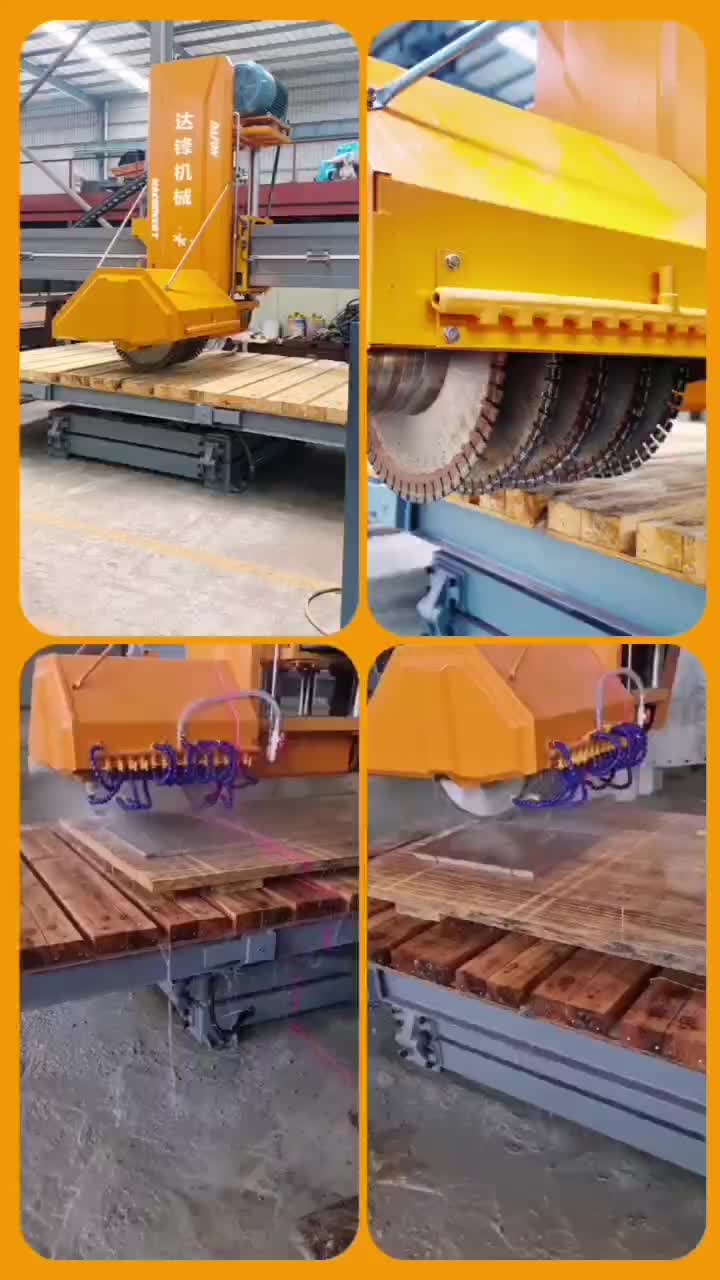

Work Example
Processed Stone Photos
-

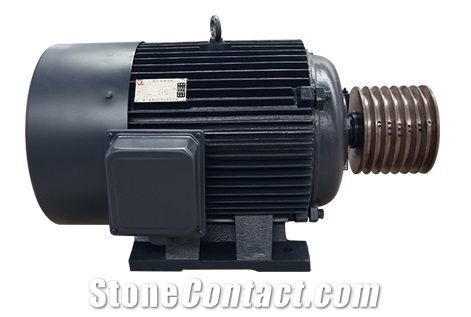

motor
Components
-

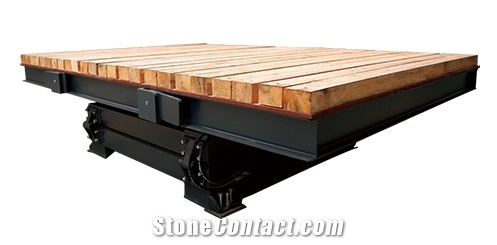

worktable
Consumables
-

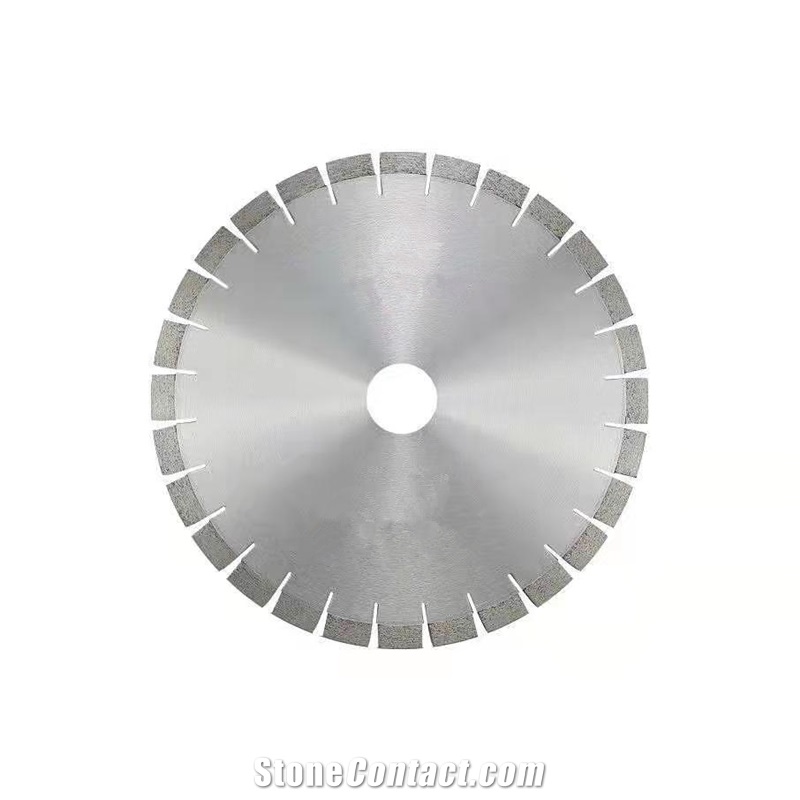

blade

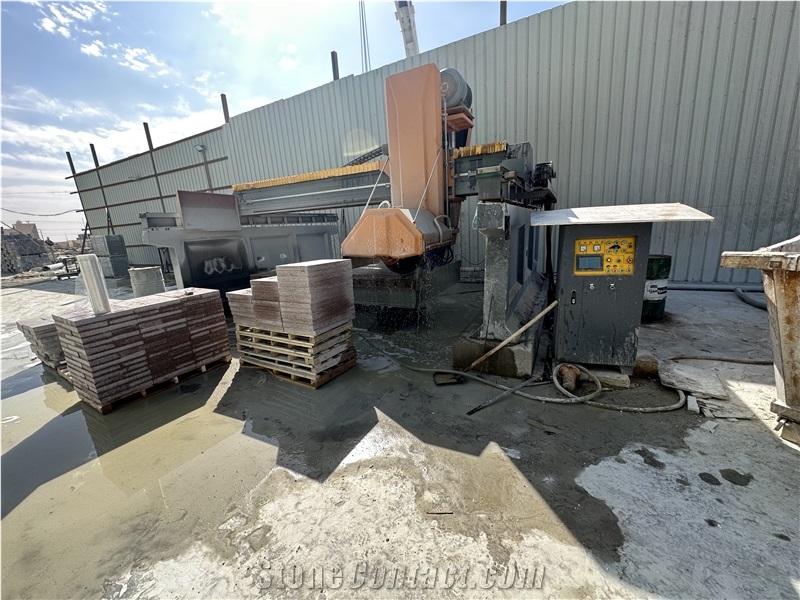

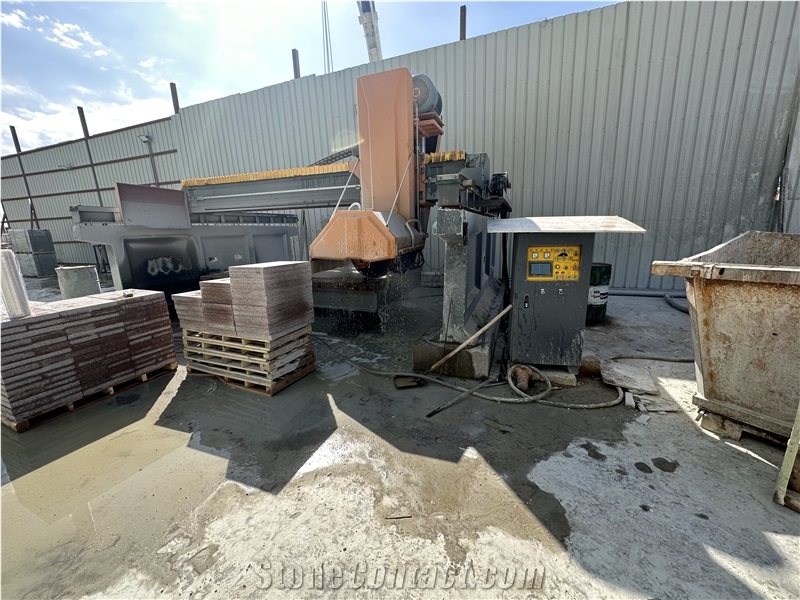

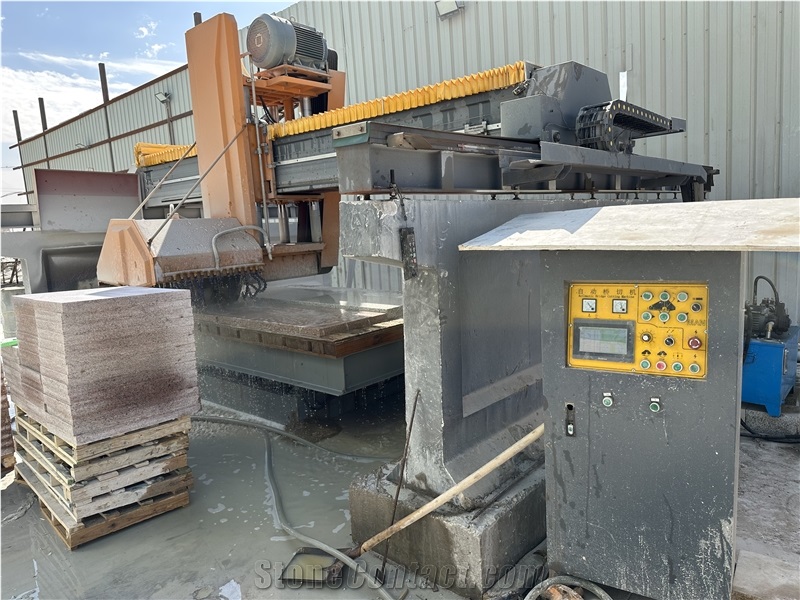

Customer Case
Pati Enock
South Africa
2021
South Africa
2021
Video
Install Video
Operation Video
Screen.PrimaryScreen.Bounds.Height
