Galaxy 500 Bridge Cutting Machine

Name: Galaxy 500 Bridge Cutting Machine
Brand: Granitek Machinery Inc.
SKU: 2826
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine

Usage: Granite, Marble, Limestone, Onyx, Sandstone

After-Sale

Warranty:12 Months

Supplier

Granitek Machinery Inc.

Granitek Machinery Inc.

Turkey

Eatablished :Jun 23,1976

Main Product:

Bridge Cutting, Multi Blade Cutting, Este, Block Cutting, Edge Processing, Wire Cutting, Side Cutter, Polishing, Gang|

Contact supplier

Start Order

You may also like

5 Axis CNC Stone Cutting Bridge Saw For Granite

Infrared 4 Axis CNC Marble And Granite Bridge Saw Machine

New Champion 5/Cl - Automatic bridge saw with 5 interpolated axes

CNC 5 Axis Stone Cutting And Milling Machine Bridge Saw For Marble

K600 EXTREME XL with Manipulator Bridge Saw Machine

Product Detail
Company Profile

Overview

Machinery Function Features

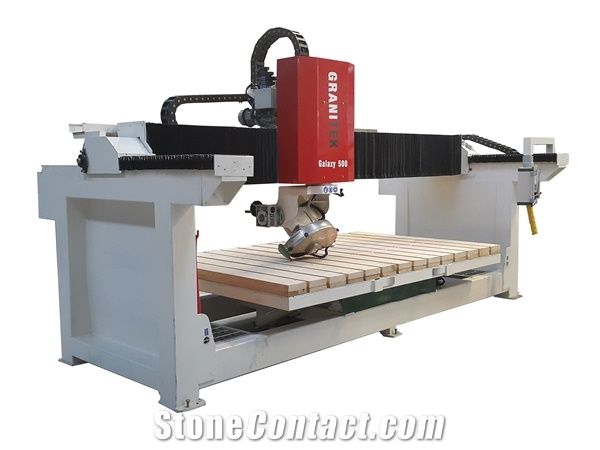

The Galaxy 500 Bridge Saw is a Numerically Controlled bridge saw with three interpolated axes (X, Y, Z, ) for the processing of marble, granite or other natural and engineered stones. The Galaxy 500 Bridge saw has been specifically designed for cutting slabs with maximum depth of cut of100 mm(depending on the cutting disc used).

Technical Data

Parameters	Unit	Galaxy 500
Horizontal stroke(X axis travel)	mm	3500
Saw shaft diameter	mm	50
C axis blade rotation	°	0-90°
B axis movement inclination of the saw unit (manual tilt)	°	0-45°
Blade flange size	mm	230
Bridge transversal stroke(Y axis travel)	mm	2200
Dimensions of the work table(L×W)	mm	3200 × 2000
Installed electrical power	kw	15
Head raising/lowering stroke(Z axis travel)	mm	150
Max.length of the cut slab	mm	3200
Max.width of the cut slab	mm	2000
Disc diameter	mm	500
