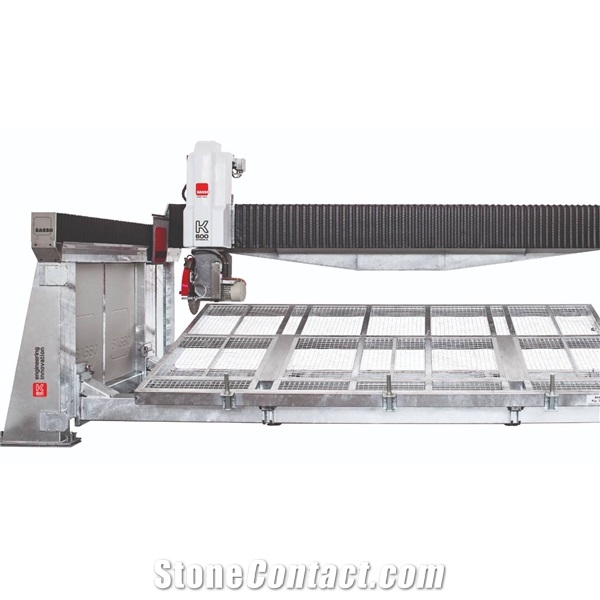

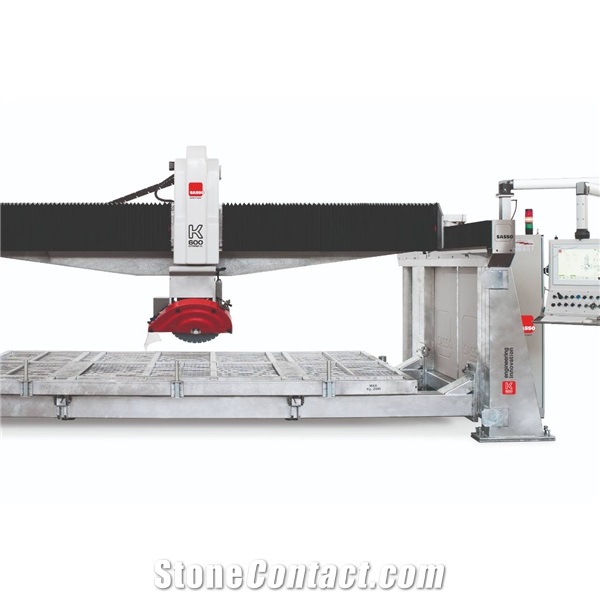

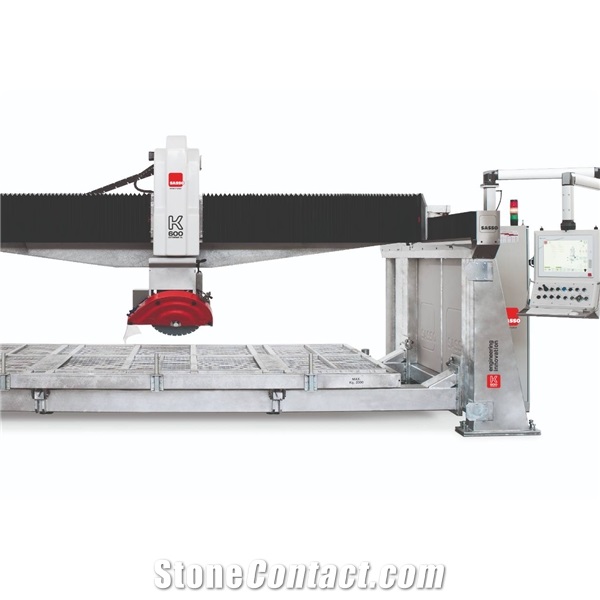

K600 EXTREME XL with Manipulator Bridge Saw Machine
FOB Price:
Type:
Stone Factory MachinesStone Slab Cutting MachinesCNC Bridge Cutting Machine
Usage:
Granite, Marble, Limestone, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Remote troubleshooting
You may also like
Machinery Function Features
The best 5 axis bridge saw EXTREME XL version to cut 4000mm slabs , powerfull motor 25HP , bigger cut performances bigger structure
25HP MOTOR, BIGGER CUT PERFORMANCE, BIGGER STRUCTURE,
the entire K600 line is made up of 5 axis CNC Saws. the machine are powerful, accurate and reliable.
Designed and built to provide the maximum performance in the minimum possible space
We have the best field proven cutting/mitering saw money can buy. There are three items that make our the K Series saws standout for miter work:
1. Our cutting surface. We use a special formulated cement bed. It is a vibration dampening, non-compressive and non-skid precision machined surface that it flat and true. This helps prevent parts sliding and kicking. It also works very well with Dekton and other porcelain slab brands.

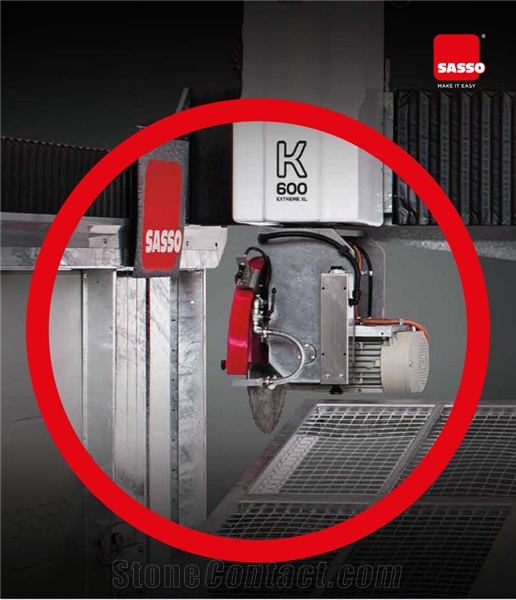

2. The saw motor pivots up into the knuckle which keeps the motor and blade centered on the z-axis tool plate. (reduced vibration = less chipping)
3. Cutting on a flat, machined surface improves miter performance dramatically. It is not wood (gaps or swelling) it is not foam or rubber which can?€?t be simply healed with thinset and re-planed. Cement just makes good common sense.
Perfect to cut any kind of natural or synthetic material: marble, ceramic, dekton, quartz, granite, laminam, Cosentino
MACHINE AT WORK:
https://www.youtube.com/watch?v=SaNa9TuXWD8 Installation in Seattle at the Stone Brothers
https://www.youtube.com/watch?v=GEq7PfMds9I Radius countertops for Baja Fresh.
https://www.youtube.com/watch?v=W30nGZHY_B8 this is a montage and shows a bunch of my customers :-)
https://www.youtube.com/watch?v=6irN2EDIy8c Mitter Cutting Dekton in Sacramento
https://www.youtube.com/watch?v=xYKrqzA7ArE Two K600s installed at a shop in Arlington Arlington Wa
https://www.youtube.com/watch?v=bcf28nIS_tY Rigging in two machines in Salt Lake City (Bought two saws at once)
Technical Data
Parameters |
Unit |
K600 EXTREME XL |
Machine height |
mm |
2763 |
Max. revolutions of the spindle unit |
r/min |
800 - 5000 |
Machine length |
mm |
6845 |
Head raising/lowering stroke(Z axis travel) |
mm |
370 |
Dimensions of the work table(L×W) |
mm |
4000 x 2120 |
Approximate weight without table |
Kg |
4200 |
Disc diameter |
mm |
350 min. - 625 max. |
Cooling water requirement(1.5 bar min. pressure) |
L/min |
40 |
Disc motor power |
kw |
18.5 |
Machine width |
mm |
3989 |
C axis blade rotation |
° |
0° - 90° |
Horizontal stroke(X axis travel) |
mm |
4100 |
Bridge transversal stroke(Y axis travel) |
mm |
2350 |
