EM10 - Bullnose Machine - Pool Coping Stone Profiling Line Machine
FOB Price:
Type:
Stone Factory MachinesStone Finishing, Profiling MachinesStone Profiling Line Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
Optional
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Regular guidance & maintenance
Supplier
Eatablished :Nov 29,1986
Main Product:
Makina, Ekizoglu, Marble Machines, Granite Machines, Basalt Machines, Ceramic Machines, Crushing Machines, Ekizoglu Makina|
Machinery Function Features

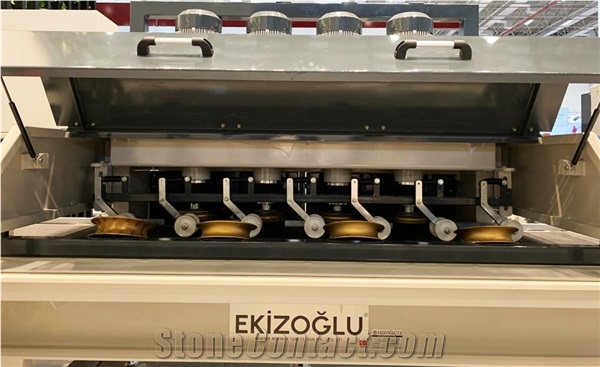

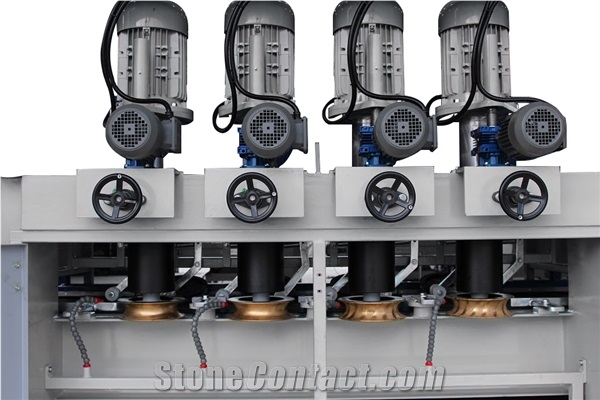

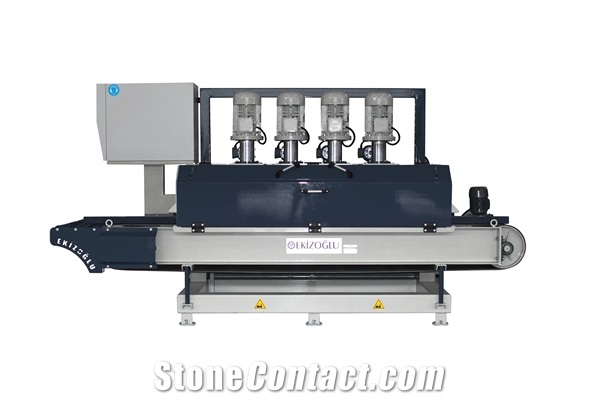

EM10 - Bullnose Machine
• Belt Width: 700 mm
• Working Width: 700 mm
• Number Of Heads *Optional: 4
• Diameter Of Socket: 240 mm
• Working Thickness: 10 – 100 mm
• Head Motor Power: 7,5 kW
• Up-Down Motor Power: 0,55 kW
• Belt Motor Power: 0,75 kW
• Total Electric Power: 33 kW
• Belt Speed: 0 – 4,9 rpm / min
• Water Consumption: 120 lt / min
• Machine Dimesnsions ( W / L / H ): 1700 / 4200 / 2100 mm
https://ekizoglumakina.com/en/product/bullnose-machine-em10
Technical Data
Parameters |
Unit |
Em 10 - 4 |
Em 10 - 6 |
Belt advancement speed |
17 |
4 |
6 |
Main motor power |
kw |
7.5 |
7.5 |
Machine overall length |
mm |
3500 |
4300 |
Conveyor Belt width |
4 |
700 |
700 |
Approx. Weight |
Kg |
1800 |
2250 |
No. calibrating/shaping/cutting spindles |
73 |
4 |
6 |
Belt advancement power |
7 |
0.75 |
0.75 |
Machine overall width |
mm |
1800 |
1800 |
Water consumption |
L/min |
120 |
160 |
Up & Down motor power |
kw |
0.55 |
0.55 |
Machine overall height |
mm |
2200 |
2200 |
Diameter of the drip board saw blade |
4 |
240 - 300 |
240 - 300 |

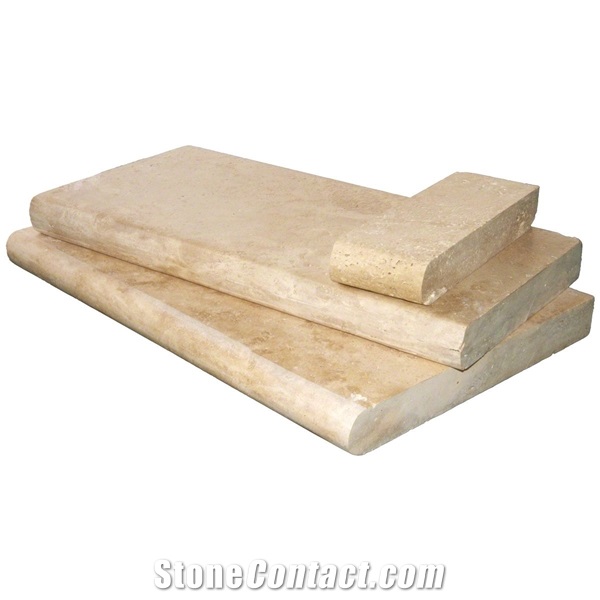

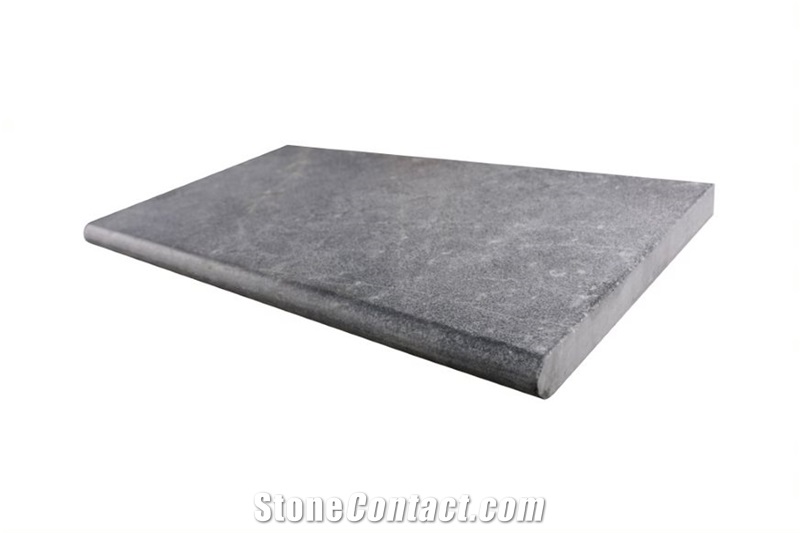

Processed Stone Photos
Components
-

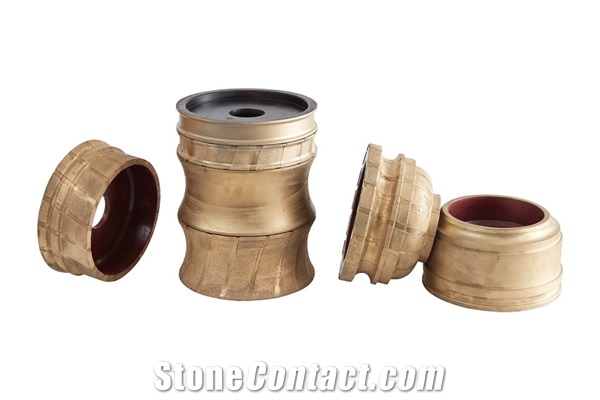

Sockets
¥Payment Required
Consumables
-
Sockets
