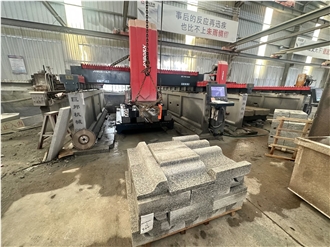

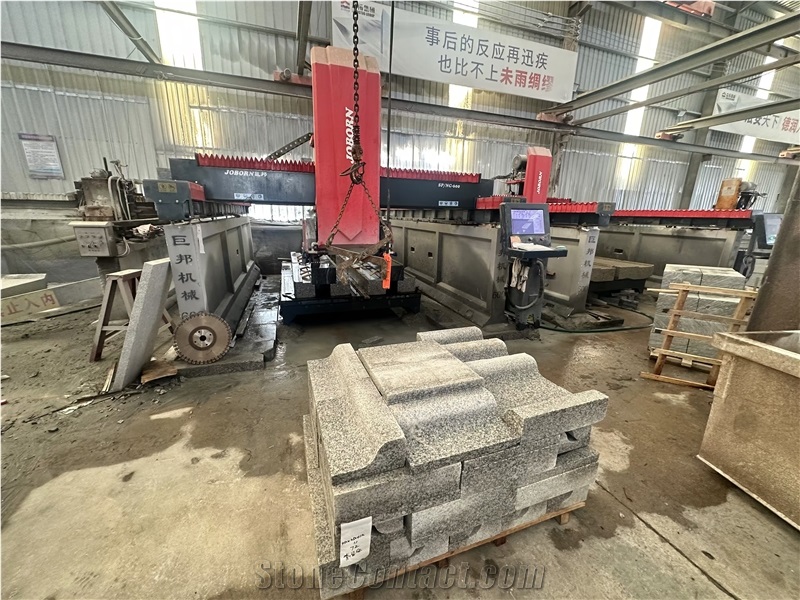

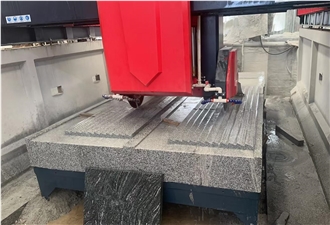

Two Heads Four Blades CNC Bridge Saw Stone Profiling Molding Machine

SP/NC-600Z CNC Bridge Profiling Machine(Longitudinal).This series product adopts CNC computer operating system and adopts servo drive for lifting, left and right.

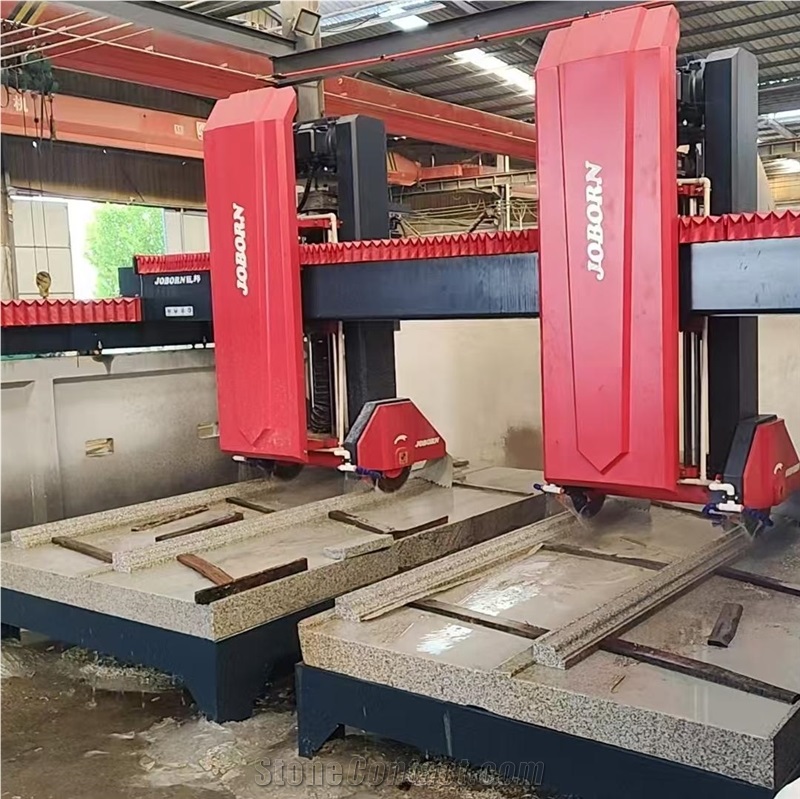

The double beam bridge structure is adopted in the structure, with double saw blades arranged in the left and right, and four guide pillar lifting, which is characterized by high rigidity and high efficiency.

This machine can realize numerical control programming and CAD import, and can choose different processing methods such as rough imitation, fine spinning, fine grinding, etc. to realize bottoming free processing and meet the processing requirements of various stone lines, square railings, etc.

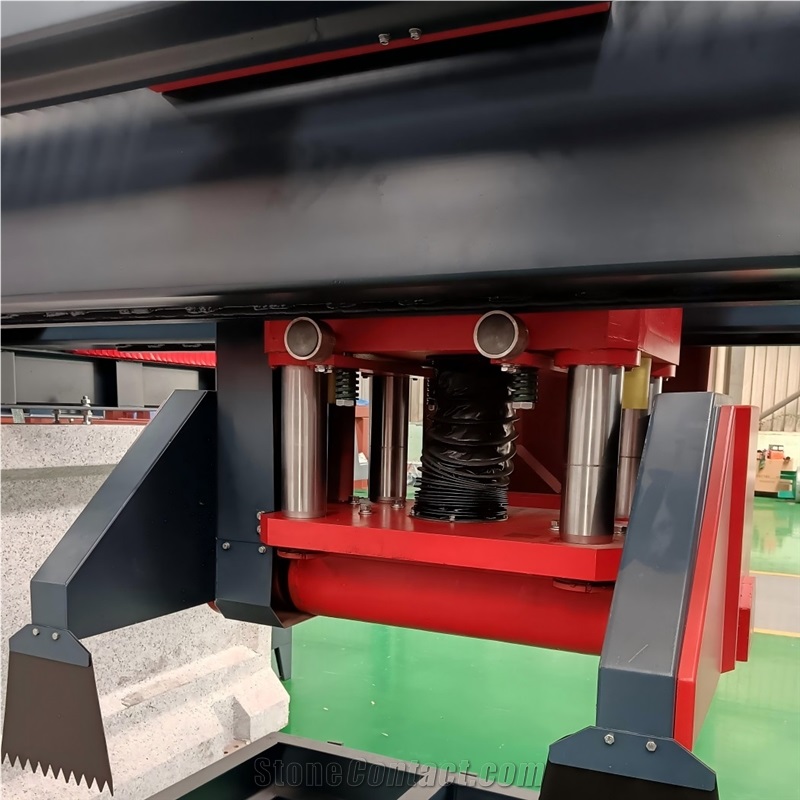

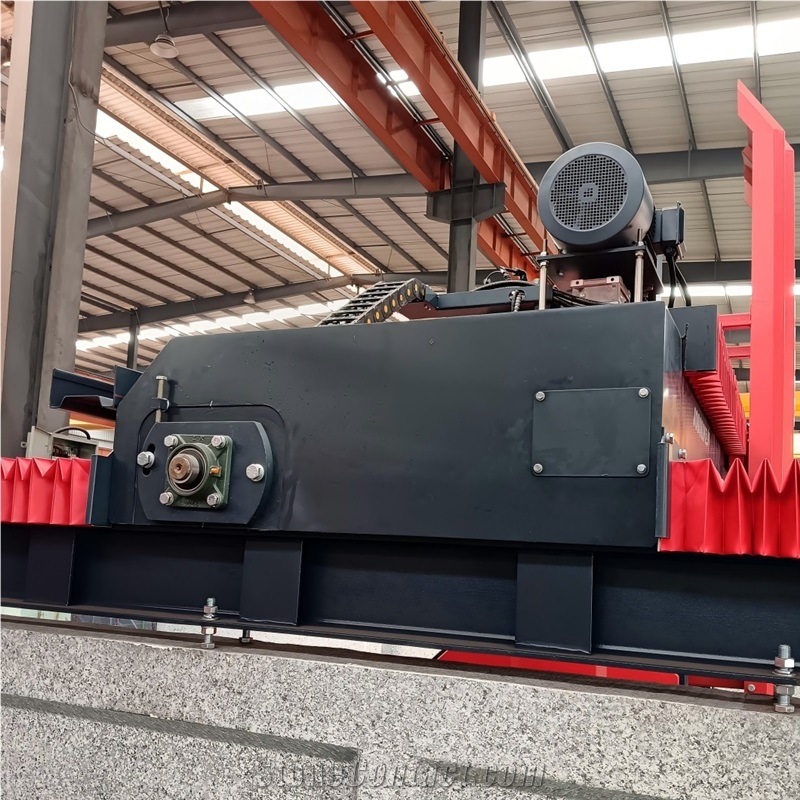

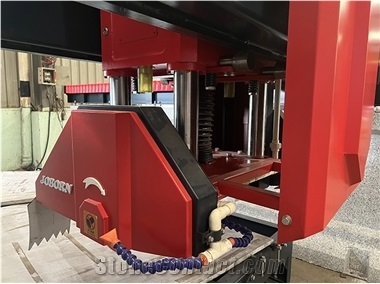

Mechanical part: The beam is double beam, made of high quality carbon steel plate and profile welding, high stability is not easy to deformation, the main engine is four guide column lifting, 80mm diameter of solid chrome plated guide column, ductile cast iron wear-resistant guide sleeve, four guide columns are oil-soaked lubrication, the upper and lower plates are made of whole casting, the lifting adopts screw nut structure, lifting stroke of 430mm, Worktable 3200*1800mm, worktable frame adopts national standard 180mm channel steel, bearing in the main shaft box adopts the structure arrangement of front 2+ back 2, the maximum diameter of the main machine saw blade is 600mm, double tool copying, double blade spacing 900mm;

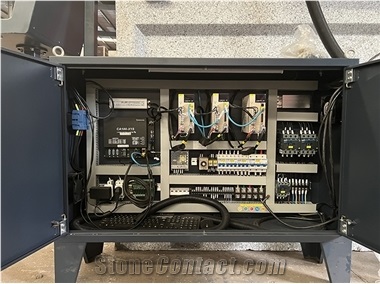

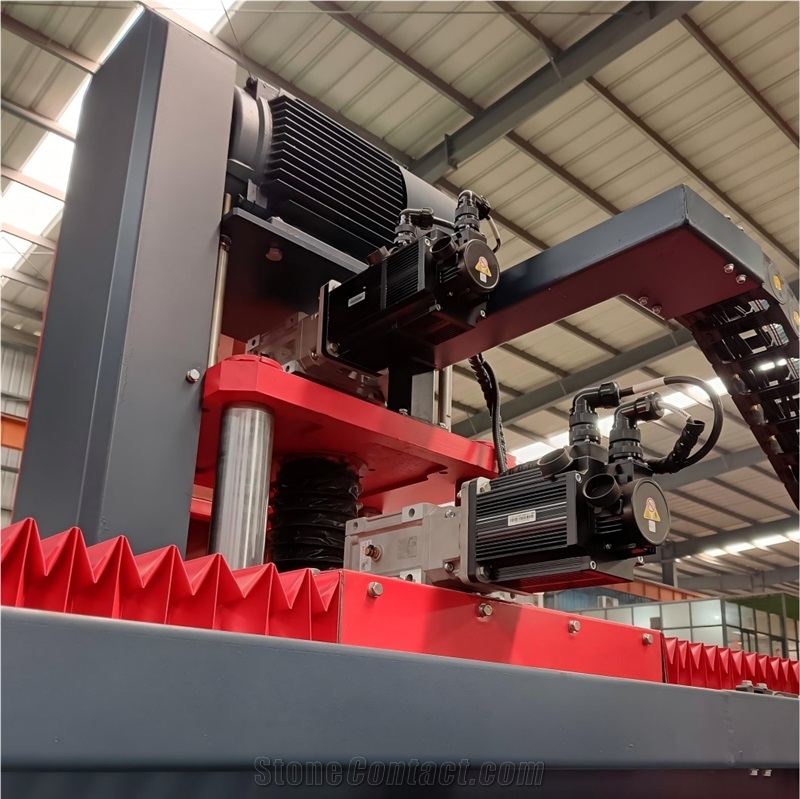

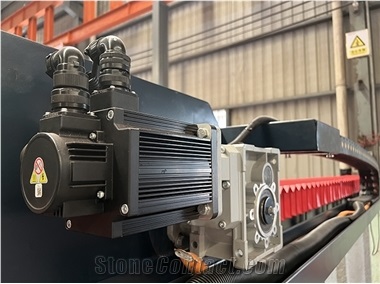

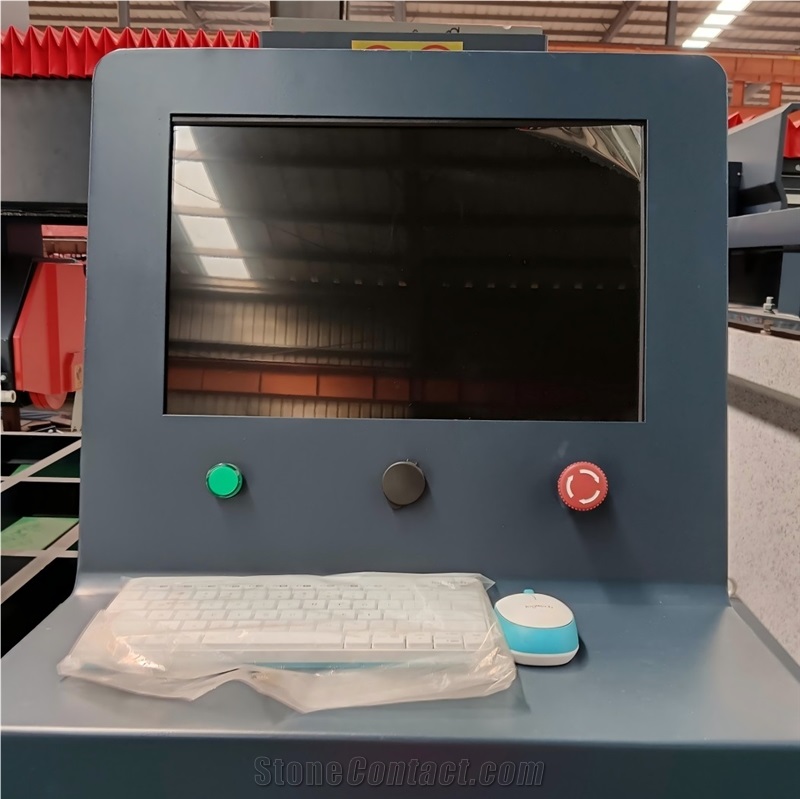

Electrical part: CNC computer operating system, lifting, vertical movement, horizontal movement are driven by servo, the main motor 18.5kW-4P
