Single Diamond Wire Saw Marble Block Squaring

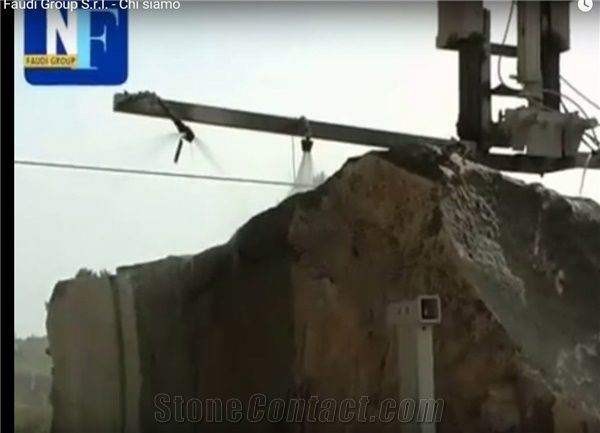

Marble - Block squaring Also for the processing work in "block squaring" the diamond wire of Faudi Group is obtaining the due success. The possibility of reducing the costs of cut and times of work has determined the complete abandon of the traditional techniques. Sintered Code ø Beads Material Speed machine NF11ASSPLUS 11,2 mm Limestone 40 m/s NF10,5ASSPLUS 10,5 mm Limestone 40 m/s NF8ASSPLUS 8,7 mm Limestone 40 m/s NF7/11ASSPLUS/3 11,2 mm Crystalline Marbles 35-40 m/s NF7/10,5ASSPLUS/3 10,5 mm Crystalline Marbles 35-40 m/s NF7/8ASSPLUS/3 8,7 mm Crystalline Marbles 35-40 m/s NF6/11ASSPLUS/4 11,4 mm Rocks* 30-40 m/s NF6/10,5ASSPLUS/4 10,5 mm Rocks* 30-40 m/s NF6/8ASSPLUS/4 8,7 mm Rocks* 30-40 m/s *Rocks: Sandstones, Schist and Slates, Gneiss, Porphyry, Basalt ,Trachite, Peperino and Piroclastic rocks, Limestone and Tuff Limestones, Conglomerates Electroplated Code ø Beads Material Speed machine DNFPLUS11 11 mm Marble 40 m/s DNFPLUS10 10 mm Marble 40 m/s DNFPLUS8 8 mm Marble 40 m/s Special electroplated "EDS" The diamond wire "EDS" is the result of a new technology that stabilises the point of union between the electroplated and sintered, keeping the characteristics of high cutting speed of the first and the high performances, in terms of life, of the second one. Code ø Beads Material Speed machine EDSPLUS11 11 mm Marble 40 m/s EDSPLUS10 10 mm Marble 40 m/s EDSPLUS8 8 mm Marble 40 m/s EDS9,5 9,5 mm Marble 35-40 m/s Assembly Plasticized and/or with spring reinforcement: 36 beads/ML 35 beads/ML 30 beads/ML With springs mechanical fixing: 30 beads/ML 29 beads/ML 28 beads/ML Rubber: 35 beads/ML Open Loop Metal joint of 1 piece Screw Joint of 2 pieces Screw Joint of 3 pieces Closed Loop (without point of junction) Sintered diamond Joint of 1 and 2 pieces
