BWT-3500 Block Dressing Machine
FOB Price:$60000-70000
Type:
Stone Factory MachinesStone Block Cutting MachinesSingle Wire Block Squaring Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
35 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Remote troubleshooting
Trade Terms
Port:
XIAMEN- China
Delivery Details: FOB,CFR,CIF,EXW,Express Delivery
Payment :
Supplier
Eatablished :Sep 10,2018
Main Product:
Stone Machine, Cnc Machine, Cutting Machine, Polishiing Machine, Cutting Disc, Polishing Pad|
Machinery Function Features

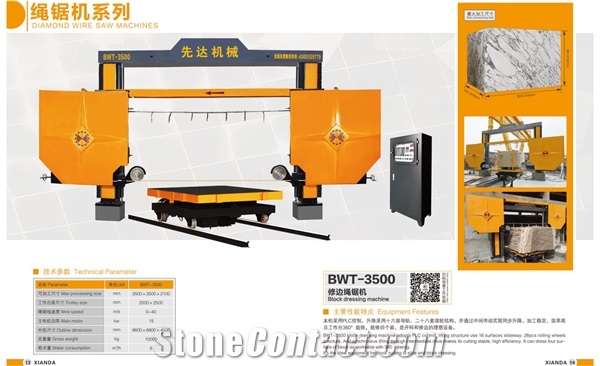

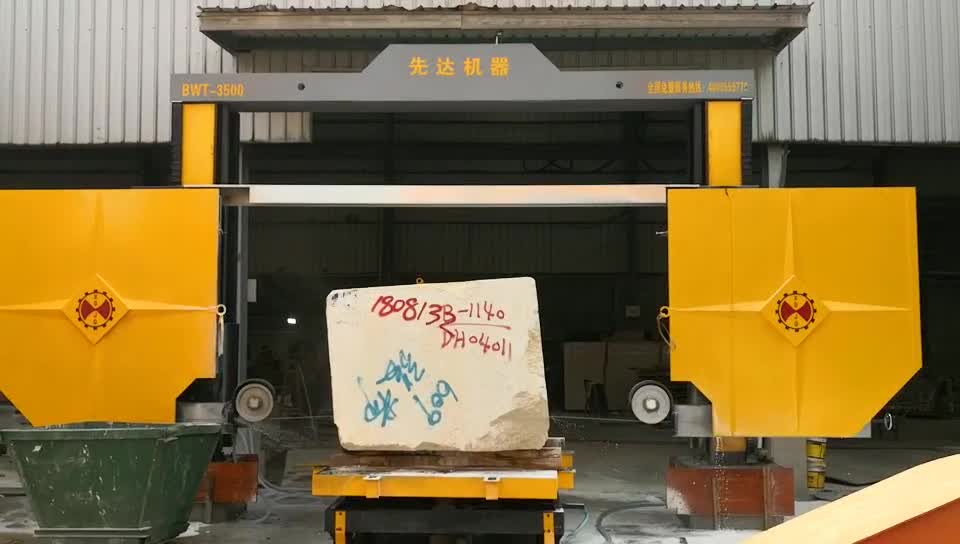

BWT-3500 Block Dressing Machine adopts PLC control. With stable cutting, used to trim the six surfaces of the stone block, also can cut the block to slab, which is the ideal equipment for cutting the block, and trimming the stone block. The special design for 360°worktable will fulfil your need, this machine is able to compatible with the CNC system, model CNC-3500. Once changed, CNC-3500 will have a multi-function with profiling, squaring, trimming and cutting.
Technical Data
Parameters |
Unit |
BWT-3500 |
Worktable load capacity |
T |
50 |
Block max. cutting width |
mm |
3500 |
Block max. cutting height |
mm |
2100 |
Diamond bead maximum diameter |
mm |
11 |
Machine Width (W) |
mm |
8500 |
Main motor power |
kw |
15 |
Approximative Weight |
Kg |
11000 |
Diamond wire length |
mm |
20.6 |

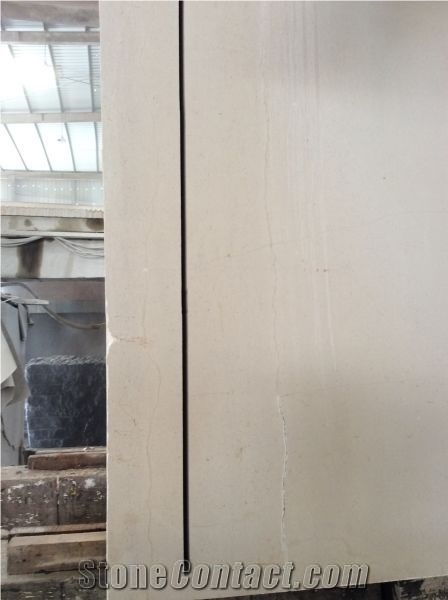

Processed Stone Photos
Components
Consumables
