Underground Chain Saw Machine Mod. SV-C 50

Name: Underground Chain Saw Machine Mod. SV-C 50
Brand: Fantini Sud SPA
SKU: 3153
Price: 10000 USD
Availability: InStock

FOB Price:

Type: Stone Quarry MachinesStone Chain Saw MachinesTunnel Chain Saw Machines

Usage: Marble, Limestone, Quartzite

After-Sale

Warranty:12 Months

Install and Guarantee:Customer pay for installation, Remote guidance installation

Maintenance:Remote troubleshooting

Supplier

Fantini Sud SPA

Fantini

Italy

Eatablished :Dec 31,1913

Main Product:

Quarry Chain Saw, Tunnel Chain Saw Machines, Squaring Chain Saw Machine, Bank Chain Saw Machines|

Contact supplier

Start Order

You may also like

Tunnel Mining Chain Saws Series

Chain Saw For Underground Mines - Tunnel Chain Saw Machine

Benetti Tunnel Jet Belt 940 Diamond Belt Chain Saw Machine

Underground Chain Saw Machine Mod. Gu.50-R-SC/T

STANDISH DOUBLE BAR HORIZONTAL SAW- Tunnel Chain Saw Machine

Product Detail
Company Profile

Overview

Machinery Function Features

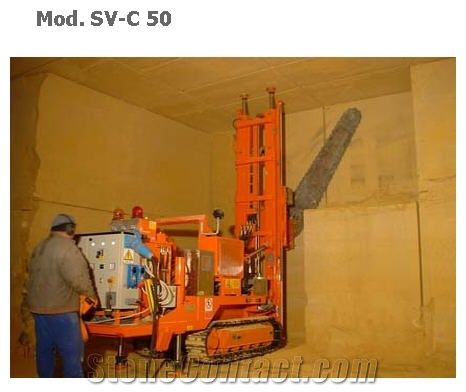

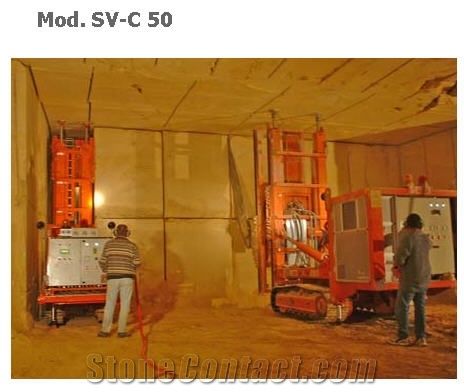

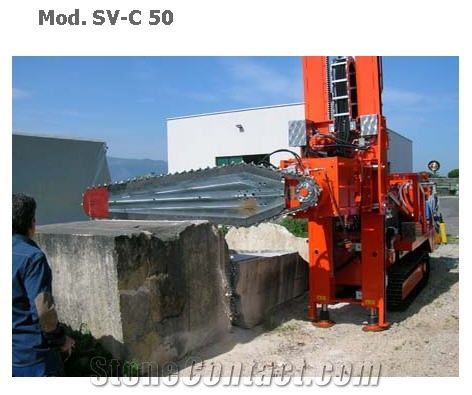

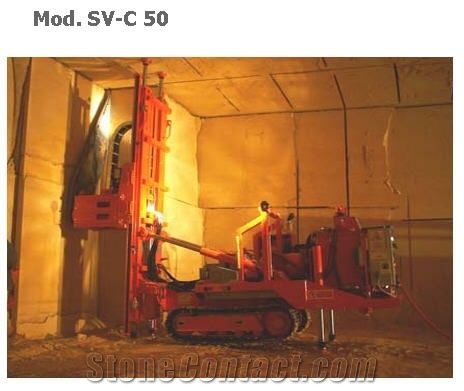

UNDERGROUND MACHINE Mod. SV-C 50 Special chain saw machine for back cut of blocks in the underground quarry. Total power 30 KW Hidrostatic transmission with variable speed pump Weight Kg. 8.000 Useful cut up to 1.60 mt (on the right side as well as on the left side) Hydraulic oil tank capacity Lt. 150 Chain rotation speed from 0,1 to 0,7 mt./sec. Arm cutting speed rate up to 15 cm/min. Grease capacity up to 500gr/h Noise level rate: 85 decibel Max speed on tracks 1,5 km/h Chain saw dimensions: L: 4.600 mm La: 1.300 mm

Technical Data

Parameters	Unit	Mod. SV-C 50
Chain rotation speed	m/s	0,1 to 0,7
Total installed power	kw	30
Grease tank capacity	dm3	500gr/h
Effective max. cutting depth	m	1.6
Weight	Kg	8000
Cutting speed	cm/min	15
Movement speed on tracks/Crawler speed	km/h	1,5
Rated noise level	dB	85
Hydraulic oil tank capacity	L	150
Overall machine length	mm	4600
