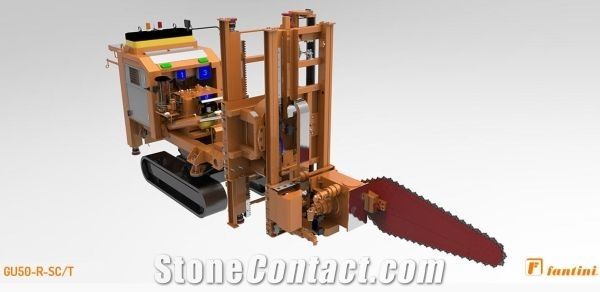

Chain Saw Model GU50-R-SC/T Sawmill Machine for Tunnels
FOB Price:
Type:
Stone Quarry MachinesStone Chain Saw MachinesTunnel Chain Saw Machines
Usage:
Marble, Limestone, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Customer pay for installation
Maintenance:Online software upgrade
Supplier
Eatablished :Dec 31,1913
Main Product:
Quarry Chain Saw, Tunnel Chain Saw Machines, Squaring Chain Saw Machine, Bank Chain Saw Machines|
Machinery Function Features
Chain Saw Model GU50-SC is a compact version for tunnel extraction work. By setting the cutting depth in automatic mode the machine makes vertical and horizontal cuts against the tunnel face.
This is self-propelled on caterpillar tracks and completely autonomous in movement. Only one operator is sufficient to operate the machine. This model can run cuts up to 1.7 metres deep.
Technical Specifications
Total installed power 56 KW
Electrical power supply 400V/50 Hz
Machine weight Kg. 16,000
Hydraulic oil tank capacity 300 litres
Chain rotation speed from 0.1 to 1.7 m/sec.
Blade feed rate: up to 20 cm/min.
Useful cutting depth: up to 2.0 metres
Operating noise level: 85 decibels
Movement speed on tracks: 1 Km/h max.
Technical characteristics may be subject to variations
Technical Data
Parameters |
Unit |
GU50-SC |
Total installed power |
kW |
56 |
Cutting Speed-Work travel speed |
cm/min |
up to 20 |
Electric supply |
Volts |
400 |
Rated noise level |
dB |
85 |
Weight |
Kg |
16000 |
Chain rotation speed |
mt/sec. |
0.1 to 1.7 |
Cutting Width |
mm |
38 |
Movement speed on tracks/Crawler speed |
km/hr |
1 |
Effective max. cutting depth |
mt |
up to 2.0 |
Hydraulic oil tank capacity |
litre |
300 |
