Two-Speed Column Arm Polishing Machine
FOB Price:
Type:
Stone Factory MachinesStone Surface Processing Machines Arm Polishing Machine
Usage:
Granite, Marble, Limestone, Onyx, Quartzite, Sandstone, Travertine
After-Sale
Warranty:12 Months
Install and Guarantee:Remote guidance installation, Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Machinery Function Features
Description:

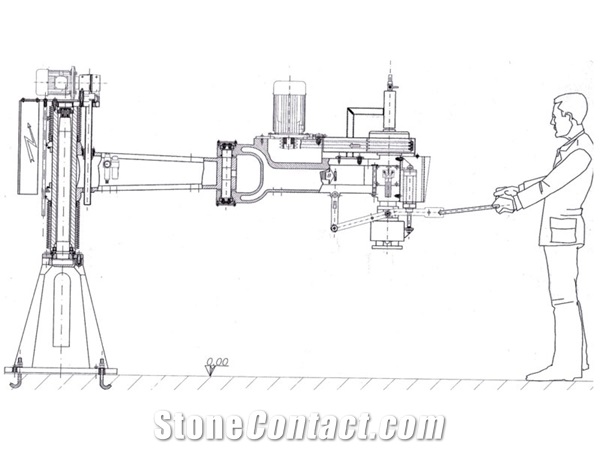

ARM: Two-speed column polishing machine with electrically-operated raising and lowering. System with pneumatic piston and pressure adjustment for polishing marble and granite, or for brushing or rotary bush hammering with plate.
SPECIFICATIONS
extremely thick cast iron base to guarantee necessary rigidity and resistance to potential vibrations
extremely thick hardened and tempered steel column to guarantee precision movement, protected by bellows cover
rear arm connected to the column on one side and to the other arm, by way of a hinge, on the other side; it is raised or lowered by way of a lifting screw coupled to a safety nut attached to it; the sliding column can also be adjusted
front arm with function of supporting the spindle and its transmission
manual pump located on front-left side to lubricate sleeve and spindle

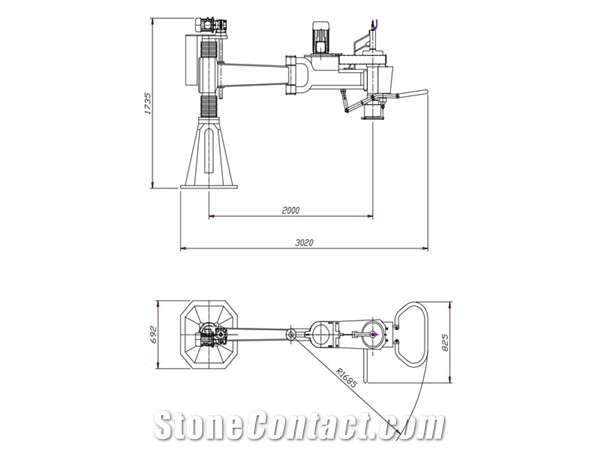

Technical Data
Parameters |
Unit |
Two-Speed Column |
Machine overall length |
mm |
2000- 3020 |
Machine overall width |
mm |
692/825 |
Spindle lifting cylinder stroke |
mm |
100 |
Minimum processable thickness |
mm |
140 |
Max. processable length |
mm |
4000 |
Lifting stroke |
mm |
300 |
Spindle motor power |
kw |
4.5/5.5 |
Spindle revs |
r/min |
500/1000 |
Approx. Weight |
Kg |
740 |
Sound pressure level |
dB |
80-90 |
Machine overall height |
mm |
1735 |
Diameter of plate |
mm |
175 |
Maximum radius |
mm |
2000 |
Max. processable width |
mm |
3500 |
