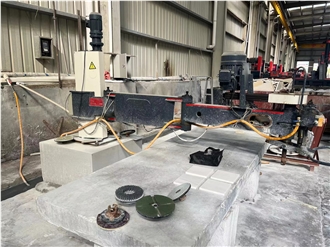

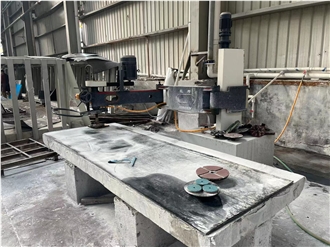

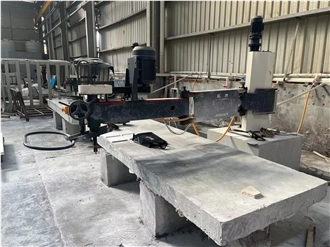

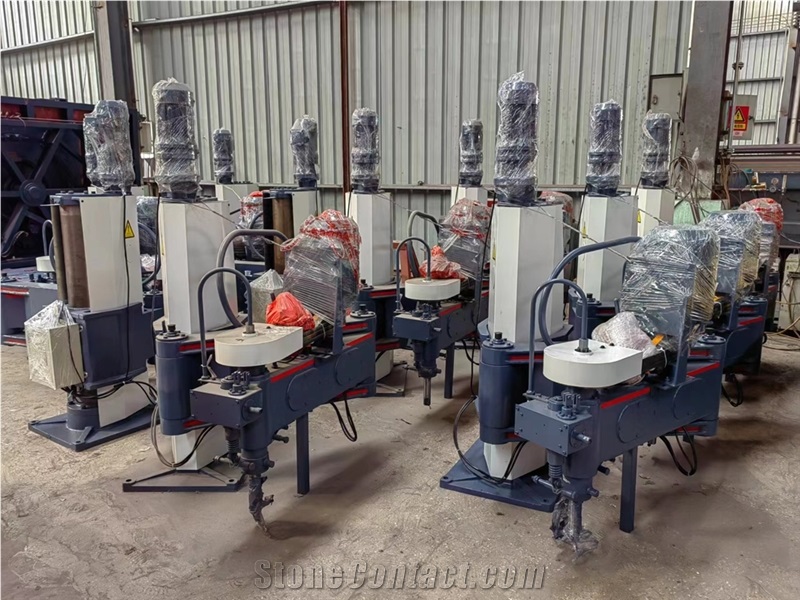

Joborn Manual Polishing Machine SF-2500/3000
FOB Price:$2800-3300
Type:
Stone Factory MachinesStone Surface Processing Machines Arm Polishing Machine
Usage:
Granite, Marble, Limestone, Slate, Onyx, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
15 days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance:Online software upgrade, Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Jul 28,2015
Main Product:
Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|
Machinery Function Features
This machine uses round column as its guide slip surface for steady automatic lifting up and down. The machine is applicable to plane grinding and polishing of slabs with greatly various thickness, tombstones, and stone with design. The worktable can be selected for grinding crafts camber inside and outside.
Technical Data
Parameters |
Unit |
SF-2500 |
SF-3000 |
Max. lifting stroke |
mm |
470 |
470 |
Cooling water requirement |
30 |
1 |
1 |
Machine overall height |
mm |
3200 |
3800 |
Power of single polishing head |
7 |
5.5 |
5.5 |
Machine overall length |
mm |
1800 |
1800 |
Slabs max. processable length |
4 |
2500 |
3000 |
Slabs max. processable width |
4 |
800 |
1000 |
Sound pressure level |
dB |
80-90 |
80-90 |
Slabs max. processable thickness |
4 |
80 |
80 |
Machine overall width |
mm |
1650 |
1650 |
Max. spindle lifting stroke |
mm |
80 |
80 |
Slabs min. processable thickness |
4 |
10 |
10 |
Standard voltage |
Volt |
380 |
380 |
Installed total power |
7 |
6 |
6 |
Approx. Weight |
Kg |
750 |
800 |
Number of polishing head |
73 |
1 |
1 |
Software
Control by Manual
Work Example
Grinding rotation length 2500mm/3000mm, using screw nut structure for electric lifting, SF-2500 grinding plate size: 2500*800mm, SF-3000 grinding plate size 3000*1000mm, the main motor is 5.5kW-4P; 7 grinding heads are standard and optional anchor bolts/expansion bolts can be installed.

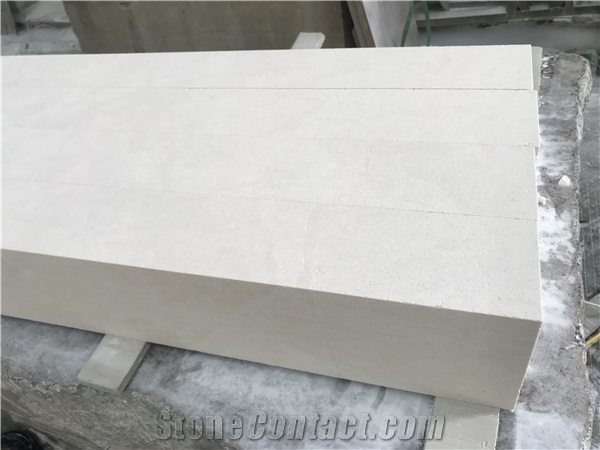

Processed Stone Photos

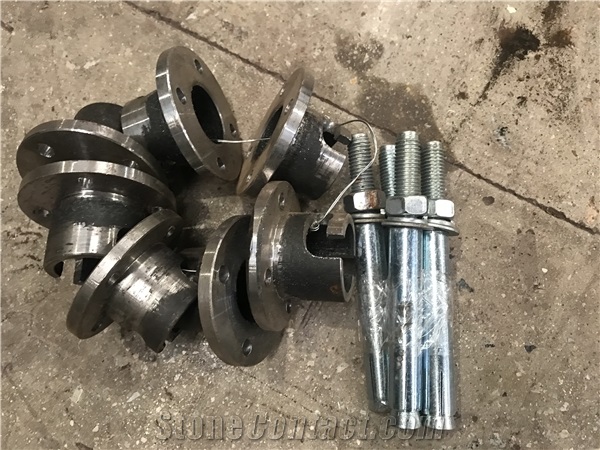

Components

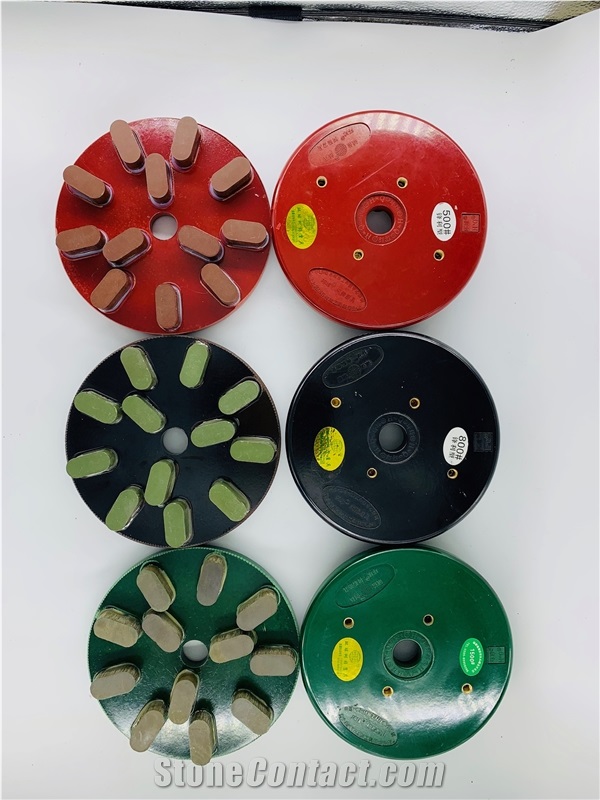

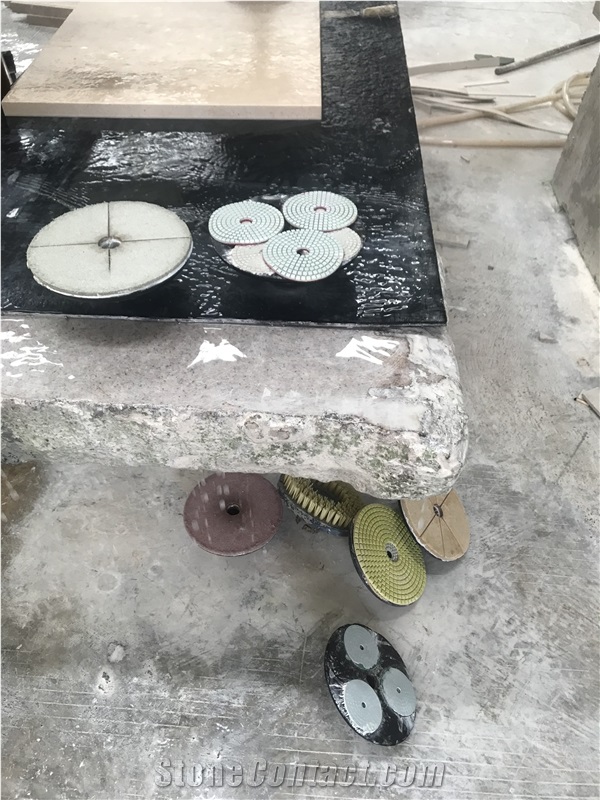

Consumables

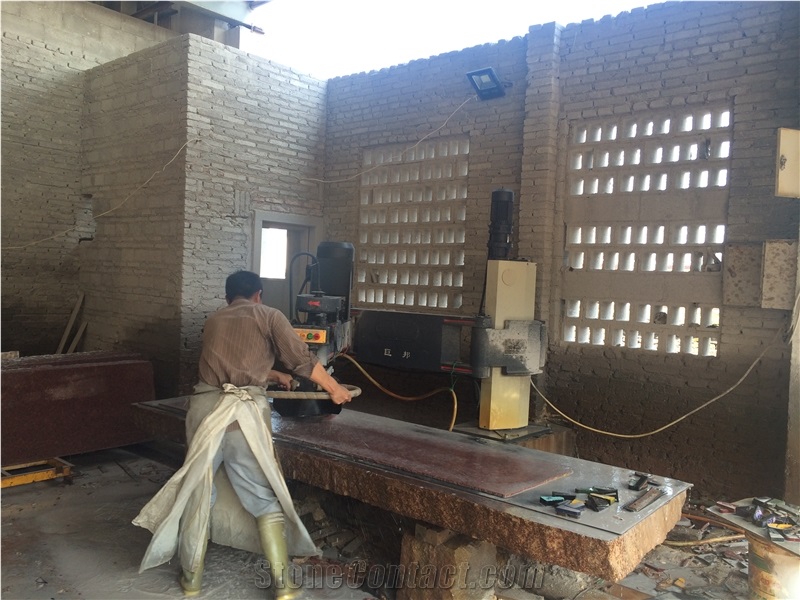

Customer Case
Mr. Zhou
China
2022
China
2022
Video
Install Video

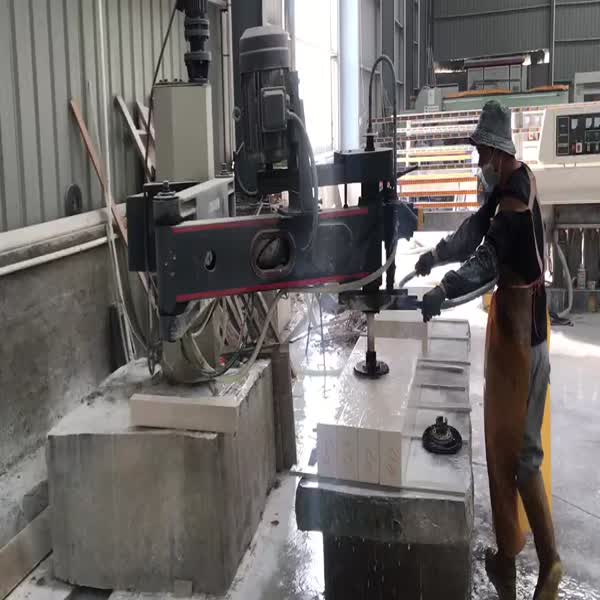

Operation Video
