Manual Arm Polishing Machine Slab Polisher Hand Crank Stone Grinder
FOB Price:$2600-3200
Supplier
Eatablished :Jul 28,2015
Main Product:
Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine|
Parameters |
Unit |
SF-2500 |
SF-3000 |
Water consumption |
m3/h |
1 |
1 |
Max. processable width |
mm |
800 |
1000 |
Spindle lifting cylinder stroke |
mm |
80 |
80 |
Machine overall height |
mm |
1800 |
1800 |
Machine overall length |
mm |
3200 |
3800 |
Spindle motor power |
kw |
5.5 |
5.5 |
Maximum radius |
mm |
2500 |
3000 |
Lifting stroke |
mm |
470 |
470 |
Minimum processable thickness |
mm |
10 |
10 |
Approx. Weight |
Kg |
750 |
800 |
Max. processable length |
mm |
2500 |
3000 |
Machine overall width |
mm |
1650 |
1650 |

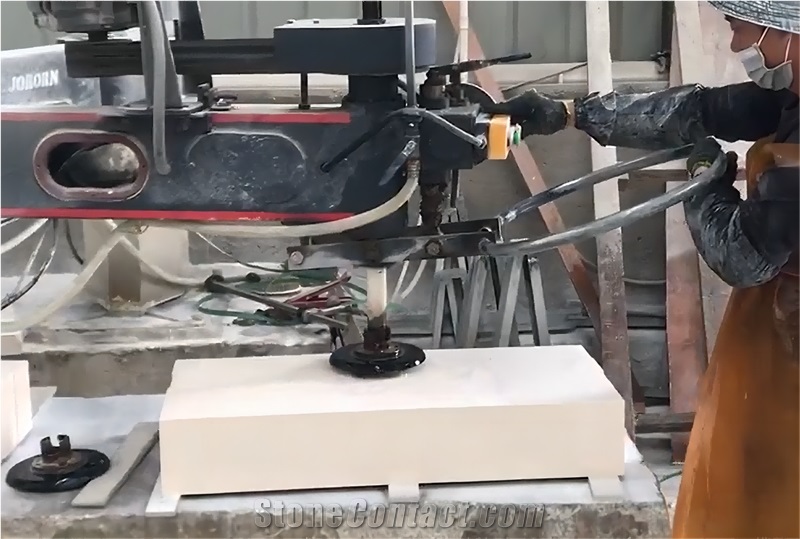

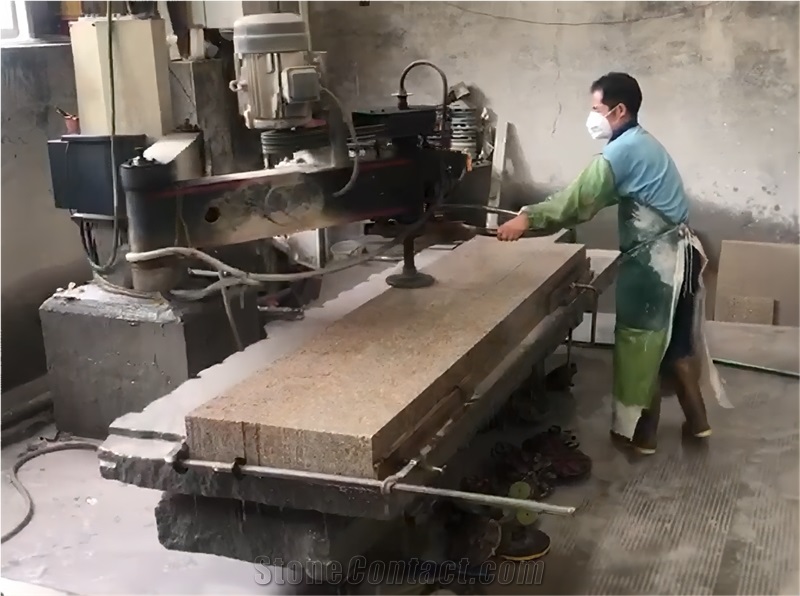

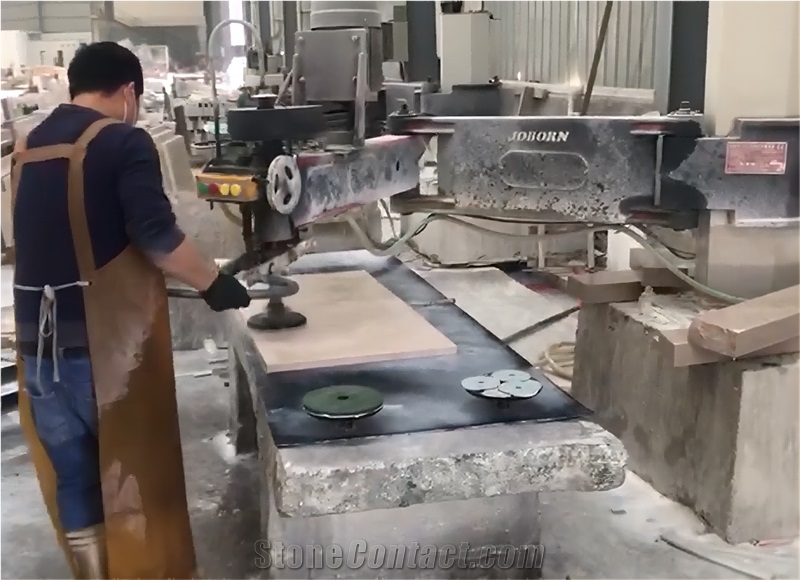

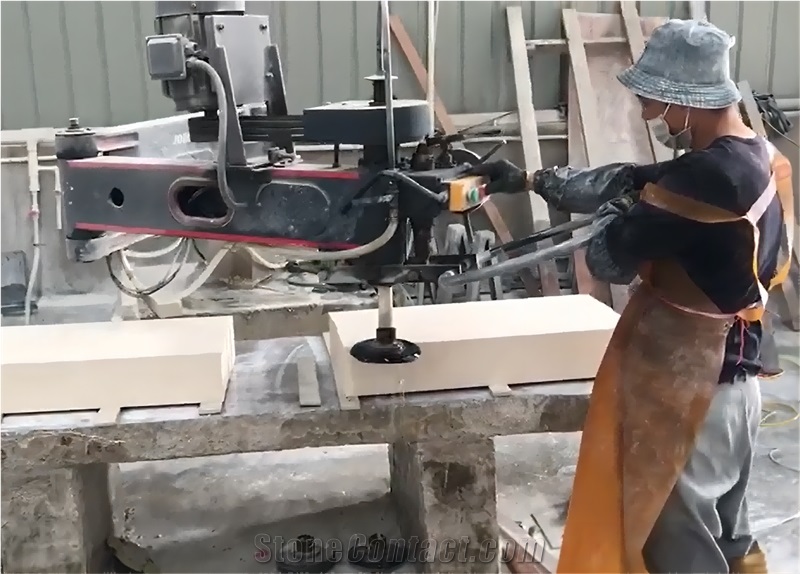

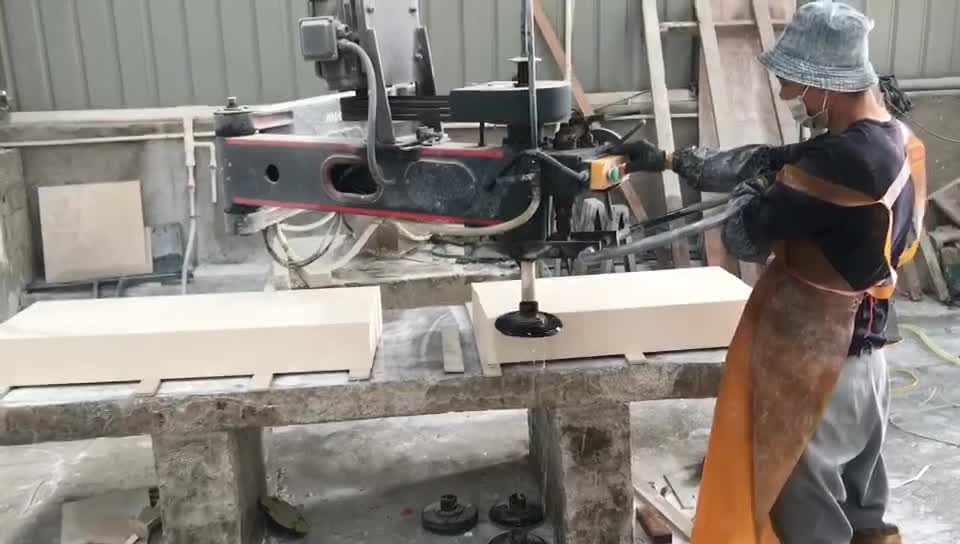

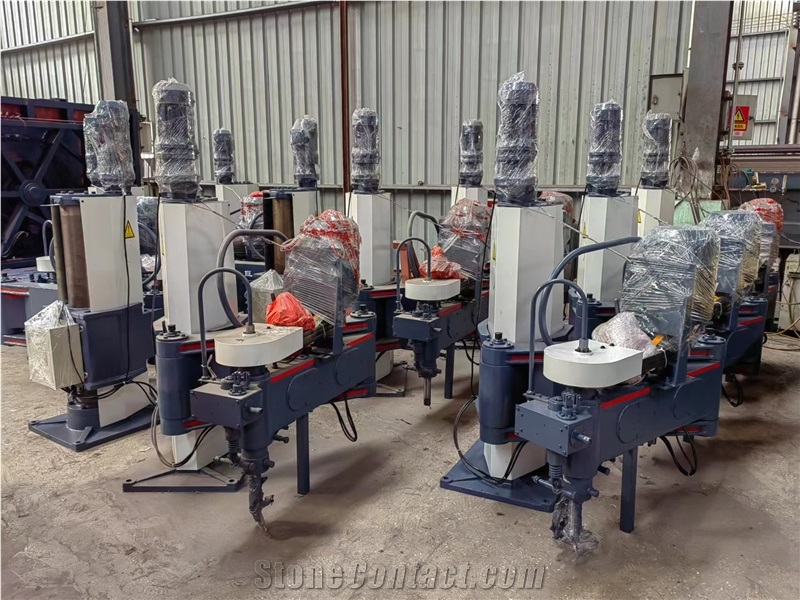

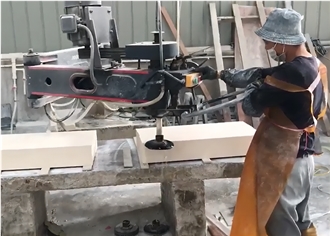

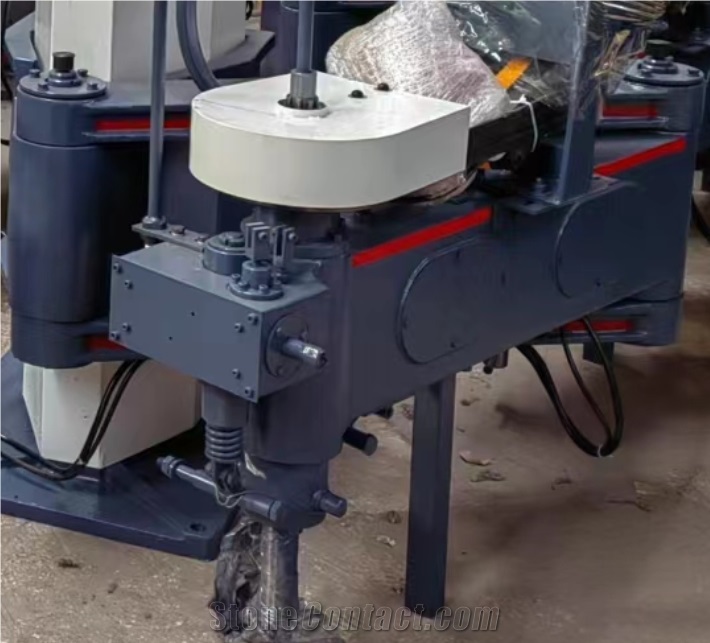

SF-2500/3000 Manual Polishing Machine. This series machine uses round column as its guide slip surface for steady automatic lifting up and down.

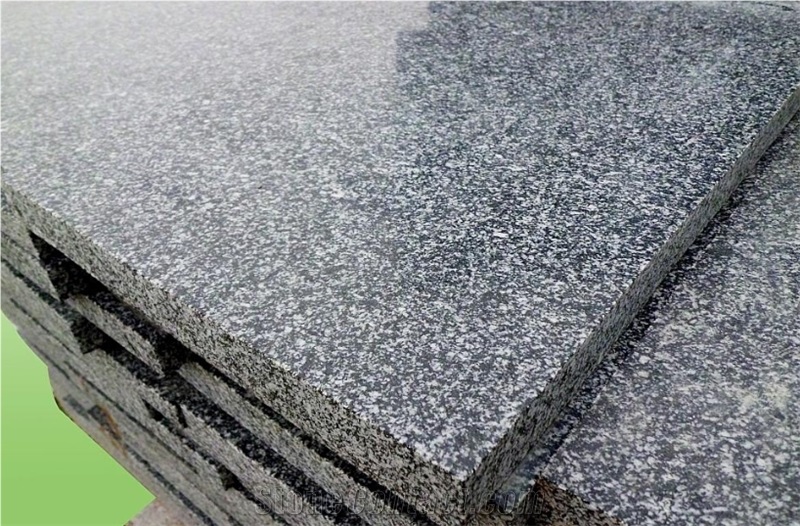

The machine is applicable to plane grinding and polishing of slabs with greatly various thickness, tombstones, and stone with design. The worktable can be selected for grinding crafts camber inside and outside.
Standard instructions:

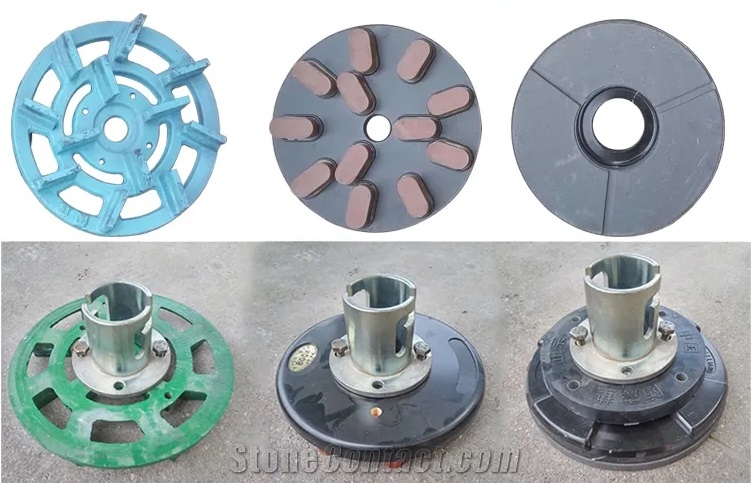

Grinding rotation length 2500mm/3000mm, using screw nut structure for electric lifting, SF-2500 grinding plate size: 2500*800mm, SF-3000 grinding plate size 3000*1000mm, the main motor is 5.5kW-4P; 7 grinding heads are standard and optional anchor bolts/expansion bolts can be installed.
