Electric Small Hydraulic Granite Marble Stone Splitting Machine
FOB Price:$1500-2500
Type:
Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
After-Sale
Lead Time:
15 days
Warranty:6 Months
Install and Guarantee:Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Dec 22,2000
Main Product:
Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|
Machinery Function Features
Mighty C Thin Veneer Stone Splitter
The Mighty C (MC-15) is a portable hydraulic thin veneer splitter designed to split thin veneer
and thin veneer corners,powered by compressed air or small electric hydraulic pump.There are 6 basic parts to the Mighty C: Sleeve, Jam Nut, Bit Holder, Bit, Base and C Frame.
Technical Parameter:
Splitting force:15T
Travelling stroke(max):100mm
Overall size:600*500*1200mm
Power request:
A.By air compressor
Work pressure:0.6-0.7Mpa
Air Consumption:250-350L/min.
B.By electric power pump
2phases,220V/50Hz,0.6KW
oil tank: 3L
working pressure: 20Mpa
Oil flux: 0.6L/min.
Rotation speed: 1600RPM
Advantage:
Increased Productivity
Easy to Maintain
Environmentally Friendly
Eliminates Need for Costly Saw Blades
No Dust From Saw Cutting
No Water Waste
No Saw Blade Waste
Portable - Indoor or Outdoor Use
Technical Data
Parameters |
Unit |
MC-15 |
Machine length (L) |
mm |
600 |
Max. Pressure |
tons |
10 |
Machine height (H) |
mm |
1200 |
Machine width (W) |
mm |
500 |
Flow rate |
L/min |
0.6 |
Oil tank capacity |
L |
3L |

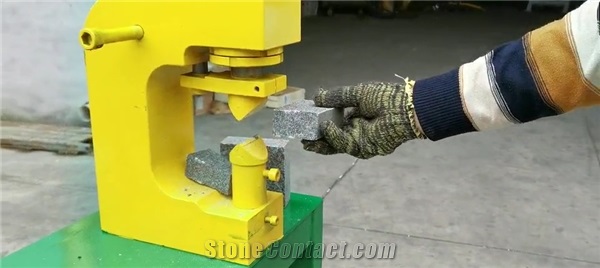

Processed Stone Photos

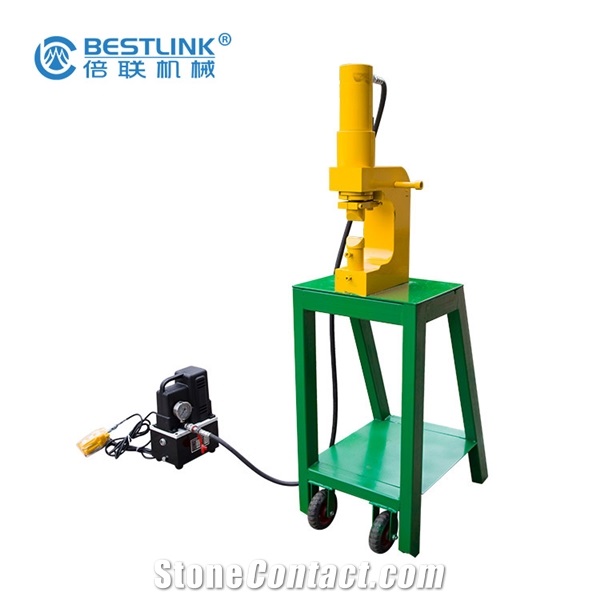

Components
-
Stone Splitter

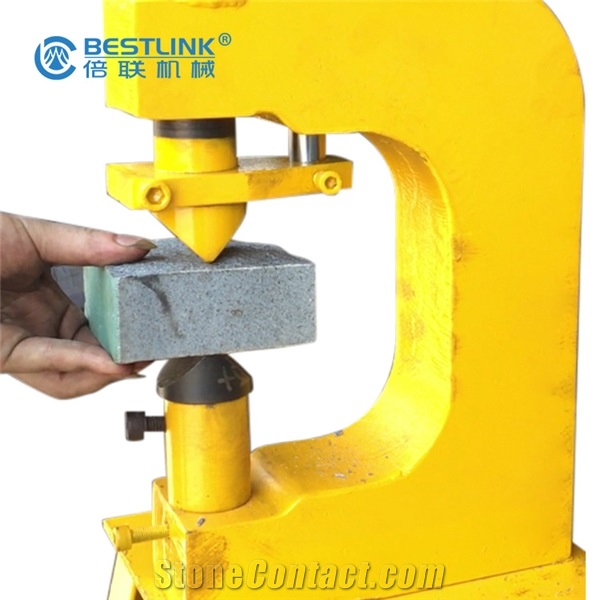

Consumables
