Hydraulic Natural Stone Splitting Machine With Robot Arm
FOB Price:$22000-24000
Type:
Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone, Travertine
After-Sale
Lead Time:
25 Days
Warranty:12 Months
Install and Guarantee:Customer pay for installation, Remote guidance installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Apr 13,2017
Main Product:
Stone Machinery, Stone Cutting Machine, Stone Polishing Machine, Stone Profiling Machine, CNC Bridge Saw, Stone Engraving Machine|
Machinery Function Features
This stone splitting machine adopts advanced robot arm technology, equipped with high-precision floating blades, combined with hydraulic system drive, designed for efficient and precise stone splitting. It can handle stone with a maximum processing height of 50cm, and easily realize the switch between natural and saw cut surface to meet diversified processing needs.

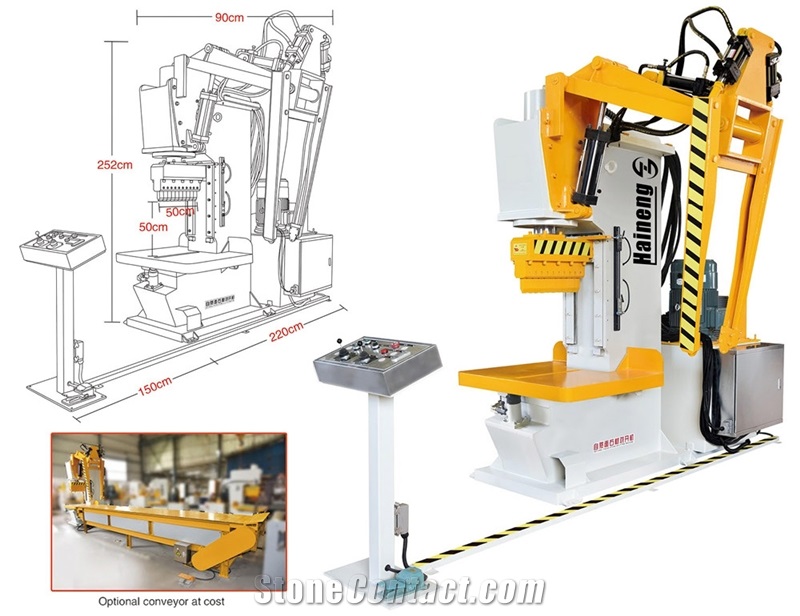

Technical Data
Parameters |
Unit |
DKJ-96H5SB |
Hydraulic oil grade |
46 |
|
Approximate weight |
T |
3.25 |
Main Motor Power |
kw |
15 |
Machine length (L) |
cm |
370 |
Max. working width |
cm |
50 |
Max. working height |
cm |
50 |
Voltage |
V |
380 |
Flow rate |
L/min |
80 |
Output per Hour |
m2/h |
100 |
Blade feeding speed |
cm/s |
15 |
Max. Pressure |
tons |
150T |
Machine height (H) |
cm |
252 |
Oil tank capacity |
L |
340 |
Machine width (W) |
cm |
190 |
Frequency |
Hz |
50 |

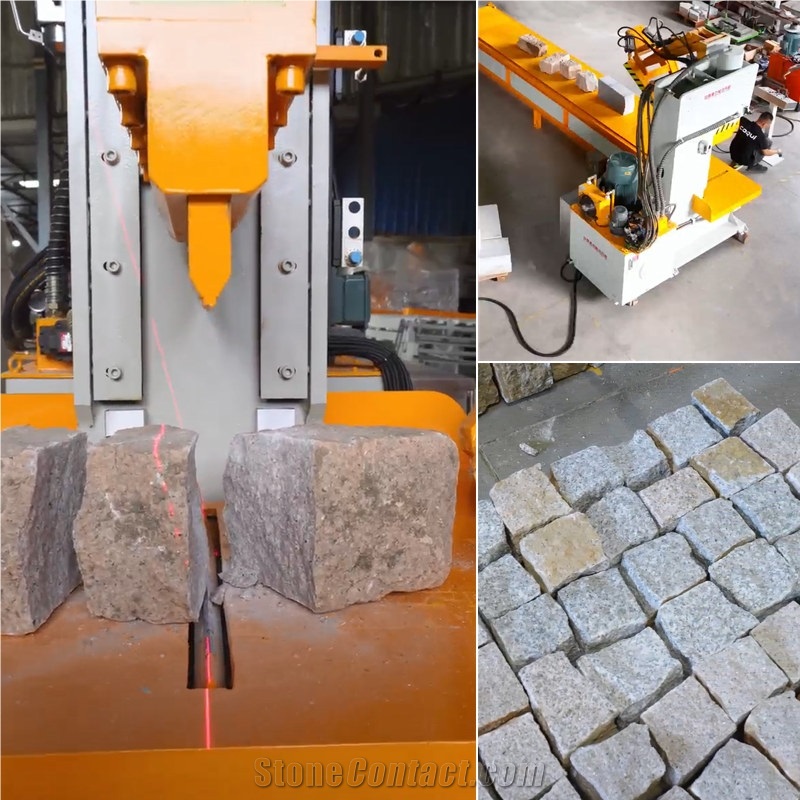

Processed Stone Photos
Components
-
¥Payment Required
Consumables
