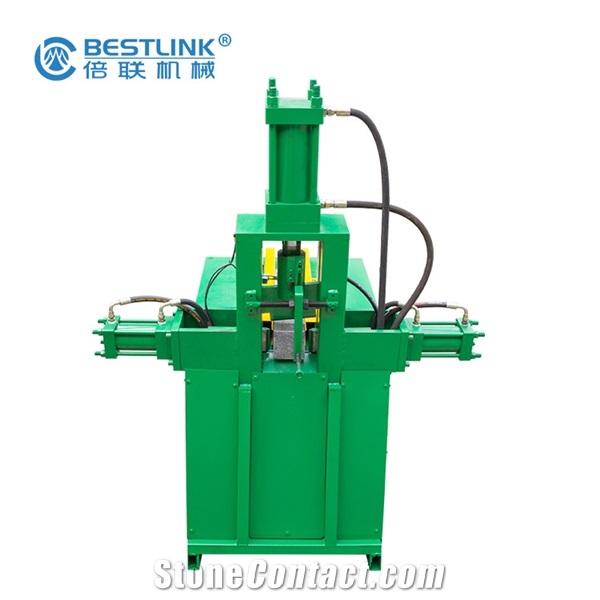

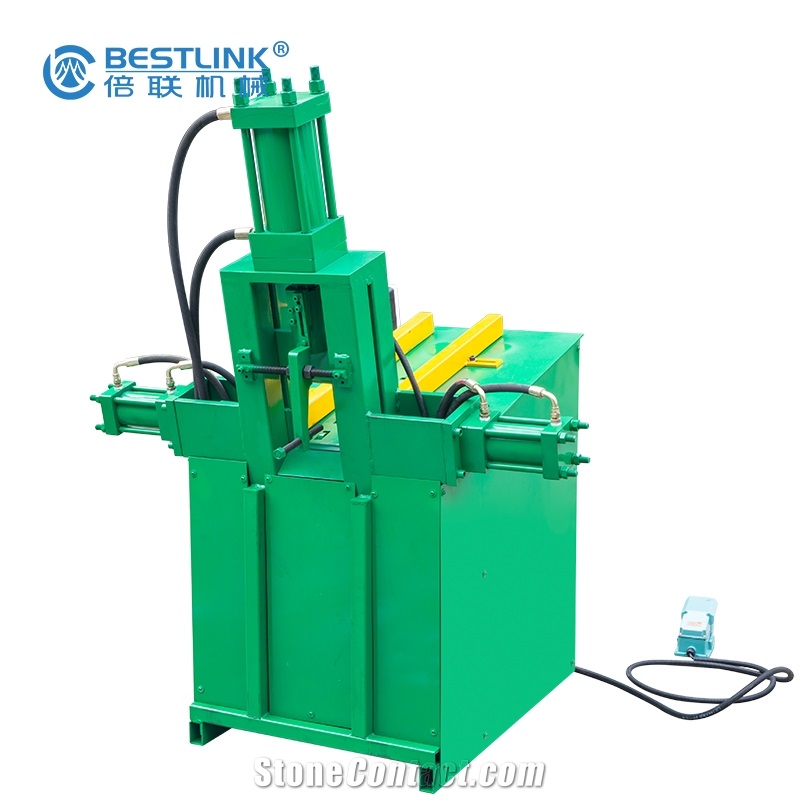

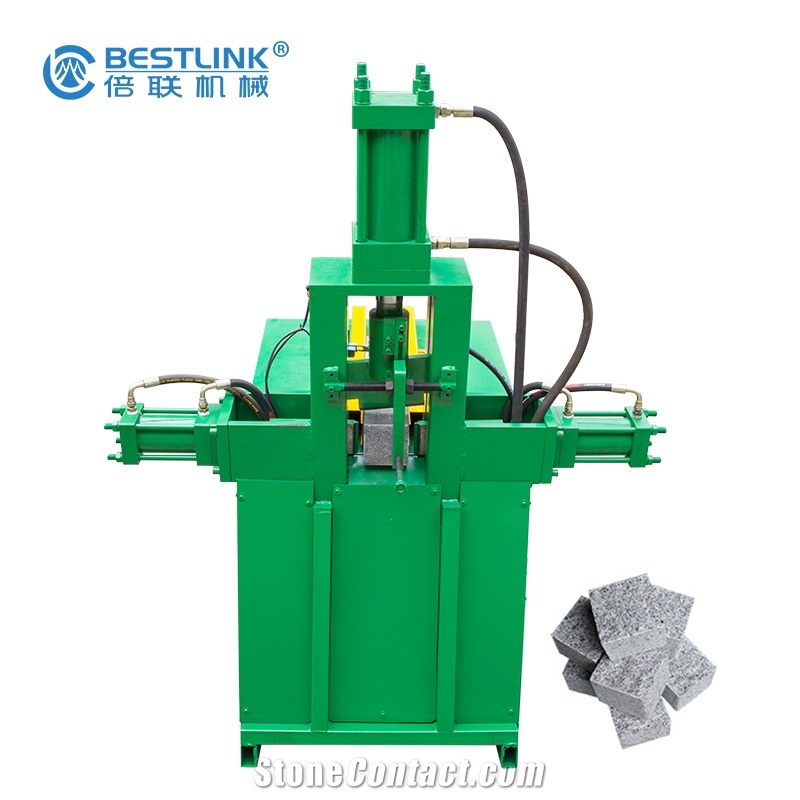

Bestlink Paving Stone Making Machine
FOB Price:$4000-5000
Type:
Stone Factory MachinesStone Tile Cutting MachinesHydraulic Stone Splitting Machine
Usage:
Granite, Marble, Limestone, Slate, Artificial Stone, Basalt, Quartzite, Sandstone
After-Sale
Lead Time:
15 days
Warranty:12 Months
Install and Guarantee:Third-party team installation
Maintenance:Regular guidance & maintenance, Remote troubleshooting
Supplier
Eatablished :Dec 22,2000
Main Product:
Stone Splitting Machine, Stone Cutting Machines, Stone Splitter, Pushing Air Bag, Button Bit Grinder, Dth Hammer Button Bit|
Machinery Function Features
Bestlink Paving Stone Making Machine
Automatic feeding and cutting, work fast, for producing stone brick, stone paver, mosaic paver.
Model No.: CUBE20C
Splitting force (tons): 20
Power supply (kw : 5
Max.splitting width (mm): 150
Max.splitting height (mm): 150
Hydraulic pressure(Mpa): 20
hydraulic oil flux (L/min.): 31
Oil Tank (L): 100
Overall size (mm): 1600*2500*1300
Net weight (kg): 550
Aplication: Stone guilotine,for splitting long stone strips into rustic finish wall stone,bricks, gravity feeding,automatic
Technical Data
Parameters |
Unit |
CUBE20C |
Max. working height |
mm |
150 |
Max. Pressure |
tons |
20 |
Flow rate |
L/min |
31 |
Approximate weight |
Kg |
550 |
Oil tank capacity |
L |
100 |
Max. working width |
mm |
150 |
Machine length (L) |
mm |
1300 |
Hydraulic pressure |
MpA |
20 |
Machine width (W) |
mm |
1600 |
Machine height (H) |
mm |
2500 |
Main Motor Power |
kw |
5 |

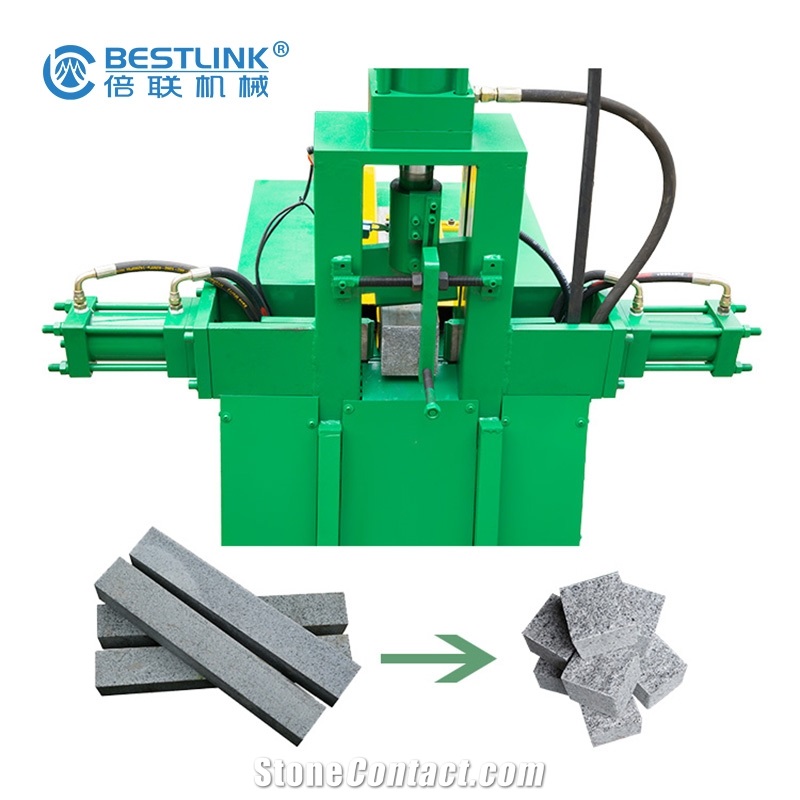

Processed Stone Photos
-
marble

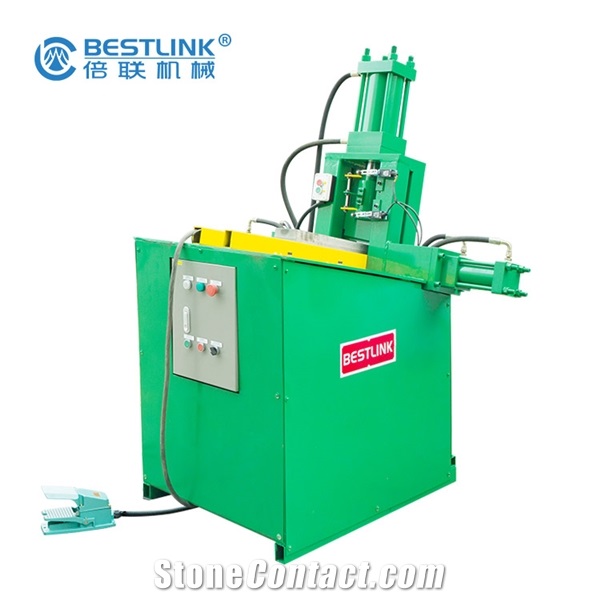

Components
-
motor
Consumables
-
blade
Video

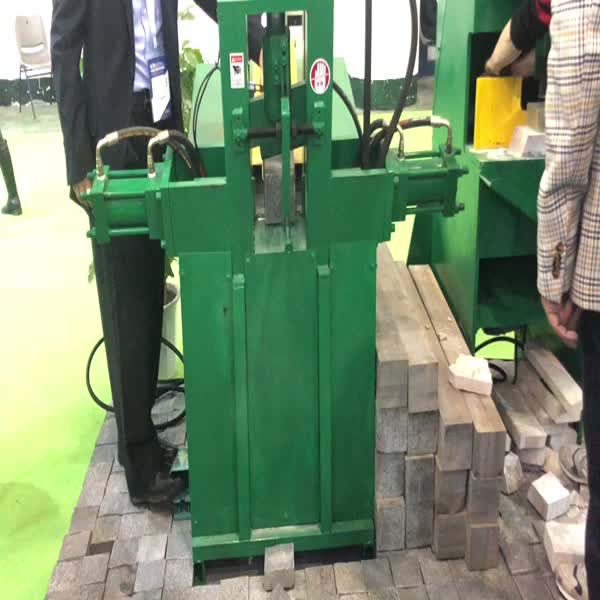

Operation Video
